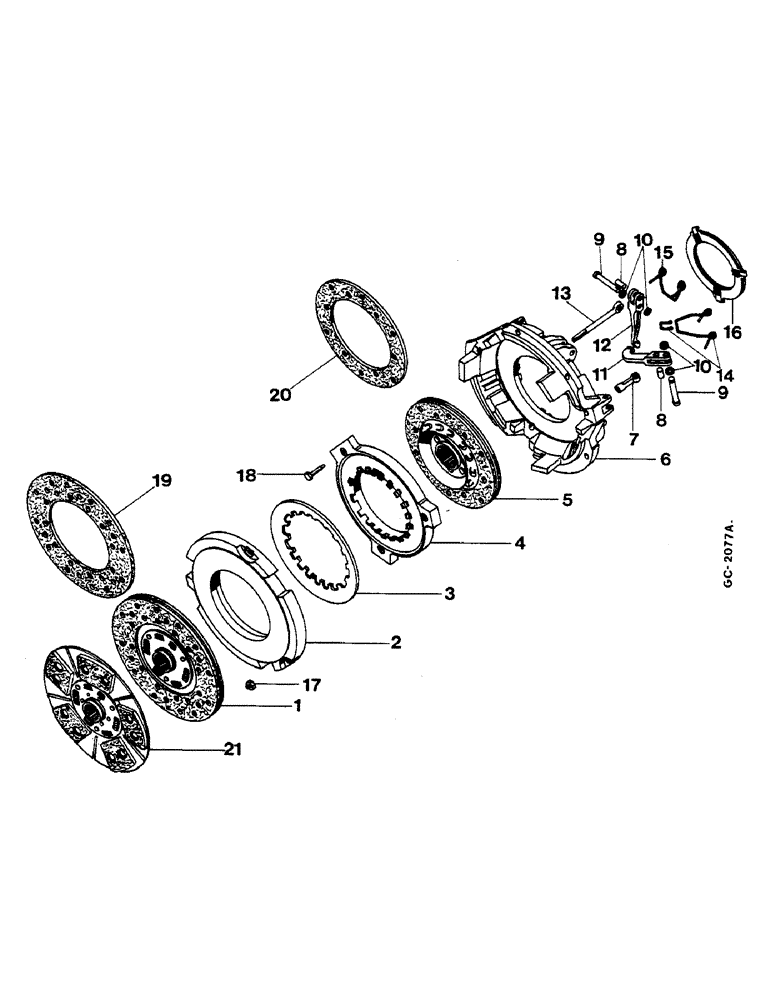

Запчасти Case IH 433 (07-05) - DOUBLE CLUTCH "LUK" (04) - Drive Train

CLUTCH DOUBLE, CONSISTS OF: ITEMS 1- 20, 433: (-131292) E, 533: (-223585) E

1шт.

CLUTCH DOUBLE, CONSISTS OF: ITEMS 2 - 2, ORDER: 3224545R92, 633: (289009) E

1шт.

21237R1

BOLT,Hex, 5/16" - 18 x 1 1/8", Gr 8

6шт.

103320

LOCK WASHER,5/16"

6шт.

1

3216399R91

CLUTCH PLATE

DISC, W/LININGS, ENGINE CLUTCH, 433: (-131292) E, 533: (-223585) E

1шт.

2

3134890R1

PLATE

PRESSURE, ENGINE CLUTCH

1шт.

3

3134895R1

SPRING

BELLEVILLE

1шт.

4

3134888R1

PLATE

PRESSURE, PTO CLUTCH

1шт.

932572R1

LOCK PIN,M4 x 12, Slotted

3шт.

5

3134885R92

CLUTCH & DISC ASSY

CLUTCH, W/LININGS, PTO CLUTCH

1шт.

6

3134876R1

HOUSING

SPARE PART

1шт.

7

3134878R1

YOKE

UNIVERSAL JOINT YOKE LEVER, THRUST

3шт.

8

3134882R1

PIN

6шт.

9

3137551R1

PIN

HEADED

6шт.

107763

COTTER PIN,1/8" x 5/8"

6шт.

10

3146773R1

WASHER

12шт.

11

3217506R1

LEVER

PTO CLUTCH 433 : (122089-) E 533 : (213004-) E 633 : (273310-) E

3шт.

11

3134877R1

LEVER

PTO CLUTCH, 433 : (-122088) E 533 : (-213003) E 633 : (-273309) E

3шт.

12

3134879R1

LEVER

ENGINE CLUTCH

3шт.

13

3058396R4

BOLT

EYE

3шт.

3147610R1

WASHER

3шт.

14

3217505R1

SPRING

SPARE PART RETAINER, 433 : (122089-) E 533 : (213004-) E 633 : (273310-) E

3шт.

14

3134880R11

KIT

SPRING RETAINER, 433 : (-122088) E 533 : (-213003) E 633 : (-273309) E

3шт.

15

3134883R1

RETAINER

SPRING

3шт.

16

3134894R1

RING

RELEASE, 433 : (-122088) E 533 : (-213003) E 633 : (-273309) E

1шт.

17

3146772R2

NUT

ADJUSTING

3шт.

18

3224556R1

BOLT

ADJUSTING

3шт.

933681R1

THIN NUT,Thin, M10 x 1.5, Cl 04

3шт.

19

3134892R1

LINING

ENGINE CLUTCH, 433: (-131292) E, 533: (-223585) E

2шт.

712673R1

RIVET

24шт.

932654R1

RIVET,Flat Hd, M4 x 5

12шт.

3134893R1

RIVET

12шт.

20

3134886R1

LINING

PTO CLUTCH

2шт.

20

3229766R1

LINING

PTO CLUTCH

2шт.

3134887R1

RIVET

12шт.

21

3216397R1

CLUTCH PLATE

DISK, W/LININGS - ENGINE CLUTCH, 633: (289009) E

1шт.
