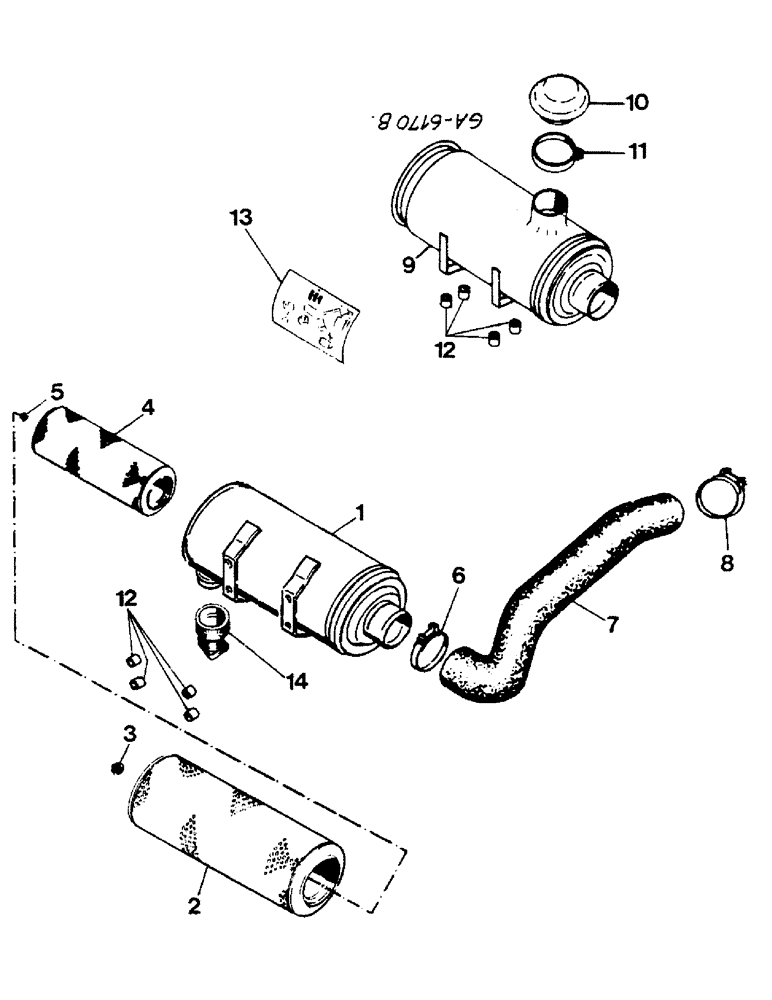

Запчасти Case IH 433 (12-07) - DRY TYPE AIR CLEANER - 433/533/633/733 Power

3146926R92

AIR CLEANER

SINGLE STAGE- 433/533/633 - - CONSISTS OF: ITEMS 1-3

1шт.

Mann + Hummel

1шт.

3216166R92

AIR CLEANER

SINGLE STAGE- 433/533/633 - - CONSISTS OF ITEMS 1-3

1шт.

Lautrette

1шт.

3148136R92

AIR CLEANER

TWO-STAGE CPTE. - 433/533/633 - - CONSISTS OF: ITEMS 1-5

1шт.

Mann + Hummel

1шт.

3229544R91

AIR CLEANER

TWO-STAGE CPTE. DOUBLE - CONSISTS OF: ITEMS 1-5, 14, 733

1шт.

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

4шт.

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

Mann + Hummel

1шт.

1

NSS

NOT SOLD SEPARAT

HOUSING, FILTER

1шт.

2

3146927R1

ELEMENT

1шт.

Mann + Hummel

1шт.

2

3216167R1

FILTER, ELEMENT

ELEMENT, FILTER

1шт.

Lautrette

1шт.

3

3146575R1

NUT

1шт.

Mann + Hummel

1шт.

3

3216168R1

NUT

1шт.

Lautrette

1шт.

4

3148080R1

AIR FILTER

SAFETY

1шт.

Mann + Hummel

1шт.

5

934302R1

THIN NUT,Thin, M16 x 1.5, Cl 05

1шт.

Mann + Hummel

1шт.

6

3220459R1

CLAMP,M60-80, Worm

1шт.

7

3216685R3

INTAKE AIR HOSE,60.00 mm ID x 395.00 mm

1шт.

8

3219245R1

CLAMP,M70-90, Worm

1шт.

9

3148714R92

AIR CLEANER

TWO-STAGE CPTE. - WITH: 2-4

1шт.

86508568

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8

4шт.

43127

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8

4шт.

Mann + Hummel

1шт.

10

3148713R91

CAP

1шт.

Mann + Hummel

1шт.

11

3148715R1

CLAMP

1шт.

931233R1

SCREW,M6 x 20mm, Cl 4.8

SPARE PART BOLT, M6 X 20 MM

1шт.

Q5325

NUT

M6

1шт.

Mann + Hummel

1шт.

12

3217491R1

SPACER

4шт.

13

1091387R1

PRODUCT GRAPHIC

1шт.

14

3147008R1

VALVE

DUST UNLOADER

1шт.

Mann + Hummel

1шт.
