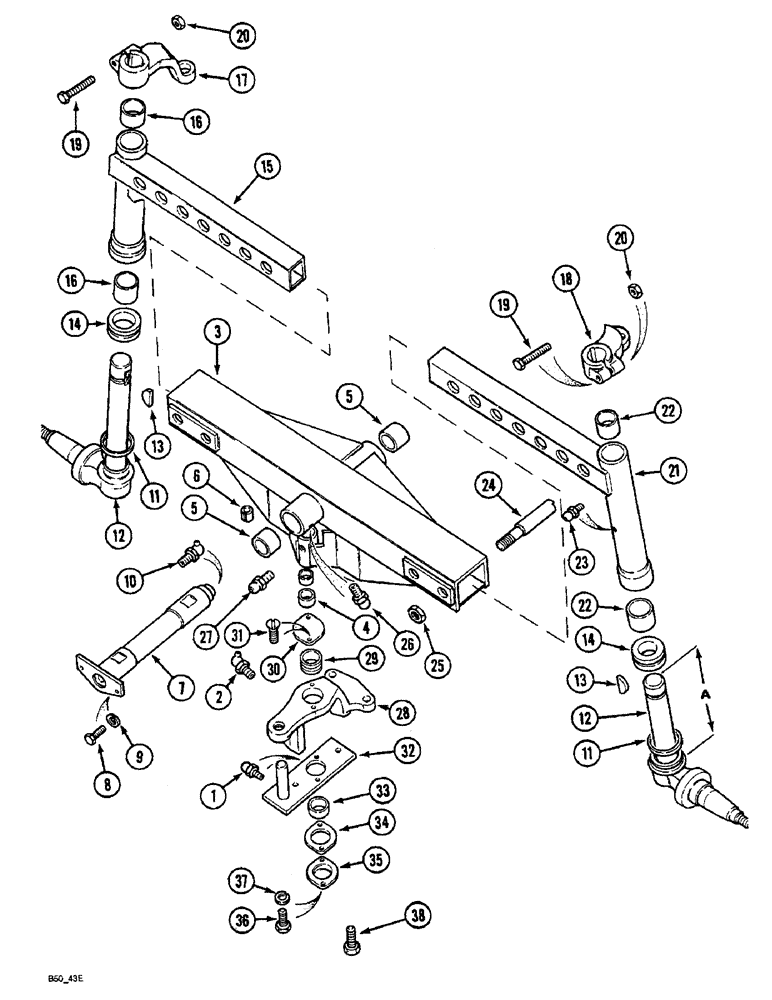

Запчасти Case IH 4240 (5-28) - ADJUSTABLE STRAIGHT FRONT AXLE, 52 TO 77 INCH TRACK (05) - STEERING

1

219-13

LUBE NIPPLE,3/16" NPTF

FITTING - grease, straight, 3/16 drive type x 19/32 inch

1шт.

2

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING - grease, 65 degree, 3/16 drive type x 23/32 inch

1шт.

3

3121242R92

CENTER AXLE

AXLE ASSEMBLY - front, center section, Includes: Ref. 4 - 6

1шт.

4

1536870C1

BUSHING,25.43mm ID x 28.7mm OD x 34mm L

- Cylinder mounting bracket

2шт.

5

405570R1

BUSHING,50.95mm ID x 54.15mm OD x 47.63mm L

- pivot

2шт.

6

103925A1

BUSHING,20mm ID x 26.06mm OD x 25mm L

- spring steel

1шт.

221850A1

LARGE PLATE

PLATE - center axle, end (Not shown)

1шт.

7

99897C1

SHAFT

ASSEMBLY - front axle pivot (Front mounted hydraulic pump)

1шт.

7

3121254R1

SHAFT ASSY.

SHAFT ASSEMBLY - front axle pivot

1шт.

8

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

10

219-56

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 90 degree, 1/8 PT x 1-13/16 inch

1шт.

11

15943DA

SEALING WASHER,60.33mm ID x 72.23mm OD x 4.76mm Thk

- Felt, Special

2шт.

12

3121261R91

KNUCKLE,RH

ASSEMBLY - steering (Dimension A : 11.22 inch), Includes: Ref. 13

2шт.

12

3121270R91

KNUCKLE

ASSEMBLY - steering (Dimension A : 8.33 inch), Includes: Ref. 13

2шт.

13

117997

WOODRUFF KEY,#25, 5/16" x 1 1/2", HT

1шт.

14

185106C91

BEARING ASSY,44.2mm ID x 70.1mm OD x 19.05mm W

BEARING - thrust

1шт.

15

3121257R91

EXTENSION ASSY.

EXTENSION - front axle, right (Used with knuckle 3121261R91), Includes: Ref. 16

1шт.

15

3121268R91

EXTENSION ASSY.

EXTENSION - front axle, right (Used with knuckle 3121270R91), Includes: Ref. 16

1шт.

16

358958R2

BUSHING,42.57mm ID x 46.08mm OD x 51.05mm L

- front axle extension

2шт.

17

3121264R1

ARM

- steering knuckle

1шт.

18

3121263R1

ARM

- steering knuckle

1шт.

19

326-856

BOLT,Hex, 1/2" - 13 x 3-1/2", Gr 8

2шт.

20

329-108

NUT,1/2"-13, G8

2шт.

21

3121256R91

EXTENSION ASSY.

EXTENSION - front axle, left (Used with knuckle 3121261R91), Includes: Ref. 22

1шт.

21

3121267R91

EXTENSION ASSY.

EXTENSION - front axle, left (Used with knuckle 3121270R91), Includes: Ref. 22

1шт.

22

358958R2

BUSHING,42.57mm ID x 46.08mm OD x 51.05mm L

- front axle extension

2шт.

23

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - grease, straight, 1/4 drive type x 9/16 inch (Hi-Axle)

2шт.

23

219-405

LUBE NIPPLE,45 Degree Elbow, 3/16" NPTF

FITTING - grease, 45 degree, 1/4 inch

2шт.

24

3121252R1

BOLT,3/4" - 16 x 1 27/32"

- shoulder

4шт.

25

3121253R1

SPECIAL NUT

- front axle

4шт.

26

219-98

LUBE NIPPLE,1/4" NPTF

FITTING - grease, 1/4 inch

1шт.

27

219-405

LUBE NIPPLE,45 Degree Elbow, 3/16" NPTF

FITTING - grease, 45 degree, 1/4 inch

1шт.

28

67499C94

STEERING ARM

ARM ASSEMBLY - center, power steering, Includes: Ref. 29 - 31

1шт.

29

379748R2

BUSHING,38.19mm ID x 41.27mm OD x 15.87mm L

- bar assembly, steering

1шт.

30

1536890C1

LARGE PLATE

PLATE - cover

1шт.

31

443-12512

SCREW,Cross Flat Hd, 1/4"-20 x 3/4"

2шт.

32

405580R21

BAR ASSY.

BAR ASSEMBLY - power steering cylinder, Includes: Ref. 33 - 37

1шт.

33

379748R2

BUSHING,38.19mm ID x 41.27mm OD x 15.87mm L

- bar assembly

1шт.

34

1536919C1

GASKET

- cover plate

1шт.

35

1536892C1

LARGE PLATE

PLATE - cover

1шт.

36

463-12510

SCREW,Hex Hd, 1/4"-20 x 5/8"

- hex flange, 1/4 NC x 5/8 inch

2шт.

37

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

38

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.
