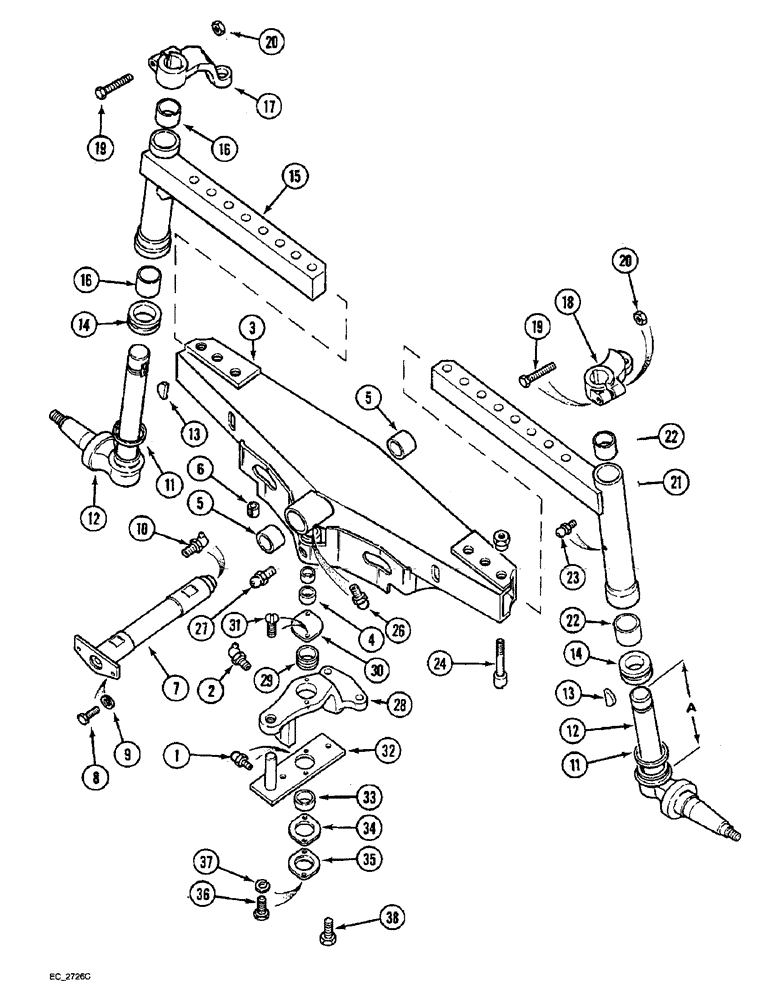

Запчасти Case IH 4240 (5-26) - ADJUSTABLE STRAIGHT FRONT AXLE, 52 TO 82 INCH TRACK (05) - STEERING

1

219-13

LUBE NIPPLE,3/16" NPTF

FITTING - grease, straight, 3/16 drive type x 19/32 inch

1шт.

2

219-53

LUBE NIPPLE,65 Degree Elbow, 3/16" NPTF

FITTING - grease, 65 degree, 3/16 drive type x 23/32 inch

1шт.

3

3116435R93

AXLE, FRONT

AXLE ASSEMBLY - front, center section, Includes: Ref. 4 - 6

1шт.

4

1536870C1

BUSHING,25.43mm ID x 28.7mm OD x 34mm L

- Cylinder mounting bracket

2шт.

5

405570R1

BUSHING,50.95mm ID x 54.15mm OD x 47.63mm L

- pivot

2шт.

6

103925A1

BUSHING,20mm ID x 26.06mm OD x 25mm L

- spring steel

1шт.

7

539128R1

SHAFT ASSY.

SHAFT ASSEMBLY - front axle pivot

1шт.

7

99897C1

SHAFT

ASSEMBLY - front axle pivot

1шт.

8

413-820

BOLT,Hex, 1/2" - 13 x 1-1/4", Gr 5

- hex, 1/2 NC x 1-1/4 inch

2шт.

9

80679

LOCK WASHER,1/20.507 CST ZND

WASHER, LOCK, 1/2"

2шт.

10

219-56

LUBE NIPPLE,90 Degree Elbow, 1/8" - 27 NPTF

FITTING - grease, 90 degree, 1/8 PT x 1-13/16 inch

1шт.

11

15943DA

SEALING WASHER,60.33mm ID x 72.23mm OD x 4.76mm Thk

- Felt, Special

1шт.

12

67535C91

KNUCKLE

ASSEMBLY - steering (Dimension A : 12.17 inch), Includes: Ref. 13

2шт.

12

3125872R91

STEERING KNUCKLE

KNUCKLE ASSEMBLY - steering (Dimension A : 9.62 inch), Includes: Ref. 13

2шт.

13

117997

WOODRUFF KEY,#25, 5/16" x 1 1/2", HT

1шт.

14

185106C91

BEARING ASSY,44.2mm ID x 70.1mm OD x 19.05mm W

BEARING - thrust

1шт.

15

3116476R91

EXTENSION ASSY.

EXTENSION - front axle, right (Use with knuckle 3125872R91), Includes: Ref. 16

1шт.

15

3116580R91

EXTENSION ASSY.

EXTENSION - front axle, right (Use with knuckle 67535C91), Includes: Ref. 16

1шт.

16

358958R2

BUSHING,42.57mm ID x 46.08mm OD x 51.05mm L

- front axle extension

2шт.

17

67525C1

ARM

- steering knuckle

1шт.

18

67524C1

ARM

- steering knuckle

1шт.

19

413-852

BOLT,Hex, 1/2" - 13 x 3-1/4", Gr 5

- hex, 1/2 NC x 3-1/4 inch

2шт.

20

425-108

NUT,1/2" - 13, Gr 5

NUT, 1/2"-13, G5

2шт.

21

3116475R91

EXTENSION ASSY.

EXTENSION - front axle, left (Use with knuckle 3125872R91), Includes: Ref. 22

1шт.

21

3116579R91

EXTENSION ASSY.

EXTENSION - front axle, left (Use with knuckle 67535C91), Includes: Ref. 22

1шт.

22

358958R2

BUSHING,42.57mm ID x 46.08mm OD x 51.05mm L

- front axle extension

2шт.

23

219-98

LUBE NIPPLE,1/4" NPTF

FITTING - grease, 1/4 inch

1шт.

24

405584R2

BOLT,Shldr, 3/4" - 16 x 4

Shoulder

4шт.

25

405576R1

NUT

- front axle

4шт.

26

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - grease, straight, 1/4 drive type x 9/16 inch

1шт.

27

219-405

LUBE NIPPLE,45 Degree Elbow, 3/16" NPTF

FITTING - grease, 45 degree, 1/4 inch

1шт.

28

67499C94

STEERING ARM

ARM ASSEMBLY - center, power steering, Includes: Ref. 29 - 31

1шт.

29

379748R2

BUSHING,38.19mm ID x 41.27mm OD x 15.87mm L

- bar assembly

1шт.

30

1536890C1

LARGE PLATE

PLATE - cover

1шт.

31

443-12512

SCREW,Cross Flat Hd, 1/4"-20 x 3/4"

2шт.

32

405580R21

BAR ASSY.

BAR ASSEMBLY - power steering cylinder, Includes: Ref. 33 - 37

1шт.

33

379748R2

BUSHING,38.19mm ID x 41.27mm OD x 15.87mm L

- bar assembly

1шт.

34

1536919C1

GASKET

- cover plate

1шт.

35

1536892C1

LARGE PLATE

PLATE - cover

1шт.

36

463-12510

SCREW,Hex Hd, 1/4"-20 x 5/8"

- hex flange, 1/4 NC x 5/8 inch

2шт.

37

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

2шт.

38

413-824

BOLT,Hex, 1/2" - 13 x 1-1/2", Gr 5

2шт.
