Запчасти Case IH 4240 (5-24) - POWER STEERING CYLINDER, ADJUSTABLE FRONT AXLES, S.N. - JJE0906095, S.N. JJE0906096 - (05) - STEERING

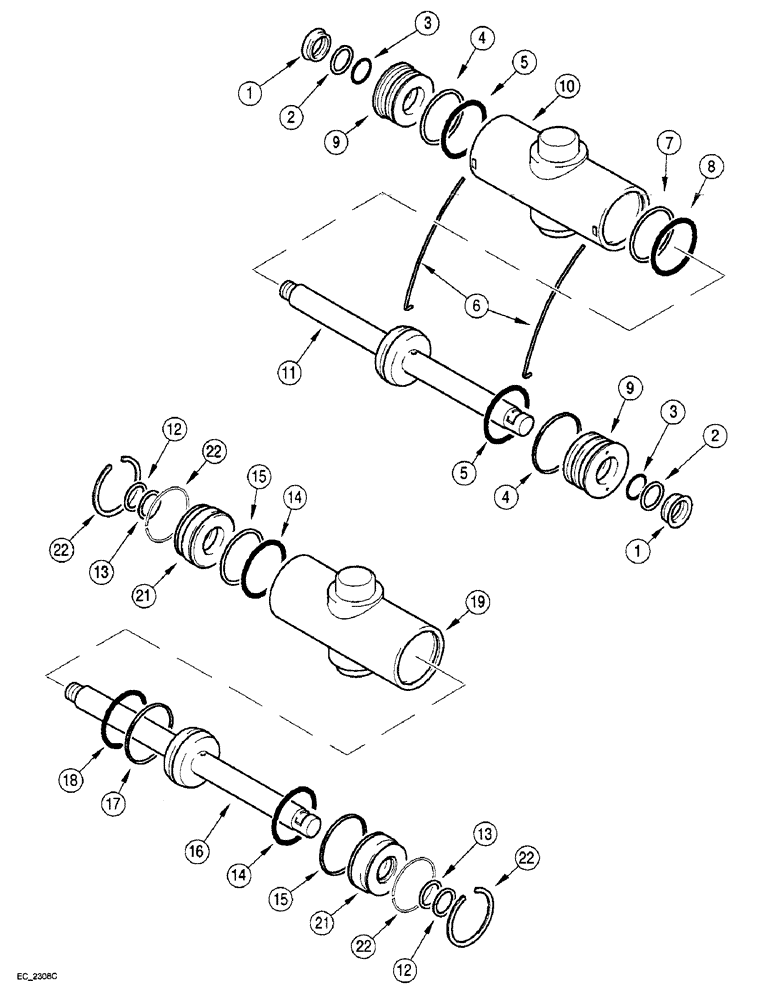

Схема запчастей Case IH 4240 - (5-24) - POWER STEERING CYLINDER, ADJUSTABLE FRONT AXLES, S.N. - JJE0906095, S.N. JJE0906096 - (05) - STEERING
1
4
1
14
17
3
14
5
16
4
15
19
2
2
11
10
22
15
6
7
22
21
12
8
9
18
5
13
22
21
9
12
3
13
22

Артикул

Название

Примечание

Количество

NSS

NOT SOLD SEPARAT

CYLINDER ASSEMBLY - power steering (Order 188842A1), Includes: Ref. 1 - 11, Serial Range: -JJE0906095

1шт.

55355C91

GASKET KIT

KIT - seal, service, O-Rings, seals and washers, Includes: Ref. 1 - 8, Serial Range: -JJE0906095

1шт.

1

531183R1

WIPER SEAL,24.23mm ID x 38.91mm OD x 8.73mm Thk

WIPER - piston rod, Serial Range: -JJE0906095

2шт.

2

379571R1

BACK-UP RING,Split, 25.37mm ID x 31.67mm OD x 1.32mm Thk

RING - backup, piston rod, Serial Range: -JJE0906095

2шт.

3

238-6214

O-RING,0.139" Thk x 0.984" ID, -214, Cl 6, 90 Duro

, Serial Range: -JJE0906095

2шт.

4

380499R1

BACK-UP RING,Split, 57.58mm ID x 63.88mm OD x 1.32mm Thk

RING - backup, rear head, Serial Range: -JJE0906095

2шт.

5

238-5228

O-RING,0.139" Thk x 2.234" ID, -228, Cl 5, 75 Duro

, Serial Range: -JJE0906095

2шт.

6

140600C1

RETAINING WIRE

WIRE - retaining, bulk, locking, Serial Range: -JJE0906095

2шт.

7

379959R1

RING,Square, 3.17mm Thk x 58mm ID

SEAL - piston, seal, Serial Range: -JJE0906095

1шт.

8

238-6137

O-RING,0.103" Thk x 2.05" ID, -137, Cl 6, 90 Duro

, Serial Range: -JJE0906095

1шт.

9

400591R1

HEAD

GLAND - cylinder, rear, Serial Range: -JJE0906095

2шт.

10

400587R1

HYD CYL SLEEVE

BODY - hydraulic cylinder, Serial Range: -JJE0906095

1шт.

84336125R

REMAN-HYD CYLINDER

4210, 4230, 4240 All POWER STEERING CYLINDER, ADJUSTABLE FRONT AXLES, S.N. - JJE0906095, S.N. JJE0906096 (1/94-12/98), Reman for New P/N 400587R1

1шт.

84336125C

CORE-HYD CYLINDER

Return Number

1шт.

11

549668R3

PISTON ROD

ROD - piston, Serial Range: -JJE0906095

1шт.

188842A1

STEERING CYLINDER

CYLINDER ASSEMBLY - power steering, Includes: Ref. 12 - 22, Start Serial: JJE0906096

1шт.

84336125R

REMAN-HYD CYLINDER

4210, 4230, 4240 All POWER STEERING CYLINDER, ADJUSTABLE FRONT AXLES, S.N. - JJE0906095, S.N. JJE0906096 (1/94-12/98), Reman for New P/N 188842A1

1шт.

84336125C

CORE-HYD CYLINDER

Return Number

1шт.

188855A1

GASKET KIT

KIT - service, Includes: Ref. 12 - 18, Start Serial: JJE0906096

1шт.

12

NSS

NOT SOLD SEPARAT

WIPER - piston rod, Start Serial: JJE0906096

2шт.

13

NSS

NOT SOLD SEPARAT

SEAL - rod, Start Serial: JJE0906096

2шт.

14

NSS

NOT SOLD SEPARAT

O-RING - retainer, Start Serial: JJE0906096

2шт.

15

NSS

NOT SOLD SEPARAT

RING - retainer seal backup, Start Serial: JJE0906096

2шт.

188854A1

ROD ASSY.

ROD ASSEMBLY - piston, Start Serial: JJE0906096

1шт.

16

NSS

NOT SOLD SEPARAT

ROD ASSEMBLY - piston, Start Serial: JJE0906096

1шт.

17

NSS

NOT SOLD SEPARAT

O-RING - piston seal, Start Serial: JJE0906096

1шт.

18

NSS

NOT SOLD SEPARAT

SEAL - piston, Start Serial: JJE0906096

1шт.

NSS

NOT SOLD SEPARAT

O-RING - 41/64 ID x 3/32 inch wide (Not shown), Start Serial: JJE0906096

1шт.

NSS

NOT SOLD SEPARAT

O-RING - 15/32 ID x 5/64 inch wide (Not shown), Start Serial: JJE0906096

2шт.

19

188843A1

HYD CYL SLEEVE

BODY - hydraulic cylinder, Start Serial: JJE0906096

1шт.

20

188844A1

RING

RETAINER, Start Serial: JJE0906096

1шт.

21

188852A1

RING

- retainer, Start Serial: JJE0906096

2шт.

22

188853A1

CIRCLIP

RETAINER - circlip, Start Serial: JJE0906096

2шт.

Выбрано товаров: 33
