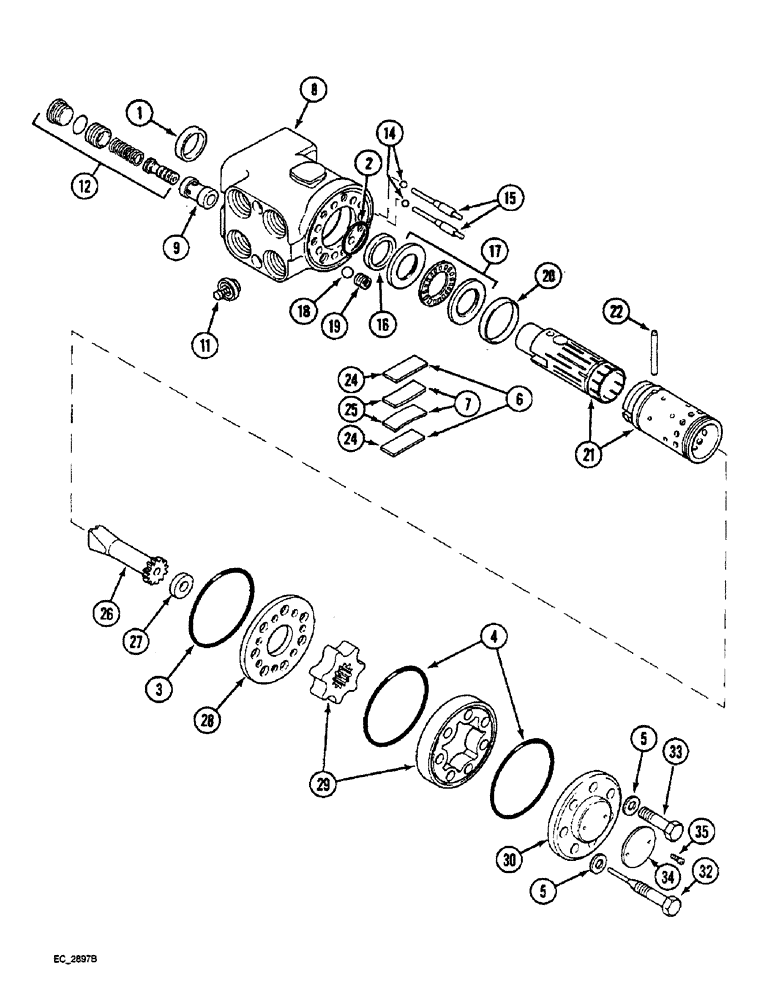

Запчасти Case IH 4240 (5-22) - POWER STEERING VALVE, DANFOSS OSPC 100 OR (05) - STEERING

88107C93

PUMP

VALVE ASSEMBLY - integral, power steering, Includes: Ref. 1 - 35

1шт.

366441A1R

REMAN-HYD PUMP

4210, 4230, 4240, All (NORTH AMERICA) (1/94-12/98), Reman for New PN 88107C93

1шт.

366441A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

1500443C92

SEAL KIT

KIT - service, seal and spring, Includes: Ref. 1 - 7

1шт.

1

NSS

NOT SOLD SEPARAT

SEAL - dust

1шт.

2

NSS

NOT SOLD SEPARAT

O-RING - sealing

1шт.

3

NSS

NOT SOLD SEPARAT

O-RING - sealing

1шт.

4

NSS

NOT SOLD SEPARAT

O-RING - sealing

2шт.

5

NSS

NOT SOLD SEPARAT

WASHER - flat

7шт.

6

NSS

NOT SOLD SEPARAT

SPRING - flat, weak (Blue)

2шт.

7

NSS

NOT SOLD SEPARAT

SPRING - curved, weak (Blue)

2шт.

8

NSS

NOT SOLD SEPARAT

HOUSING ASSEMBLY - power steering valve, Includes: Ref. 9 and 11

1шт.

9

NSS

NOT SOLD SEPARAT

SEAT - relief valve

1шт.

11

NSS

NOT SOLD SEPARAT

VALVE - check

1шт.

12

1971688C1

VALVE

ASSEMBLY - relief, without seat

1шт.

14

211-1006

BALL,3/16" Dia

- chrome alloy steel, 3/16 inch, grade 24

2шт.

15

1971684C1

BUSHING

- with pin

2шт.

16

NSS

NOT SOLD SEPARAT

RING

1шт.

17

1272808C1

NEEDLE BEARING

- needle bearing

1шт.

18

1272794C1

BALL

- check, 8.5 mm diameter, steel

1шт.

19

1272793C1

BUSHING

- threaded

1шт.

20

1272795C1

O-RING,39.6mm ID x 41mm OD x 4.5mm

O-RING - sleeve, sealing

1шт.

21

NSS

NOT SOLD SEPARAT

SPOOL ASSEMBLY - with sleeve

1шт.

22

1272796C1

CROSS PIN

- dowel, special

1шт.

N14219

SET OF PARTS

SPRING - centering, service, standard springs, Includes: Ref. 24 and 25

1шт.

24

NSS

NOT SOLD SEPARAT

SPRING - flat

2шт.

25

NSS

NOT SOLD SEPARAT

SPRING - curved

3шт.

26

1272797C1

SHAFT

- drive, pump, Cardan

1шт.

27

3216707R1

SPACER

- Cardan shaft

1шт.

28

1346022C1

PLATE

- distributor

1шт.

29

3216708R1

ROTOR

GEAR - rotor, matched set

1шт.

30

3112273R1

COVER

- end

1шт.

32

3216709R1

SCREW

- hex, with pin

1шт.

33

3216710R1

SCREW

BOLT - hex, 8 - 1.25 x 40 mm

6шт.

34

NSS

NOT SOLD SEPARAT

PLATE - name

1шт.

35

NSS

NOT SOLD SEPARAT

SCREW - drive

2шт.
