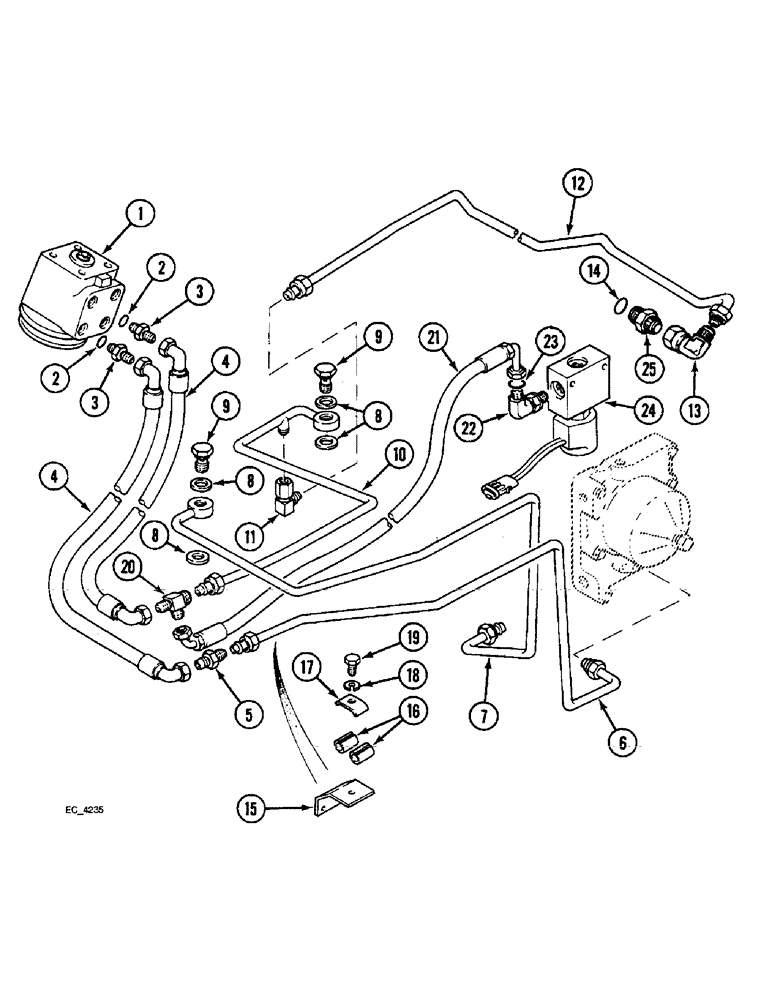

Запчасти Case IH 4240 (5-20) - POWER STEERING TUBES, REAR, MFD TRACTORS WITH CAB, WITH OR WITHOUT TWO SPEED POWER SHIFT (05) - STEERING

1

88107C93

PUMP

VALVE ASSEMBLY - integral, power steering (See Figure 5-22)

1шт.

366441A1R

REMAN-HYD PUMP

4210, 4230, 4240, All (NORTH AMERICA) (1/94-12/98), Reman for New PN 88107C93

1шт.

366441A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

3

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-Ring boss

2шт.

4

1502284C2

HOSE

- hydraulic, pressure and return, pressure and return

2шт.

5

1287927C2

FITTING,7.64 mm ID, 37.2 mm Length

UNION - tube

2шт.

6

99776C3

PIPE

TUBE ASSEMBLY - pressure, power steering, Serial Range: -JJE0926824

1шт.

6

240547A1

HOSE

- pressure, power steering, Start Serial: JJE0926825

1шт.

7

1287929C3

PIPE,65 mm Length

TUBE ASSEMBLY - return, power shift

1шт.

8

109791A1

SEALING WASHER

SEAL - bonded

4шт.

9

1500102C2

SCREW,Hollow, Hex, 3/4" - 16 x 35mm

- hollow

2шт.

10

1287926C3

PIPE

TUBE ASSEMBLY - supply (With 2 speed power shift)

1шт.

11

99706C1

ELBOW

- 90 degree swivel

1шт.

12

123242A1

HYD TUBE

TUBE ASSEMBLY - drop box (Without creeper)

1шт.

12

127350A1

HYD TUBE

TUBE ASSEMBLY - drop box (With creeper)

1шт.

13

218-5229

ELBOW,90 Degree, 1/2"-20, 37 Degree x 1/2"-20, 37 Degree Fem Sw

- 90 degree

1шт.

14

637-63093

O-RING,2.2mm Thk x 9.3mm ID, Cl 6, 90 Duro

- 13/32 ID x 5/64 inch

1шт.

15

1500300C1

SUPPORT

BRACKET - power steering pipes

1шт.

16

673171C1

RUBBER BUSHING

SLEEVE - rubber

2шт.

17

1500302C1

CLAMP

- tube

1шт.

18

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

19

613-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

- hex, 6 - 1 x 20 mm

1шт.

20

123790A1

TEE

- union, reducer

1шт.

21

123580A2

HOSE

- differential lock, solenoid

1шт.

22

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x Adj O-Ring boss, Includes: Ref. 23

1шт.

24

116242A1

SOLENOID

- differential lock

1шт.

25

123627A1

FITTING

CONNECTOR - elbow to drop box, metric to imperial conversion

1шт.

23

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

1шт.
