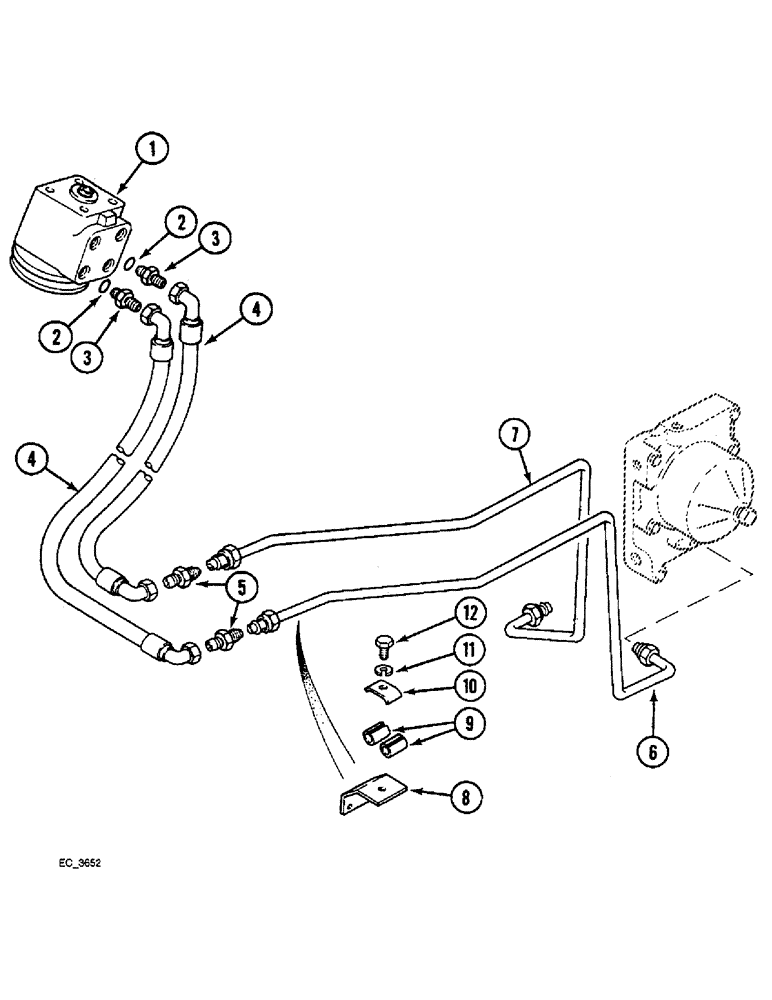

Запчасти Case IH 4240 (5-16) - POWER STEERING TUBES, REAR, TWO WHEEL DRIVE TRACTORS WITH CAB, WITHOUT TWO SPEED POWER SHIFT (05) - STEERING

1

88107C93

PUMP

VALVE ASSEMBLY - integral, power steering (See Figure 5-22)

1шт.

366441A1R

REMAN-HYD PUMP

4210, 4230, 4240, All (NORTH AMERICA) (1/94-12/98), Reman for New PN 88107C93

1шт.

366441A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

3

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-Ring boss

2шт.

4

1502284C2

HOSE

- hydraulic, pressure and return, pressure and return

2шт.

5

218-851

HYD CONNECTOR,3/4"-16, 37 Degree x 9/16"-18, 37 Degree

ADAPTER - straight, large hex

2шт.

6

99776C3

PIPE

TUBE ASSEMBLY - pressure, power steering, Serial Range: -JJE0926824

1шт.

6

240547A1

HOSE

- pressure, power steering, Start Serial: JJE0926825

1шт.

7

99802C1

PIPE

TUBE ASSEMBLY - return, power steering

1шт.

8

1500300C1

SUPPORT

BRACKET - power steering pipes

1шт.

9

673171C1

RUBBER BUSHING

SLEEVE - rubber

2шт.

10

1500302C1

CLAMP

- tube

1шт.

11

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

12

613-6020

BOLT,Hex, M6 x 1 x 20mm, Cl 8.8, Full Thd

- hex, 6 - 1 x 20 mm

1шт.
