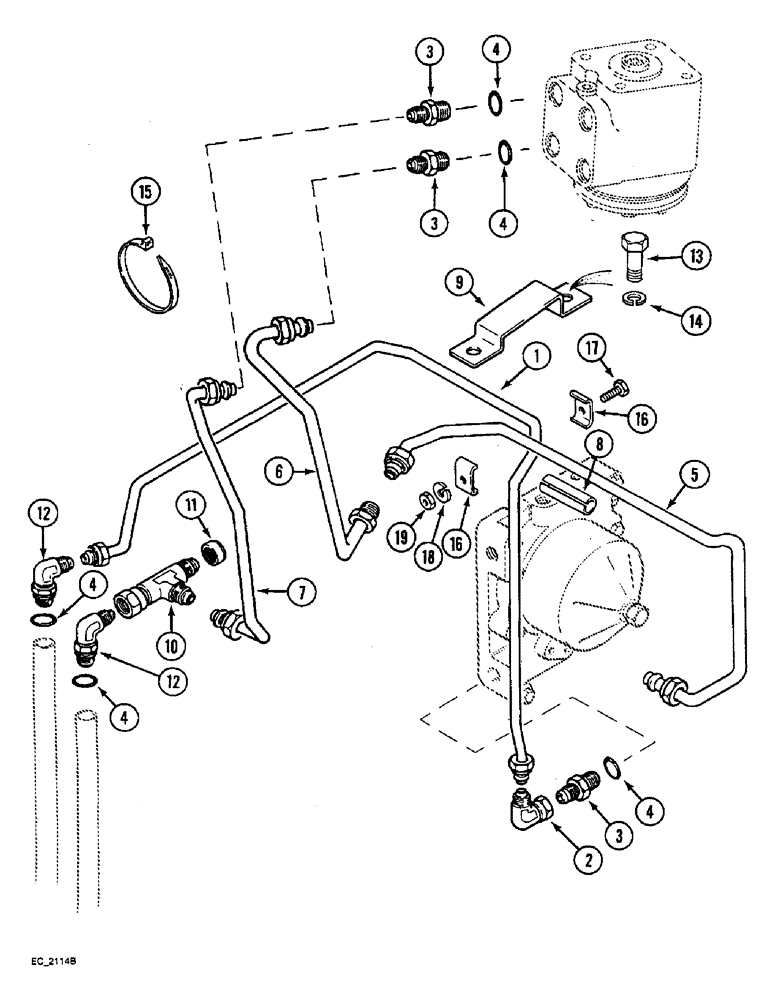

Запчасти Case IH 4240 (5-12) - POWER STEERING TUBES, REAR, TWO WHEEL DRIVE TRACTOR WITHOUT CAB (05) - STEERING
№
Артикул
Название
Примечание
Количество
1
99800C2
PIPE
TUBE ASSEMBLY - return (Without 2 speed power shift)
1шт.
1
99778C2
PIPE
TUBE ASSEMBLY - return (With 2 speed power shift)
1шт.
1
99778C2
PIPE
TUBE ASSEMBLY - return (With forward and reverse)
1шт.
2
218-5230
ELBOW,90 Degree, 3/4"-16, 37 Degree x 3/4"-16, 37 Degree Fem Sw
- 90 degree, 3/4-16 inch flare x swivel, flare
1шт.
3
218-5059
HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring
ADAPTER - straight, 3/4 inch NF flare x O-Ring boss
3шт.
4
237-6008
O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro
8-1, 90 Duro, .644" ID x .087" Thk
3шт.
5
99777C3
PIPE
TUBE ASSEMBLY - pressure, rear, steering, Serial Range: -JJE0926429
1шт.
5
236251A1
HYD TUBE
TUBE ASSEMBLY - pressure, steering, Start Serial: JJE0926430
1шт.
6
99797C3
PIPE
TUBE ASSEMBLY - pressure, power steering, Serial Range: -JJE0926429
1шт.
6
237705A1
HOSE
- pressure, power steering, Start Serial: JJE0926430
1шт.
7
99798C2
PIPE
TUBE ASSEMBLY - return, power steering
1шт.
8
NSS
NOT SOLD SEPARAT
SLEEVE - rubber 2-1/2 inches (Order 87086C1, Serial Range: cut-length)
2шт.
87086C1
RADIATOR HOSE,7.90 mm ID
HOSE, 7.90 mm ID
1шт.
9
99953C1
CLAMP
BRACKET - pipe retaining
1шт.
10
218-845
TEE,37 Degree, 3/4"-16 x 3/4"-16, Fem Sw Run
- swivel, 3/4-16 inch flare branch x flare x Adj straight thread
1шт.
12
218-5106
90 ELBOW,90 Degree Elbow, 3/4" - 16 Male JIC x 3/4" - 16 Male ORB
- 90 degree, 3/4-16 inch flare x Adj O-Ring boss
2шт.
13
413-630
BOLT,Hex, 3/8" - 16 x 1-7/8", Gr 5
- hex, 3/8 NC x 1-7/8 inch
2шт.
14
92-11038
LOCK WASHER,3/8"
WASHER, LOCK, 3/8"
2шт.
15
306132C1
CABLE TIE,14.5" L
STRAP - tie, nylon 14 in
2шт.
16
535301R1
CLAMP
- tube
2шт.
17
614-8025
BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd
- hex, full threads, 8 - 1.25 x 25 mm
1шт.
19
829-1408
NUT,Hex, M8 x 1.25, Cl 10.9
- hex, 8 mm - 1.25, class 10
1шт.
Выбрано товаров: 24
