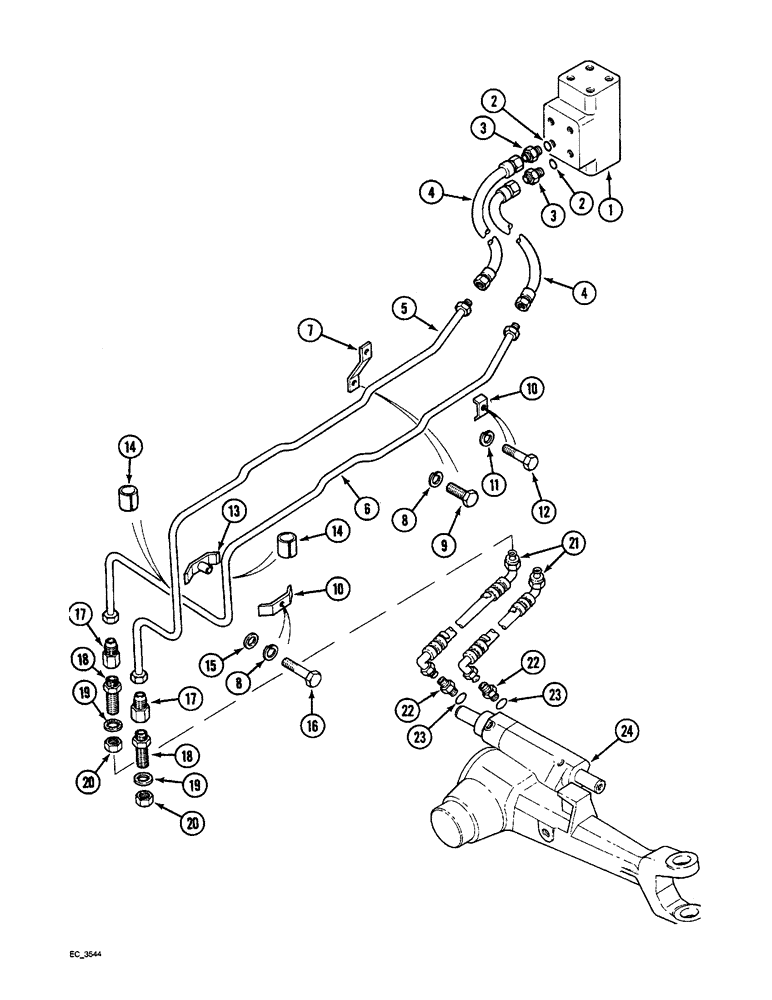

Запчасти Case IH 4240 (5-10) - POWER STEERING TUBES, FRONT, MFD TRACTOR (05) - STEERING

1

88107C93

PUMP

VALVE ASSEMBLY - integral, power steering (See Figure 5-22)

1шт.

366441A1R

REMAN-HYD PUMP

4210, 4230, 4240, All (NORTH AMERICA) (1/94-12/98), Reman for New PN 88107C93

1шт.

366441A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

2шт.

3

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-Ring boss

2шт.

4

99784C2

HOSE,9.53mm ID x 700mm L, SAE 100R1

- power steering (Without cab)

2шт.

4

1502283C2

HOSE

- flexible (With cab)

2шт.

5

99753C5

PIPE

TUBE ASSY - left, front, left

1шт.

6

99752C5

PIPE

TUBE ASSY - right, front, right

1шт.

7

1500313C1

SUPPORT

BRACKET ASSEMBLY - front power steering pipes

1шт.

8

892-11006

LOCK WASHER,M6

WASHER, LOCK, , 1/4 inch M6

2шт.

9

13-428

BOLT,Hex, 1/4" - 20 x 1-3/4", Gr 5

1шт.

10

529644R11

CLAMP

- tube

2шт.

11

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

1шт.

12

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

1шт.

13

529644R11

CLAMP

- tube

1шт.

14

NSS

NOT SOLD SEPARAT

SLEEVE - rubber 2-1/2 inches (Order 87086C1, Serial Range: cut-length)

2шт.

87086C1

RADIATOR HOSE,7.90 mm ID

HOSE, 7.90 mm ID

1шт.

15

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

1шт.

16

413-414

BOLT,Hex, 1/4" - 20 x 7/8", Gr 5

- hex, 1/4 NC x 7/8 inch

1шт.

17

99713C1

FITTING

UNION - adapter

2шт.

18

218-673

FITTING,Blkhd, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree

FIT STL BULKHD .375MJ .375MJ

2шт.

19

93-21065

LOCK WASHER,Int Tooth, 5/8"

WASHER - internal tooth lock, 5/8 inch

2шт.

20

218-1254

LOCK NUT,Blkhd, 9/16"-18

NUT - hex, lock, bulkhead, 9/16 inch NF

2шт.

21

3121235R2

HOSE,6.35mm ID x 483mm L, SAE 100R1

- power steering cylinder

2шт.

22

83357C1

FITTING

UNION - straight

2шт.

24

1537617C1

STEERING CYLINDER

CYLINDER ASSEMBLY - steering, power steering (See Figure 5-40)

1шт.

24

1537617C1R

REMAN-HYD CYLINDER

4210, 4230, 4240, All CASE IH TRACTOR (NORTH AMERICA), CYLINDER ASSEMBLY, steering, power steering (1/94-12/98)

1шт.

24

1537617C1C

CORE-HYD CYLINDER

Return Number

1шт.

23

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.
