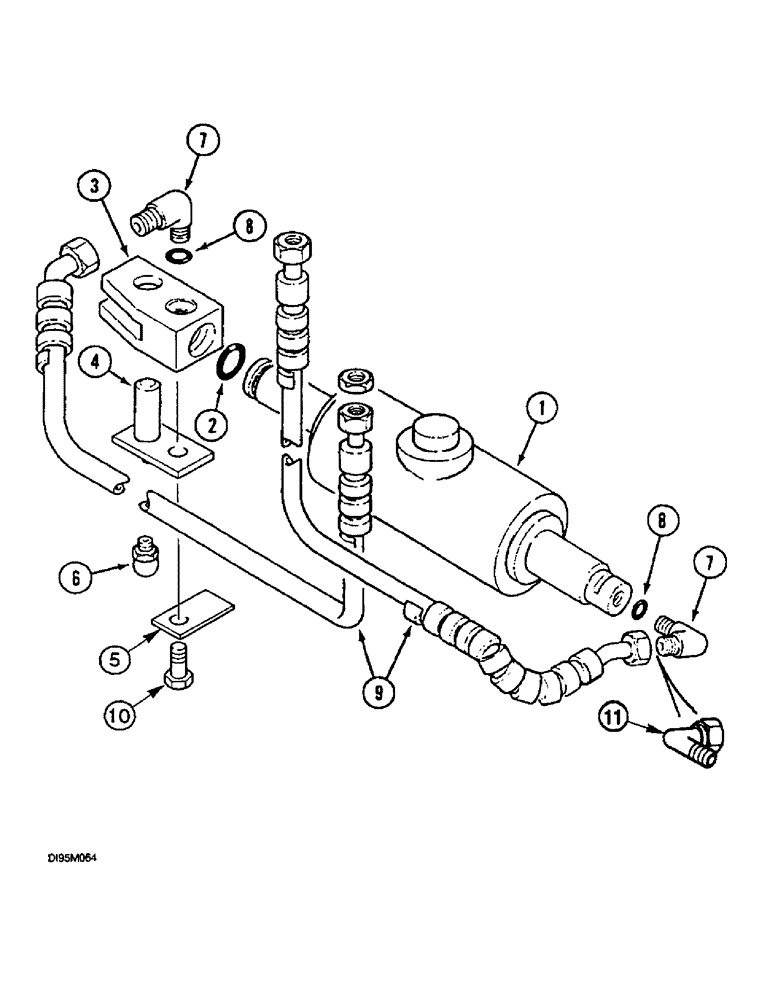

Запчасти Case IH 4240 (5-08) - POWER STEERING CYLINDERS AND HOSES, TWO WHEEL DRIVE TRACTOR, ADJUSTABLE FRONT AXLE (05) - STEERING

1

REF

INSTRUCTION

CYLINDER ASSEMBLY - power steering (See Figure 5-24)

1шт.

2

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

1шт.

3

103924A1

CLEVIS,3/4" - 16

- cylinder end

1шт.

4

103921A1

PIN,19.98mm OD x 70mm L

- power steering cylinder

1шт.

5

103926A1

WASHER

- lock tab

1шт.

6

219-17

LUBE NIPPLE,3/16" NPTF

FITTING - grease, straight, 3/16 drive type x 17/32"

1шт.

7

218-5105

ELBOW,90 Degree Elbow, 9/16" - 18 Male JIC x 9/16" - 18 Male ORB

- 90 degree, 9/16-18 inch flare x Adj O-Ring boss

1шт.

8

237-6006

O-RING,0.078" Thk x 0.468" ID, -906, Cl 6, 90 Duro

6-1, 90 Duro, .468" ID x .078" Thk

2шт.

9

3121235R2

HOSE,6.35mm ID x 483mm L, SAE 100R1

- power steering cylinder

2шт.

10

614-8014

BOLT,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 14 mm

1шт.

11

218-980

ELBOW,90 Degree, 9/16"-18, 37 Degree x 9/16"-18, 37 Degree Fem Sw

- 90 degree, 9/16-18 inch flare x swivel (For swept back axle)

1шт.
