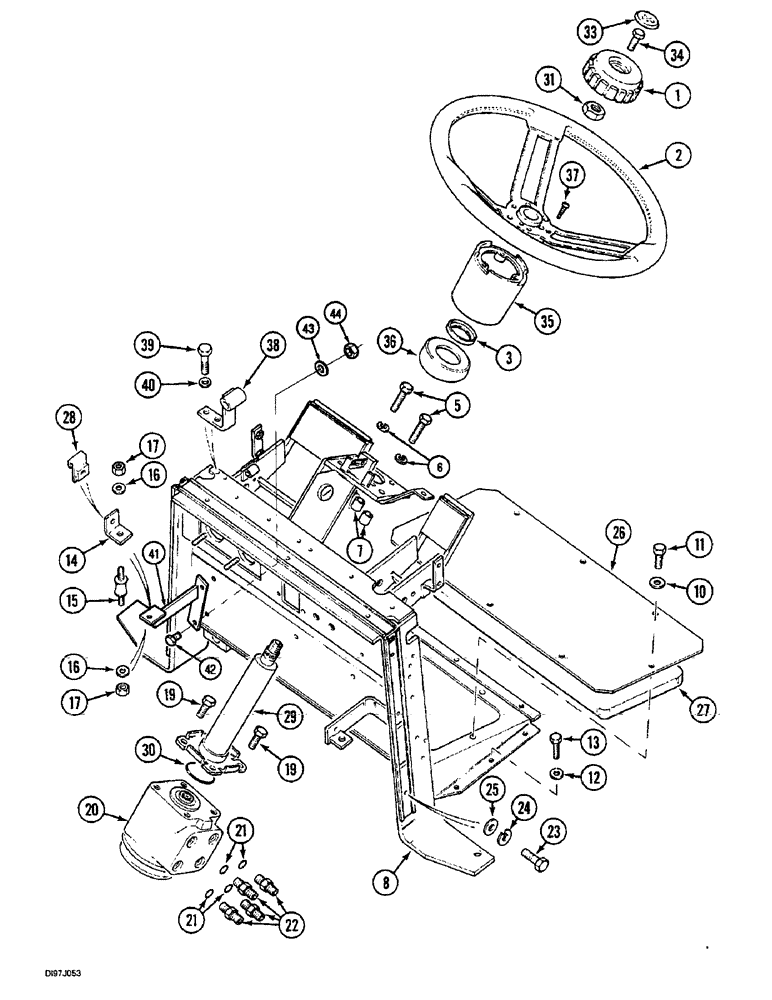

Запчасти Case IH 4240 (5-04) - STEERING WHEEL, SUPPORT AND VALVE, TRACTOR WITH CAB (05) - STEERING

1

1977749C1

CAP

HUB - steering wheel

1шт.

2

1340252C2

WHEEL (STEERING)

WHEEL - steering, Includes: Ref. 3

1шт.

3

239-5127

O-RING,Rect, 1.438" ID x 1.562" OD, Cl 5

RING - seal, 1-7/16 x 3/32 inch wide

3шт.

5

61-33824

HEX SOC SCREW,3/8"-16 x 1 1/2"

SCREW - cap, hex socket, 3/8 NC x 1-1/2 inch

2шт.

6

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

7

660200R1

SPACER,10.7mm ID x 17.14mm OD x 9.5mm L

- pipe

2шт.

8

126333A3

STEERING SUPPORT

SUPPORT ASSEMBLY - steering

1шт.

10

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

8шт.

11

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm

8шт.

12

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

10шт.

13

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm

8шт.

13

614-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm

2шт.

14

3129867R1

SUPPORT

BRACKET - hood support

2шт.

15

3129866R2

SHOCK ABSORBER

BLOCK - isolating

2шт.

16

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

4шт.

17

829-1406

NUT,Hex, M6 x 1, Cl 10.9

4шт.

19

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

2шт.

20

88107C93

PUMP

VALVE ASSEMBLY - integral, power steering (See Figure 5-22)

1шт.

366441A1R

REMAN-HYD PUMP

4210, 4230, 4240, All (NORTH AMERICA) (1/94-12/98), Reman for New PN 88107C93

1шт.

366441A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

21

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

4шт.

22

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-Ring boss

4шт.

23

614-10020

BOLT,Hex, M10 x 1.5 x 20mm, Cl 8.8, Full Thd

4шт.

24

892-11010

LOCK WASHER,M10

2шт.

25

934674R1

WASHER,M10.5 x 30 x 2.5

- flat, 10.5 x 30 x 2.5 mm

4шт.

1536046C1

PANEL ASSY.

PANEL ASSEMBLY - steering support, Includes: Ref. 26 - 28

1шт.

26

NSS

NOT SOLD SEPARAT

PANEL - steering support

1шт.

27

1536047C1

INSULATOR

INSULATION - steering support panel

1шт.

28

3129868R1

NUT

- caged, 5/16 inch

2шт.

29

3129610R91

STEERING COLUMN

SHAFT ASSEMBLY - steering, Includes: Ref. 30 and 31

1шт.

30

1537340C1

O-RING,44.12mm ID x 2.62mm Width

- 44.2 x 2.62 mm

1шт.

31

F19646

LOCK NUT,13/16"-20, Thin

NUT - lock, steering wheel retaining

1шт.

33

A180055

CAP ASSY.

INSERT - Case Globe and Eagle

1шт.

34

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

1шт.

35

127836A1

GUARD

HUB - steering

1шт.

36

127837A1

COVER

- steering column

1шт.

37

260-54310

SELF-TAP SCREW,Cross Pan Hd, #6 x 5/8"

SCREW - self-tapping, pan Phillips, No. 6-20 x 5/8 inch

3шт.

38

137369A2

SUPPORT

- bracket (With forward and reverse or creeper)

1шт.

39

614-6016

BOLT,Hex, M6 x 1 x 16mm, Cl 8.8, Full Thd

2шт.

40

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

41

242481A1

SUPPORT

BRACKET - hood support

1шт.

42

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm

2шт.

43

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

2шт.

44

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10

2шт.
