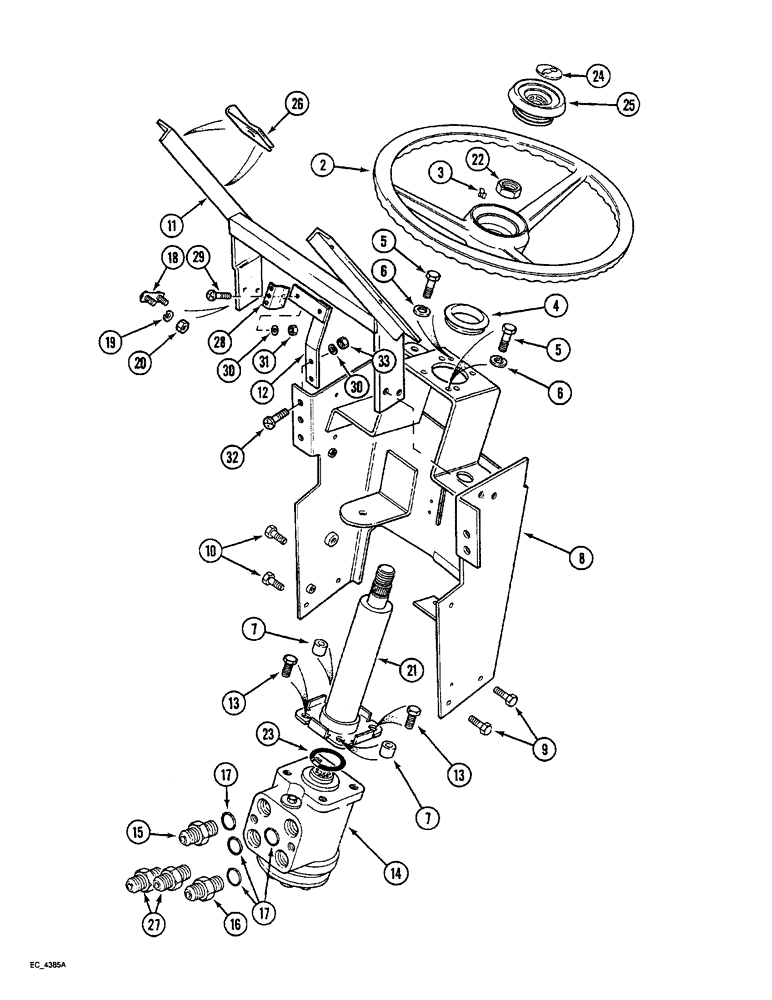

Запчасти Case IH 4240 (5-02) - STEERING WHEEL, SUPPORT AND VALVE, TRACTOR WITHOUT CAB (05) - STEERING

2

385156R1

WHEEL (STEERING)

WHEEL - steering, Includes: Ref. 3

1шт.

2

385156R1GV

STEERING WHEEL

Value, Steering Wheel

1шт.

3

3123598R1

CLIP,ELECTRICAL

CLIP - retaining

3шт.

4

3141495R1

BOOT

- rubber, steering shaft

1шт.

5

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

2шт.

6

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

7

660200R1

SPACER,10.7mm ID x 17.14mm OD x 9.5mm L

- pipe

2шт.

8

144170A2

STEERING SUPPORT

SUPPORT ASSY. - steering

1шт.

8

144169A2

STEERING SUPPORT

SUPPORT ASSY. - steering (With forward and reverse or creeper)

1шт.

9

413-68

BOLT,Hex, 3/8" - 16 x 1/2", Gr 5

2шт.

10

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

11

139365A2

SUPPORT

- instrument panel

1шт.

12

143985A2

SUPPORT

BRACKET - fuse box mounting

1шт.

13

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

2шт.

14

88107C93

PUMP

VALVE ASSEMBLY - integral

1шт.

366441A1R

REMAN-HYD PUMP

4210, 4230, 4240, All (NORTH AMERICA) (1/94-12/98), Reman for New PN 88107C93

1шт.

366441A1C

CORE-HYDRAULIC PUMP

Return Number

1шт.

15

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-Ring boss

2шт.

16

218-5059

HYD CONNECTOR,3/4"-16, 37 Degree x 3/4"-16, O-Ring

ADAPTER - straight, 3/4 inch NF flare x O-Ring boss

2шт.

17

237-6008

O-RING,0.087" Thk x 0.644" ID, -908, Cl 6, 90 Duro

8-1, 90 Duro, .644" ID x .087" Thk

4шт.

18

144295A1

LARGE PLATE

PLATE - retainer

2шт.

19

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

20

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

21

3121187R92

STEERING COLUMN

SHAFT ASSEMBLY - steering, Includes: Ref. 22 and 23

1шт.

22

F19646

LOCK NUT,13/16"-20, Thin

NUT - lock, steering wheel retaining

1шт.

23

1537340C1

O-RING,44.12mm ID x 2.62mm Width

- 44.2 x 2.62mm

1шт.

68837C3

CAP

ASSEMBLY - steering wheel, Includes: Ref. 24 and 25

1шт.

24

A180055

CAP ASSY.

INSERT - Case Globe and Eagle

1шт.

25

NSS

NOT SOLD SEPARAT

CAP - steering wheel (Order 68837C3)

1шт.

26

140714A1

SPRING NUT

- spring

4шт.

27

218-5058

HYD CONNECTOR,9/16" - 18 Male JIC x 3/4" - 18 Male ORB

ADAPTER - straight, 9/16-18 flare x 3/4-16 inch O-Ring boss

2шт.

28

91844C2

SUPPORT

BRACKET - fuse box mounting

2шт.

29

628-6020

BOLT,Hex, M6 x 20mm, Cl 10.9, Full Thd

- hex, 6 - 1.0 x 20 mm, class 10.9

2шт.

30

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

4шт.

31

825-1406

NUT,M6, Cl 8

2шт.

32

424-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 2

- machine, pan head Phillips, 1/4 x 3/4 inch

2шт.

33

425-104

NUT,1/4"-20, Cl 5

- hex, 1/4 inch NC

2шт.
