(4-54) - SPEED SENSOR, TRACTOR WITH CAB , ROAD SPEED SENSOR

Запчасти Case IH 4240 (4-54) - SPEED SENSOR, TRACTOR WITH CAB , ROAD SPEED SENSOR (04) - ELECTRICAL SYSTEMS

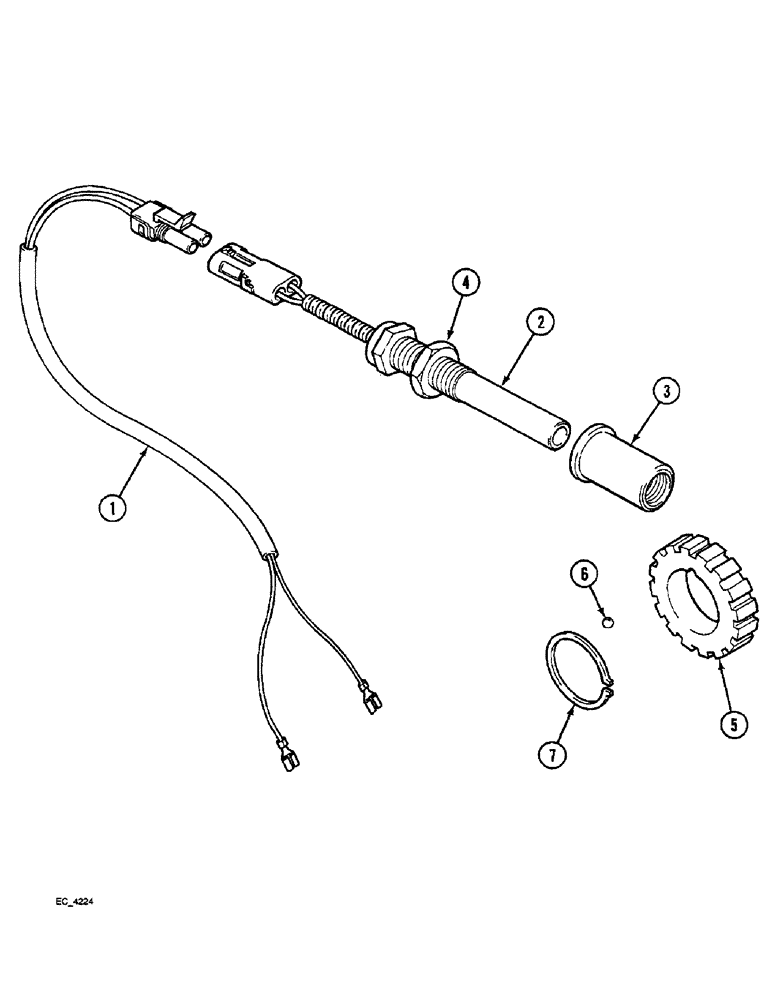

Схема запчастей Case IH 4240 - (4-54) - SPEED SENSOR, TRACTOR WITH CAB , ROAD SPEED SENSOR (04) - ELECTRICAL SYSTEMS
1
6
3
5
7
2
4
FIT
1:1
100%

№

Артикул

Название

Примечание

Количество

1

126874A1

HARNESS

ASSEMBLY - road speed sensor

1шт.

2

123300A1

SENSOR

- road speed, Includes: Ref. 3 and 4

1шт.

3

123297A2

TUBE

SLEEVE - sensor

1шт.

4

NSS

NOT SOLD SEPARAT

NUT - lock

1шт.

5

140222A1

GEAR

WHEEL - slotted, speedometer

1шт.

6

211-1008

BALL,1/4" Dia

- chrome alloy steel, 1/4 inch Dia.

1шт.

7

101-11187

SNAP RING,#187, 1.759", Ext

RING - retaining, external

1шт.
