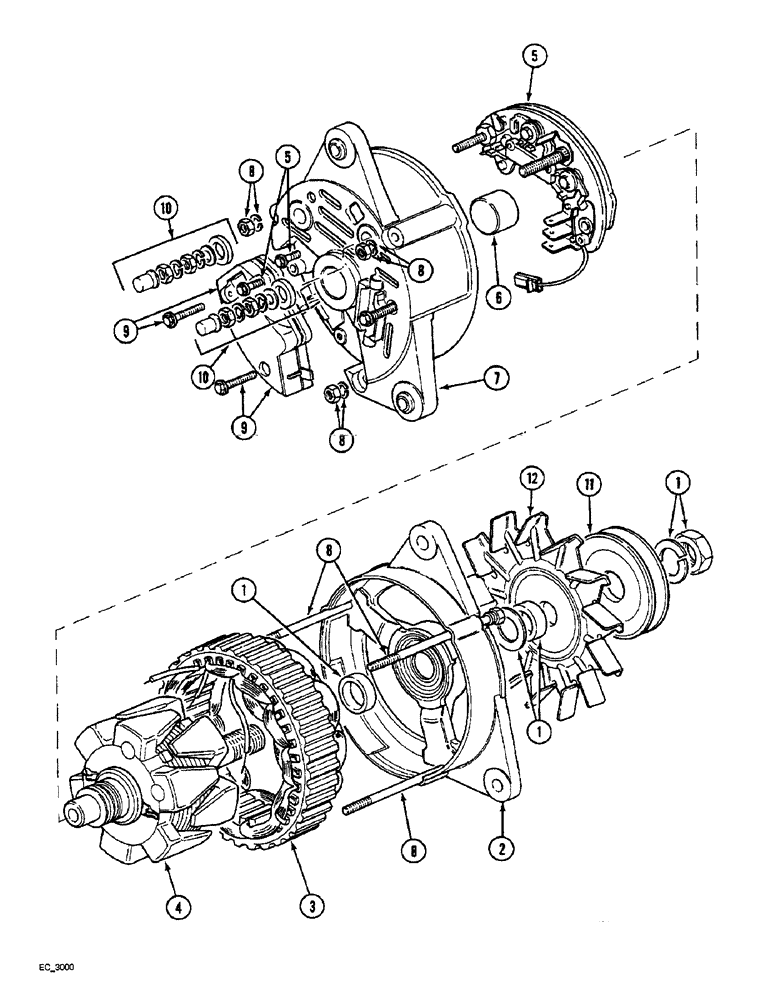

Запчасти Case IH 4240 (4-52[1]) - ALTERNATOR ASSEMBLY, LUCAS 65 AMP (04) - ELECTRICAL SYSTEMS

92281C1

ALTERNATOR

ALTERNATOR - heavy duty, Lucas 65 amp, Includes: Ref. 1 - 10

1шт.

87800219R

REMAN-ALTERNATOR

Reman for New P/N 92281C1

1шт.

87800219C

CORE-ALTERNATOR

Return Part Number

1шт.

1

K262477

KIT

SUNDRY KIT - Sundry parts

1шт.

2

K262268

BRACKET

FRAME ASSEMBLY - drive end

1шт.

3

K262275

STATOR

STATOR - alternator

1шт.

4

K262270

ROTOR

ROTOR ASSEMBLY - alternator

1шт.

5

K262267

RECTIFIER

RECTIFIER ASSEMBLY - alternator, includes nuts and screws

1шт.

6

K262272

ROLLER BEARING

BEARING - slip ring end

1шт.

7

K262271

SUPPORT

FRAME - slip ring end

1шт.

8

K262274

PACKAGE

BOLT KIT - through, with nuts and washers

1шт.

9

K262266

REGULATOR

REGULATOR - complete with brush box

1шт.

10

K262478

KIT

KIT - terminals

1шт.

11

1970879C1

PULLEY

KIT - pulley

1шт.

12

K311704

FAN

FAN - alternator

1шт.
