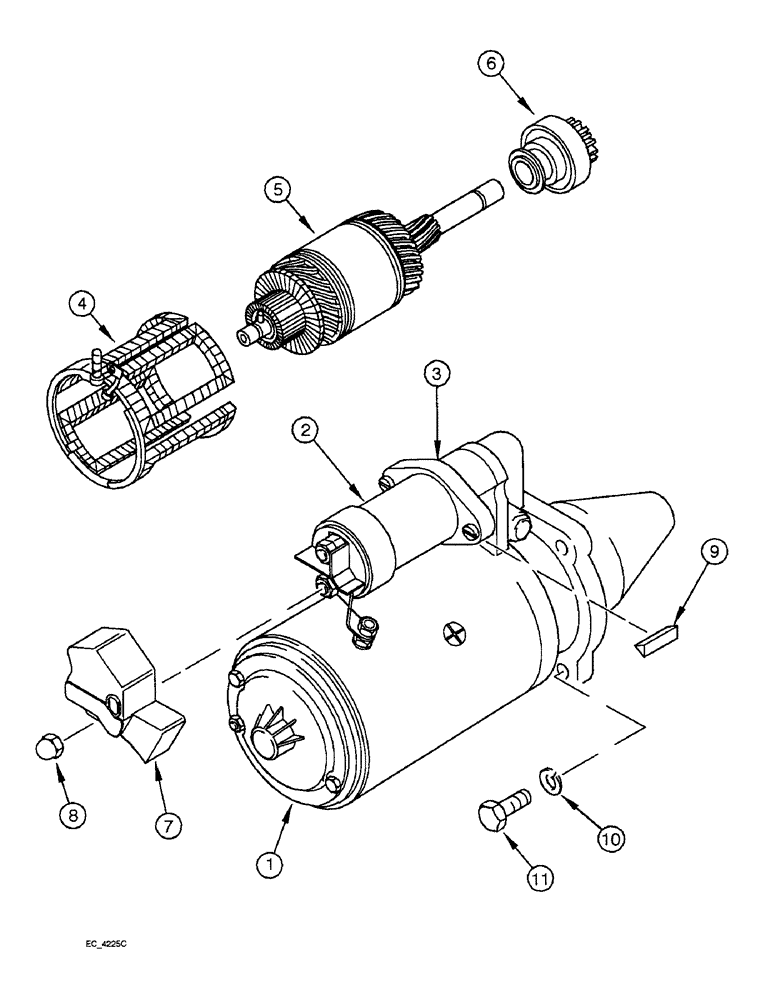

Запчасти Case IH 4240 (4-48) - STARTER MOTOR, MAGNETI-MARELLI (04) - ELECTRICAL SYSTEMS

189330A3

PACKAGE

KIT - starter motor, Includes: Ref. 1 - 8

1шт.

189330A5GV

STARTER MOTOR,12V, 2.8kW

Value

1шт.

189330A5R

REMAN-STARTER,12V, 2.8kW

Remanufactured Starter 12 volt, 2.8KW

1шт.

189330A5C

CORE-STARTER,12V, 2.8kW

Return Part Number, Starter 12 volt, 2.8KW

1шт.

1

NSS

NOT SOLD SEPARAT

MOTOR - starting, Includes: Ref. 2 - 8

1шт.

2

NSS

NOT SOLD SEPARAT

SOLENOID - starter motor

1шт.

3

226817A1

GASKET

GASKET - solenoid, Serial Range: -JJE0924389

1шт.

3

278288A1

GASKET

GASKET - solenoid, Start Serial: JJE0924390

1шт.

4

84058C1

KIT

KIT - field coils

1шт.

5

84059C1

ARMATURE

ARMATURE ASSEMBLY - starter motor

1шт.

6

84209C2

DRIVE ASSY.

DRIVE - starter

1шт.

7

114570A1

COVER

COVER - terminal

1шт.

8

114571A1

SPECIAL NUT

NUT - dome, nylon

3шт.

189329A4

PACKAGE

KIT - solenoid, Includes: Ref. 2, 3 7, 8 and 9

1шт.

2

NSS

NOT SOLD SEPARAT

SOLENOID - starter motor

1шт.

3

226817A1

GASKET

GASKET - solenoid, Serial Range: -JJE0924389

1шт.

3

278288A1

GASKET

GASKET - solenoid, Start Serial: JJE0924390

1шт.

7

114570A1

COVER

COVER - terminal

1шт.

8

114571A1

SPECIAL NUT

NUT - dome, nylon

1шт.

9

226818A1

GROMMET

GROMMET - rubber filler, Serial Range: -JJE0919920

3шт.

10

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

BOLT - hex, 3/8 NC x 1-1/4 inch

1шт.

11

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.
