Запчасти Case IH 4240 (4-42) - ROPS CANOPY WIRING AND LIGHTS (04) - ELECTRICAL SYSTEMS

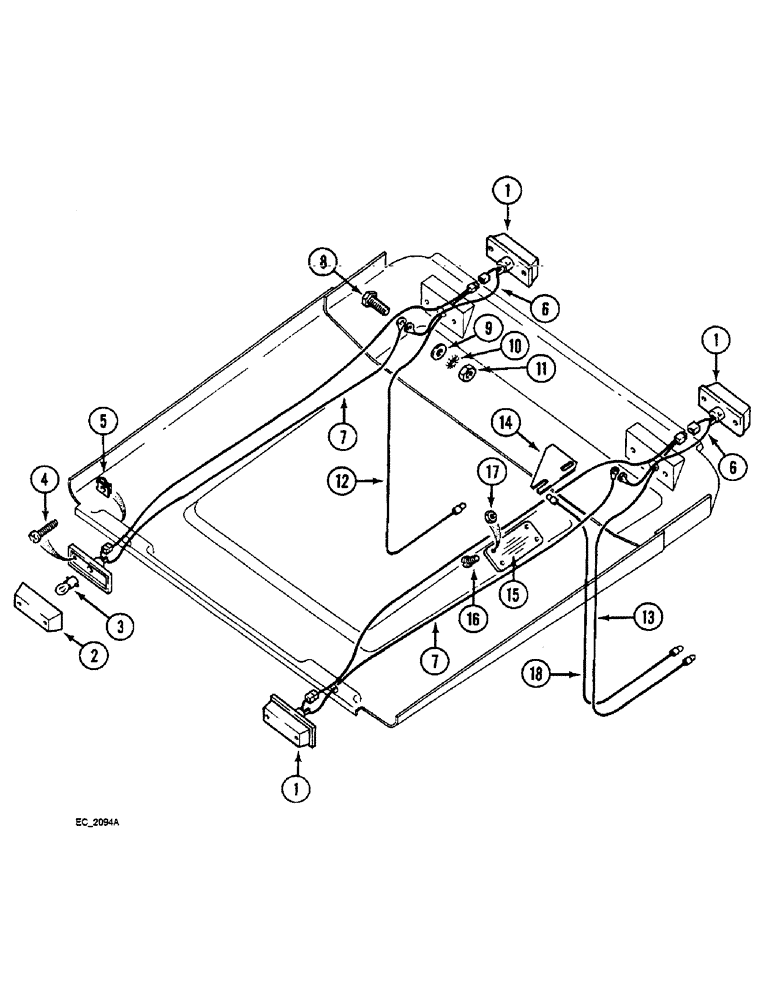

Схема запчастей Case IH 4240 - (4-42) - ROPS CANOPY WIRING AND LIGHTS (04) - ELECTRICAL SYSTEMS
1
2
9
14
10
7
8
4
1
11
3
12
1
15
18
7
5
13
16
6
17
6

Артикул

Название

Примечание

Количество

1

130882C91

LAMP

LAMP ASSEMBLY - warning, Includes: Ref. 2 and 3

4шт.

2

130883C1

LENS

- amber

1шт.

3

A41264

BULB,#1156, 12V

Lamp, Single contact, Single filament #1156, 12V

1шт.

4

260-13540

SELF-TAP SCREW,Cross Pan Hd, #10 x 2 1/2"

SCREW - self-tapping, pan Phillips, No. 10-16 x 2-1/2 inch

8шт.

5

684322R1

SPRING NUT

- spring, U-Type

8шт.

6

111264C3

CABLE

ASSEMBLY - ground, rear lights

2шт.

7

118219C1

CABLE

ASSEMBLY - ground, front lights

2шт.

8

276-1458

SELF-TAP SCREW,Hex Hd, #10 x 1/2"

SCREW - self-tapping, hex head, No. 10 NC x 1/2 inch

2шт.

9

495-31022

WASHER,#10

2шт.

10

493-41020

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

2шт.

11

225-14110

NUT,#10-24

2шт.

12

118384C1

CABLE

ASSEMBLY - warning light, right

1шт.

13

118383C1

CABLE

ASSEMBLY - warning light, left

1шт.

14

118522C1

BRACKET

- radio mounting

1шт.

15

143186C92

RADIO

GRILLE - speaker

2шт.

16

342-10812

SCREW,Cross Oval Hd, #8-32 x 3/4"

- machine, oval head Phillips, No. 8 NF x 3/4 inch

8шт.

17

193-1002

NUT,Keps, #8 - 32, w/ Ext Tooth LW

- hex, with external tooth lock washer, No. 8 NC

8шт.

18

118523C2

CABLE

- radio power

1шт.

Выбрано товаров: 18
