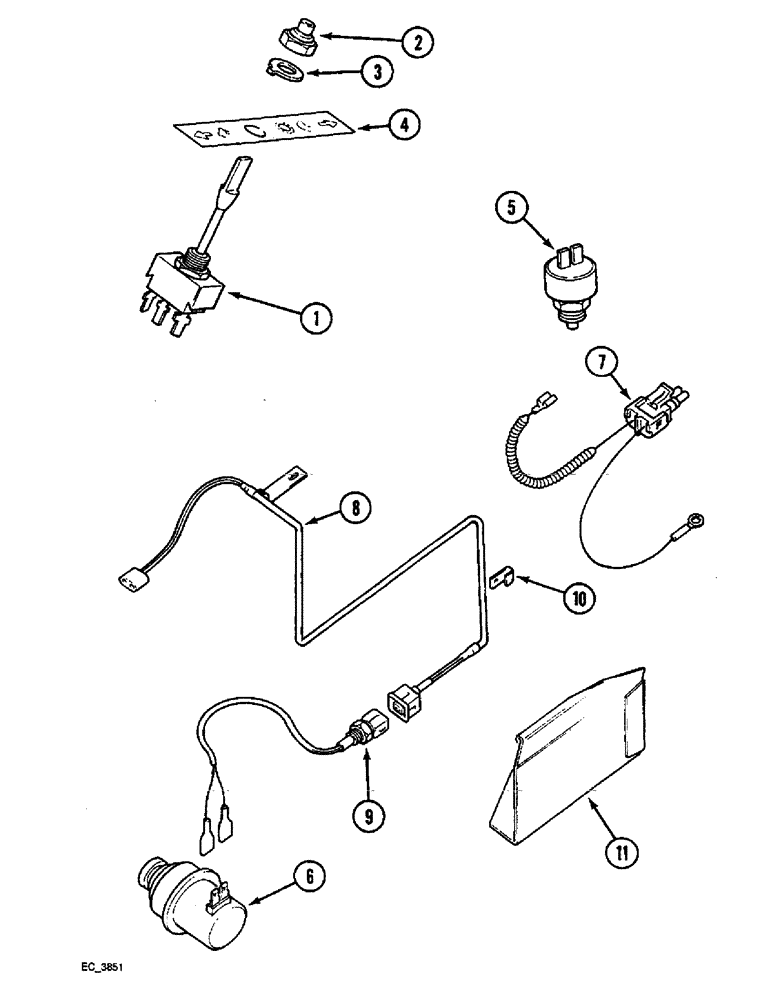

Запчасти Case IH 4240 (4-36) - BULKHEAD ELECTRICS, TRACTOR WITH CAB (04) - ELECTRICAL SYSTEMS

34

1536091C2

FLASHER UNIT

UNIT - flasher, warning lights (Pektron)

1шт.

35

440-11010

SCREW,Phillips Drive, Pan HD, #10 - 24 x 5/8"

1шт.

36

492-11010

LOCK WASHER,#10

WASHER, LOCK, #10

1шт.

37

225-14110

NUT,#10-24

1шт.

38

1536894C1

HARNESS

ASSEMBLY - flasher unit, to turn switch

1шт.

39

1983245C1

MODULE

- module

1шт.

40

3401412R1

CABLE

- ground, Serial Range: cab-skid

1шт.

41

614-8014

BOLT,Hex, M8 x 1.25 x 14mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 14 mm

1шт.

42

825-1408

NUT,M8, Cl 8

1шт.

43

893-11008

LOCK WASHER,Ext Tooth, M8

WASHER, LOCK, Ext Tooth, M8

1шт.

44

141722A1

CABLE

- clean, ground, Serial Range: -JJE0918095

1шт.

45

1987452C1

RELAY

- safety start, 12 volt, 70 amp

1шт.

46

230498A1

LARGE PLATE

PLATE - bulkhead connections

1шт.

47

225347C1

NUT

- ITT connector

2шт.
