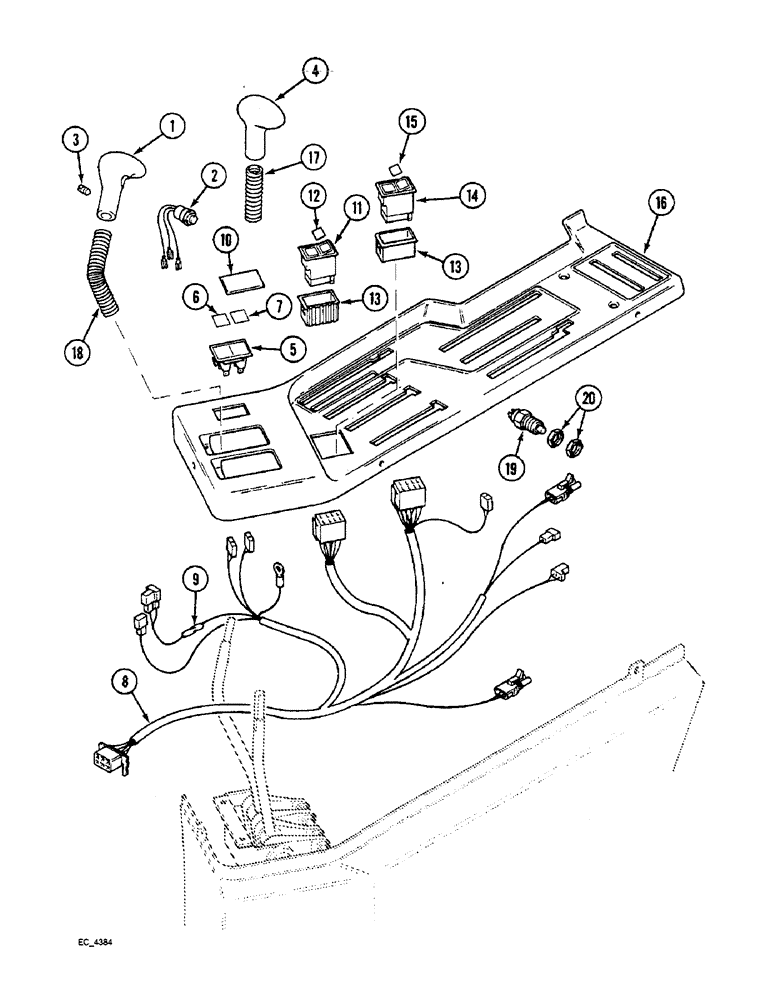

Запчасти Case IH 4240 (4-30) - SIDE CONTROL CONSOLE, TRACTOR WITH CAB (04) - ELECTRICAL SYSTEMS

1

118558A2

BALL KNOB

KNOB - lever, (Without 2 speed power shift)

1шт.

1

118557A2

BALL KNOB

KNOB - lever, (With 2 speed power shift), Includes; Ref. 2 and 3

1шт.

2

127768A2

SWITCH

- 2 speed power shift)

1шт.

3

878-2058

SET SCREW,Hex Skt, M5 x 8mm, Cone Pt

SCREW - 5 mm x 8 mm

1шт.

4

118551A2

BALL KNOB

KNOB - lever, range (Without forward and reverse)

1шт.

4

118550A2

BALL KNOB

KNOB - lever, range (With forward and reverse)

1шт.

5

1534200C1

INDICATOR

SWITCH - indicator

1шт.

138188A1

RESERVOIR

REFLECTOR - switch (Not shown)

1шт.

NSS

NOT SOLD SEPARAT

BULB - Not shown (Order 1534200C1)

1шт.

6

128203A1

SYMBOLS

INSERT - lens, fast (Rabbit)

1шт.

7

128202A1

SYMBOLS

INSERT - lens, slow (Turtle)

1шт.

8

134810A3

HARNESS

- side control panel, Includes: Ref. 9

1шт.

9

1537541C1

DIODE

- turn signal, rectifier

1шт.

10

245918C1

LENS

PLUG - blanking, rocker switch

1шт.

11

3405831R1

TOGGLE SWITCH

SWITCH - differential lock

1шт.

12

1983274C1

SYMBOLS

LENS - differential lock

1шт.

13

125048A1

DOOR COVER

HOLDER - differential lock, switch

1шт.

14

1964835C1

SWITCH ASSY

SWITCH - rocker, MFD

1шт.

15

1964651C1

SYMBOLS

LENS - switch, product graphic, MFD

1шт.

16

114732A5

COVER

CONSOLE - side panel control (See Figure 9-16)

1шт.

17

129421A2

LOOM

COVER - range lever (See Figure 6-68)

1шт.

18

129423A2

LOOM

COVER - speed lever (See Figure 6-68)

1шт.

19

115206A1

LIMIT SWITCH

SWITCH - safety start, PTO

1шт.

20

125081A1

NUT

- hex, 5/8 inch

2шт.
