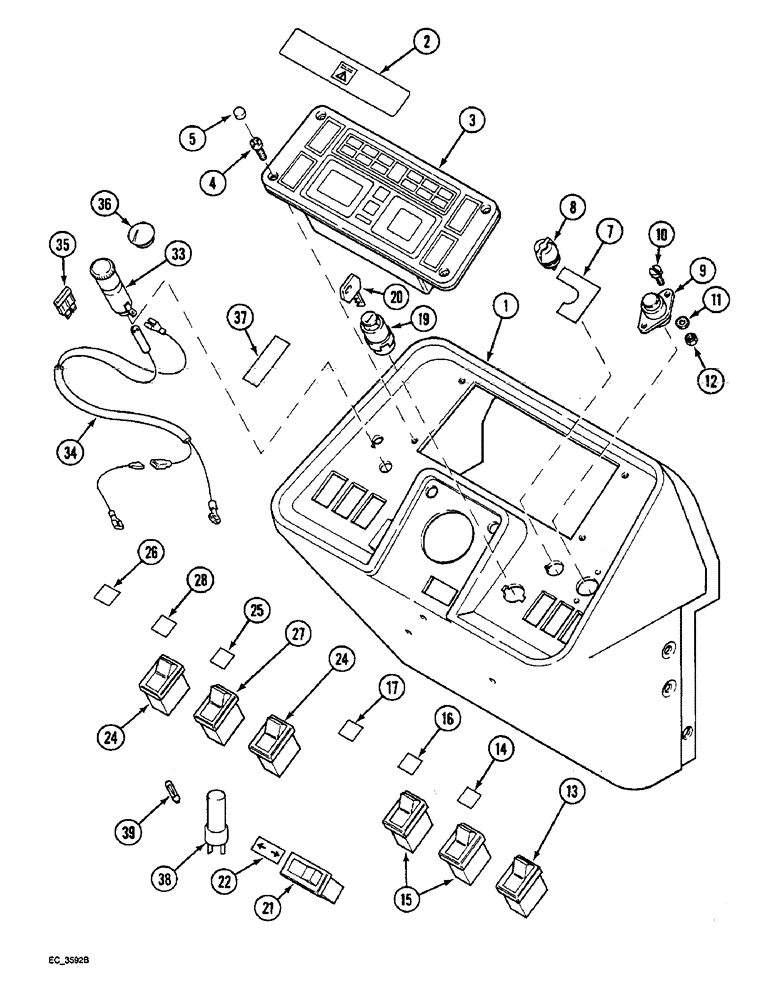

Запчасти Case IH 4240 (4-28) - INSTRUMENTS AND SWITCHES, TRACTOR WITH CAB (04) - ELECTRICAL SYSTEMS

1

1536949C1

PANEL, INSTRUMENTS

HOUSING - instrument rear (See Figure 9-14), Includes: Ref. 2

1шт.

2

321-6770

DECAL

- warning, IPTO overspeed (English)

1шт.

2

321-6781

DECAL

- warning, IPTO overspeed (French)

1шт.

3

1983576C6

CLUSTER, INSTR.

CLUSTER ASSEMBLY - instruments

1шт.

4

261-14512

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/4"

SCREW - self-tapping, pan Phillips, No. 10 NC x 3/4 inch

4шт.

5

245918C1

LENS

PLUG - blanking, rocker switch

4шт.

7

1265116C1

PRODUCT GRAPHIC

DECAL - light switch (English) (See Figure 9-116)

1шт.

8

107200C2

LIGHT SWITCH

SWITCH - lamp, rotary, lights

1шт.

9

397940R93

SWITCH

- push button, horn

1шт.

10

1276057C1

SELF-TAP SCREW,Cross Pan Hd, #10 x 3/8"

SCREW - pan head, special, 10 x 3/8 inch

2шт.

11

493-41020

LOCK WASHER,Ext Tooth, #10

WASHER, LOCK, Ext Tooth, #10

2шт.

12

225-13110

NUT,#10-24

2шт.

13

91855C1

SWITCH

- rocker, headlight dip

1шт.

14

91856C1

SYMBOLS

DECAL - blue, symbol, high beam

1шт.

15

245909C1

SWITCH ASSY

SWITCH - rocker

3шт.

16

245913C1

DECAL

DECAL - symbol, rear worklight (Green)

1шт.

17

245912C1

LENS,GREEN

DECAL - symbol, front worklight (Green)

1шт.

19

A187613

IGNITION SWITCH

SWITCH - ignition, with key

1шт.

19

A187614

IGNITION SWITCH

SWITCH - ignition, with thermostart

1шт.

20

A77313

SET OF 2 KEYS

KEY - set of two, ignition switch

1шт.

21

1983638C1

FLASHER SWITCH

SWITCH - rocker, turn signal

1шт.

22

1983639C1

SYMBOL

DECAL - turn signal (Green)

1шт.

24

245911C1

TOGGLE SWITCH

SWITCH - rocker

2шт.

25

1328477C1

LENS

DECAL - symbol, rear window wipe/wash (Green)

1шт.

26

245915C1

DECAL

DECAL - symbol, windshield wipe/wash

1шт.

27

3231782R1

SWITCH

- rocker

1шт.

28

91857C1

SYMBOLS

DECAL - symbol, ether start switch (Yellow)

1шт.

33

3121407R92

LIGHTER, CIGARETTE

LIGHTER ASSEMBLY - cigar

1шт.

34

91896C1

HARNESS

- cigar lighter

1шт.

35

A149800

FUSE,10 Amp

- red, 10 ampere

1шт.

36

3129927R1

PLUG

- blanking (If cigar lighter is not fitted)

1шт.

37

1985097C2

DECAL

- creeper speed (See Figure 9-116)

1шт.

37

123616A1

DECAL

- forward and reverse (See Figure 9-116)

1шт.

38

134608A1

LAMP SOCKET

SOCKET - bulb, lamp, rocker switch, Includes: Ref. 39

1шт.

39

3141107R1

BULB,W5/1.2, 12V, 1.2W

- lamp, 2 watt, Rocker switch illumination

1шт.
