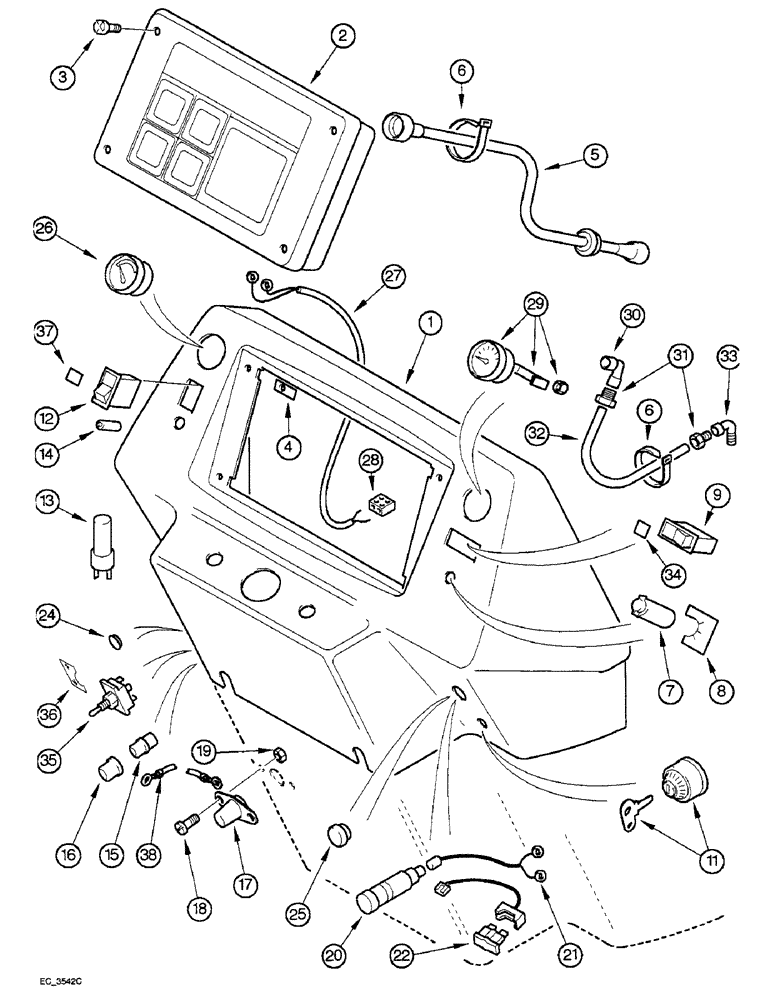

Запчасти Case IH 4240 (4-26) - INSTRUMENTS AND SWITCHES, WITH AMMETER, VOLTMETER AND OIL PRESSURE GAUGE (04) - ELECTRICAL SYSTEMS

1

140314A3

PANEL, INSTRUMENTS

HOUSING - instrument panel (See Figure 9-12)

1шт.

2

177179A1

CLUSTER, INSTR.

CLUSTER ASSEMBLY - instruments

1шт.

3

260-14520

SELF-TAP SCREW,Cross Pan Hd, #10 x 1 1/4"

SCREW - pan head Phillips, No. 10 NC x 1-1/4 inch

4шт.

4

140714A1

SPRING NUT

- spring, J-Type

4шт.

5

1500716C1

FLEXIBLE DRIVE SHAFT

CABLE - tacho drive

1шт.

6

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

1шт.

7

107200C2

LIGHT SWITCH

SWITCH - lamp

1шт.

8

1265116C1

PRODUCT GRAPHIC

DECAL - light switch (English) (See Figure 9-116)

1шт.

8

1265230C1

PRODUCT GRAPHIC

DECAL - light switch (French) (See Figure 9-116)

1шт.

9

1983638C1

FLASHER SWITCH

SWITCH - rocker, turn signal

1шт.

11

529800R91

SWITCH ASSY

SWITCH - ignition, 962338; Use With K962338 Key, Which Replaces 3110259R1 Key

1шт.

12

1964835C1

SWITCH ASSY

SWITCH - rocker, MFD, Includes: Ref. 13 and 14

1шт.

13

134608A1

LAMP SOCKET

SOCKET - bulb

1шт.

14

3141107R1

BULB,W5/1.2, 12V, 1.2W

- lamp, 2 watt

1шт.

15

705266R91

HORN

SWITCH - horn

1шт.

16

1288026C1

COVER

- horn switch

1шт.

17

397940R93

SWITCH

- push button

1шт.

18

470-1106

SCREW,Slotted Pan Hd, #10-24 x 3/8"

- pan head slotted, No. 10 NF x 3/8 inch

2шт.

19

225-14110

NUT,#10-24

2шт.

20

3121407R92

LIGHTER, CIGARETTE

LIGHTER ASSEMBLY - cigar

1шт.

21

92090C1

HARNESS

CABLE - cigar lighter

1шт.

22

A149800

FUSE,10 Amp

- red, 10 ampere

1шт.

24

353-404

PLUG,Dome, .500" hole, Nylon

1шт.

24

538239R1

PLUG

- blanking, 3/4 inch hole

1шт.

25

538240R1

PLUG

- blanking

1шт.

26

1537041C1

VOLTMETER

GAUGE - voltmeter

1шт.

27

1537111C1

HARNESS

ASSEMBLY - voltmeter

1шт.

28

1536923C1

CONTACT HOUSING,12 Way

BLOCK - terminal

1шт.

29

1332883C1

OIL PRESSURE GAUGE

GAUGE - oil pressure

1шт.

30

222-430

ELBOW,90 Degree x 1/8" NPT x 5/16"-24

- 90 degree, 1/8 tube OD x 1/8 inch

1шт.

31

222-500

TUBE NUT,5/16" - 24 NPT

NUT - hex, 1/8 tube OD x 5/16-24 inch

2шт.

32

995059R1

TUBE

- oil pressure gauge (Cut 1150 mm from 955059R2)

1шт.

955059R2

TUBE - oil pressure, 20 ft bulk length

1шт.

33

222-520

ELBOW,90 Degree x 1/8" NPT x 5/16"-20, Fem

- 90 degree, 1/8 OD x 1/8 inch

1шт.

34

1983639C1

SYMBOL

DECAL - turn signal

1шт.

35

3125854R2

DIP SWITCH

SWITCH - headlight dip

1шт.

36

1273644C1

DECAL

DECAL - dimmer switch

1шт.

37

1964651C1

SYMBOLS

LENS - switch, product graphic

1шт.

38

178726A1

ELECTRICAL WIRE

WIRE - horn switch to main harness, 100 mm

1шт.
