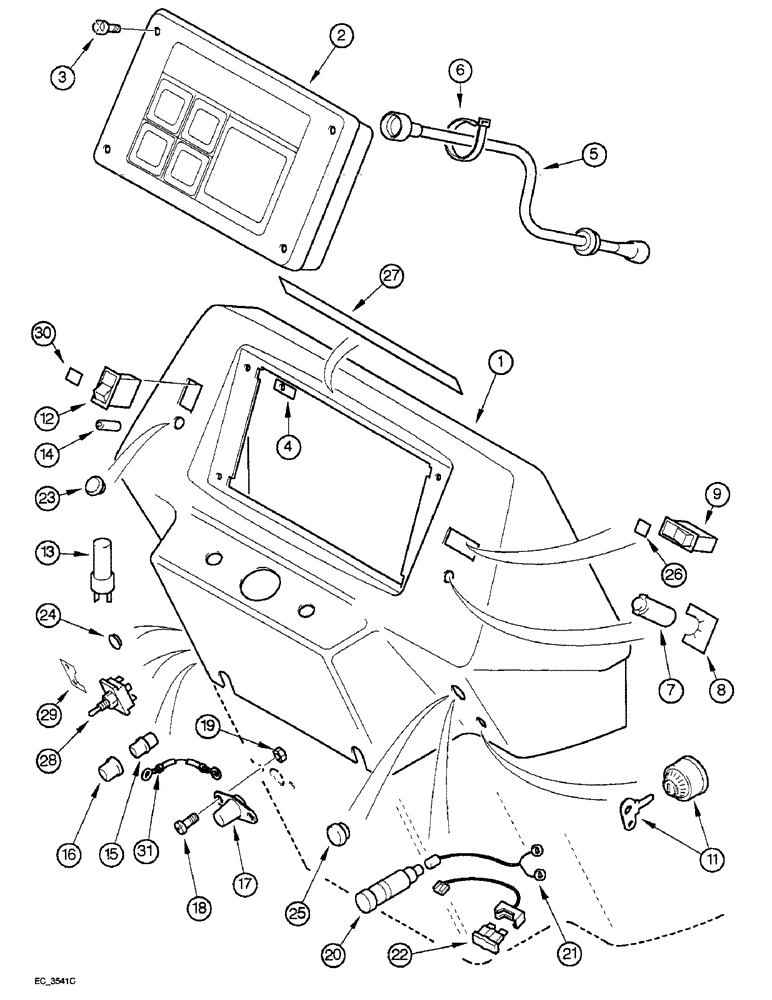

Запчасти Case IH 4240 (4-22) - INSTRUMENTS AND SWITCHES, TRACTOR WITHOUT CAB (04) - ELECTRICAL SYSTEMS

1

REF

INSTRUCTION

HOUSING - instrument panel (See Figure 9-12)

1шт.

2

177179A1

CLUSTER, INSTR.

CLUSTER ASSEMBLY - instruments

1шт.

3

260-14520

SELF-TAP SCREW,Cross Pan Hd, #10 x 1 1/4"

SCREW - pan head Phillips, No. 10 NC x 1-1/4 inch

4шт.

4

140714A1

SPRING NUT

- spring

4шт.

5

1500716C1

FLEXIBLE DRIVE SHAFT

CABLE - tacho drive

1шт.

6

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

1шт.

7

107200C2

LIGHT SWITCH

SWITCH - lamp, headlight

1шт.

8

1265116C1

PRODUCT GRAPHIC

DECAL - light switch (English) (See Figure 9-116)

1шт.

8

1265230C1

PRODUCT GRAPHIC

DECAL - light switch (French) (See Figure 9-116)

1шт.

9

1983638C1

FLASHER SWITCH

SWITCH - rocker, turn signal

1шт.

11

529800R91

SWITCH ASSY

SWITCH - ignition, 962338, with key; Use With K962338 Key, Which Replaces 3110259R1 Key

1шт.

Prior to this P/N 116601A1 was used.

1шт.

12

1964835C1

SWITCH ASSY

SWITCH - rocker, MFD, Includes: Ref. 13 and 14

1шт.

13

134608A1

LAMP SOCKET

SOCKET - bulb, lamp, rocker switch

1шт.

14

3141107R1

BULB,W5/1.2, 12V, 1.2W

- lamp, 2 watt, 12 volt 1

1шт.

15

705266R91

HORN

SWITCH - horn

1шт.

16

1288026C1

COVER

- horn switch

1шт.

17

397940R93

SWITCH

- push button, ether start

1шт.

18

470-1106

SCREW,Slotted Pan Hd, #10-24 x 3/8"

- pan head slotted, No. 10 NF x 3/8 inch

2шт.

19

225-14110

NUT,#10-24

2шт.

20

3121407R92

LIGHTER, CIGARETTE

LIGHTER ASSEMBLY - cigar (If equipped)

1шт.

21

92090C1

HARNESS

CABLE - cigar lighter

1шт.

22

A149800

FUSE,10 Amp

- red, 10 ampere

1шт.

23

3112888R1

PLUG

- blanking, 1/2 inch hole

1шт.

24

353-406

PLUG,Dome, .625" hole, Nylon

- button, blanking

1шт.

24

538239R1

PLUG

- blanking, 3/4 inch hole

1шт.

25

538240R1

PLUG

- blanking (If cigar lighter is not fitted)

1шт.

26

1983639C1

SYMBOL

DECAL - turn signal (Green)

1шт.

27

321-6832

DECAL

- IPTO overspeed

1шт.

27

141710A1

DECAL

- warning, IPTO overspeed (French)

1шт.

28

3125854R2

DIP SWITCH

SWITCH - headlight dip

1шт.

29

1273644C1

DECAL

DECAL - dimmer switch, headlight dip

1шт.

30

82525C1

DECAL

LENS - symbol, MFD switch

1шт.

31

178726A1

ELECTRICAL WIRE

WIRE - horn switch to main harness, 100 mm

1шт.
