Запчасти Case IH 4240 (4-20) - WORK LIGHTS, INTERNALLY ADJUSTABLE, TRACTOR WITH CAB (04) - ELECTRICAL SYSTEMS

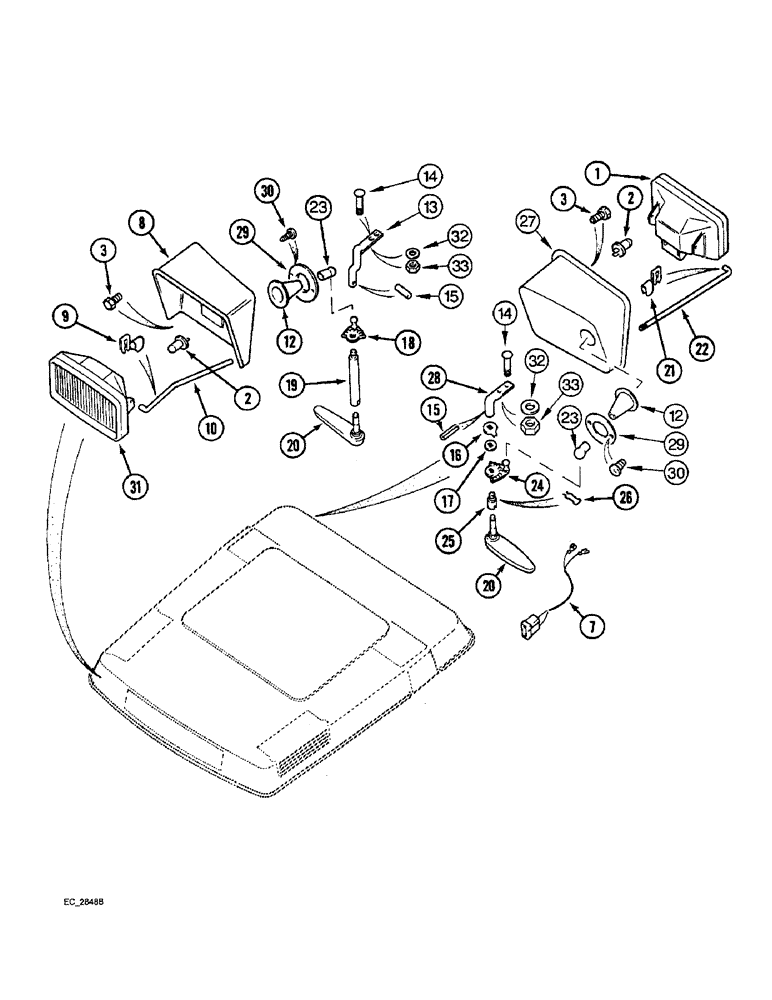

Схема запчастей Case IH 4240 - (4-20) - WORK LIGHTS, INTERNALLY ADJUSTABLE, TRACTOR WITH CAB (04) - ELECTRICAL SYSTEMS
10
24
33
23
2
22
30
28
9
19
29
29
14
13
18
20
16
15
1
15
30
32
27
17
3
3
23
33
20
8
21
31
12
12
2
32
26
14
7
25

Артикул

Название

Примечание

Количество

1

1328615C1

LAMP, WORK

LIGHT ASSEMBLY - working spot, Includes: Ref. 2

1шт.

2

1312210C2

BULB,Halogen H3, 12V, 55W

LAMP - halogen bulb, 12V/55W

1шт.

3

3234404R1

SCREW

- hex, 6.3 x 30 mm

1шт.

7

3399341R2

CABLE

- work light fly lead

1шт.

8

3233559R3

BASE

- light

1шт.

9

3234397R1

CLIP

- left

1шт.

10

3234385R92

ROD ASSY.

ROD - right front light

1шт.

12

3234153R1

GROMMET

INSULATOR - bellow

2шт.

13

3234401R1

SUPPORT

- right

1шт.

14

811-6035

CARRIAGE BOLT,Short NK, M6 x 35, Cl8.8, Full Thd

SCREW - hex head tapped, 6 mm x 35 mm

1шт.

15

738-1214

LOCK PIN,M2 x 14, Slotted

PIN - slotted spring, 2 x 14 mm

2шт.

16

3234405R1

WASHER, LOCK

SHIM - handle

2шт.

17

3233281R1

WASHER,M14 ID x 20 OD x 1 Thk

WASHER - flat

2шт.

18

3234383R1

SEGMENT

- weldment

1шт.

19

3234403R1

PIN

- worklight, front right

1шт.

20

3234375R91

HANDLE

- front and rear worklight

2шт.

21

3234398R1

CLIP

- right

1шт.

22

3234387R91

ROD ASSY.

ROD ASSEMBLY - rear right worklight, Includes: Ref. 23

1шт.

23

3233279R1

BALL JOINT

JOINT - ball

1шт.

24

3234389R1

BRACKET

SEGMENT - weldment

1шт.

25

3234406R1

PIN

- rear right worklight

1шт.

26

3234400R1

CLIP

- spring

1шт.

27

3233557R3

BASE

- light

1шт.

28

3234402R1

SUPPORT

- rear light, right

1шт.

29

1990575C1

PACKING RING

RETAINER - insulator bellows

2шт.

30

3405477R1

SELF-TAP SCREW,Pan Hd, M4.8 x 16

SCREW - Hi-Lo 4.8 x 16 mm

4шт.

31

1987375C2

LAMP, WORK

LIGHT ASSEMBLY - work front right (ABL), Includes: Ref. 32

1шт.

1312210C2

BULB,Halogen H3, 12V, 55W

LAMP - halogen bulb, 12V/55W (Not shown)

1шт.

1987493C1

BEZEL

HOUSING - (Not shown)

1шт.

32

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

1шт.

33

825-1406

NUT,M6, Cl 8

1шт.

Выбрано товаров: 31
