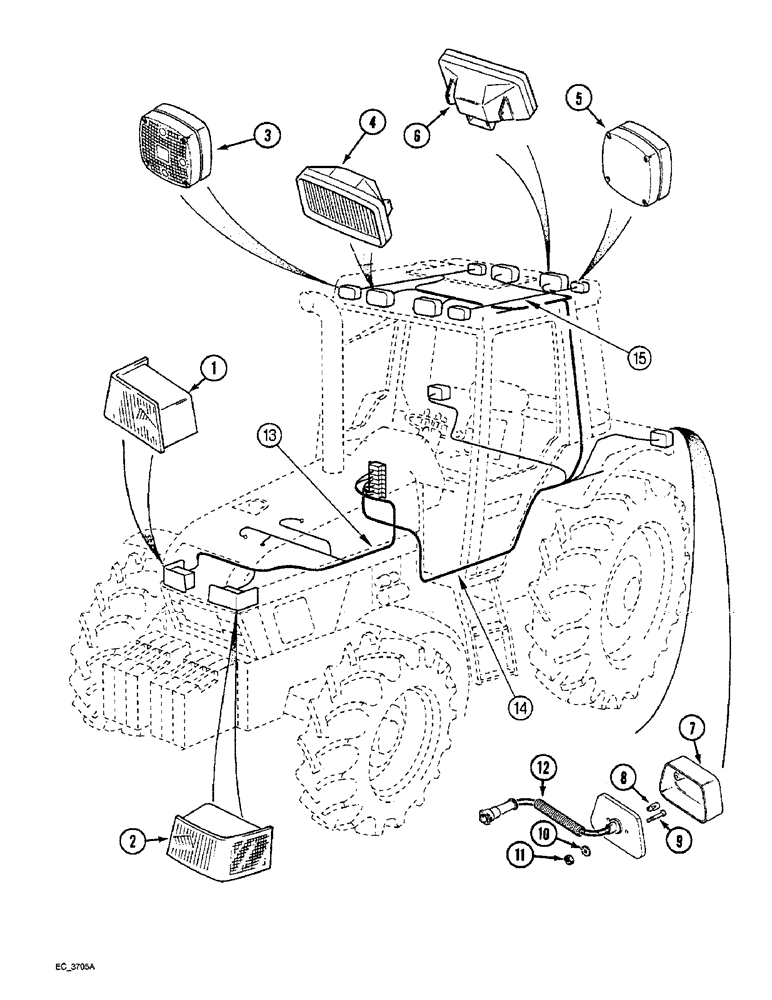

Запчасти Case IH 4240 (4-10) - LIGHTS AND HARNESS, TRACTOR WITH CAB (04) - ELECTRICAL SYSTEMS

1

1964881C2

HEADLIGHT

LIGHT - head, without bulb, right (See Figure 4-16)

1шт.

2

1964882C2

HEADLIGHT

LIGHT - head, without bulb, left (See Figure 4-16)

1шт.

3

1983404C1

LIGHT ASSY.

LIGHT - flasher warning, front (See Figure 4-18)

2шт.

4

140444A2

HEADLIGHT

LIGHT ASSEMBLY - flood, front (See Figure 4-18)

2шт.

5

1983404C1

LIGHT ASSY.

LIGHT - flasher warning, rear (See Figure 4-18)

2шт.

6

140444A2

HEADLIGHT

LIGHT ASSEMBLY - flood, rear (See Figure 4-18)

2шт.

91805C91

LAMP

LIGHT ASSEMBLY - tail, Includes: Ref. 7 and 8

2шт.

7

91929C1

LENS

- red, tail

1шт.

8

D71346

TAIL LAMP,12V

BULB - lamp, No. 168

1шт.

9

31108R1

SCREW,Cross Pan Hd, M5 x 30

- pan, 5 mm - 0.80 x 30 mm

4шт.

10

893-11005

LOCK WASHER,Ext Tooth, M5

WASHER - external tooth lock, 5 mm

4шт.

11

824-1405

NUT,M5, Cl 5

4шт.

12

91860C3

HARNESS

- tail light

2шт.

13

1537879C2

HARNESS

ASSEMBLY - main cable, front, Serial Range: -JJE0913677

1шт.

13

189877A1

HARNESS

ASSEMBLY - main cable, front, Serial Range: JJE0913678-JJE0918095

1шт.

13

228172A1

HARNESS

- engine, Start Serial: JJE0918096

1шт.

14

1987425C6

HARNESS

ASSEMBLY - main cab, Serial Range: -JJE0918095

1шт.

14

228401A1

HARNESS

ASSEMBLY - main cab, Start Serial: JJE0918096

1шт.

15

1987342C1

HARNESS

- turn signal

2шт.
