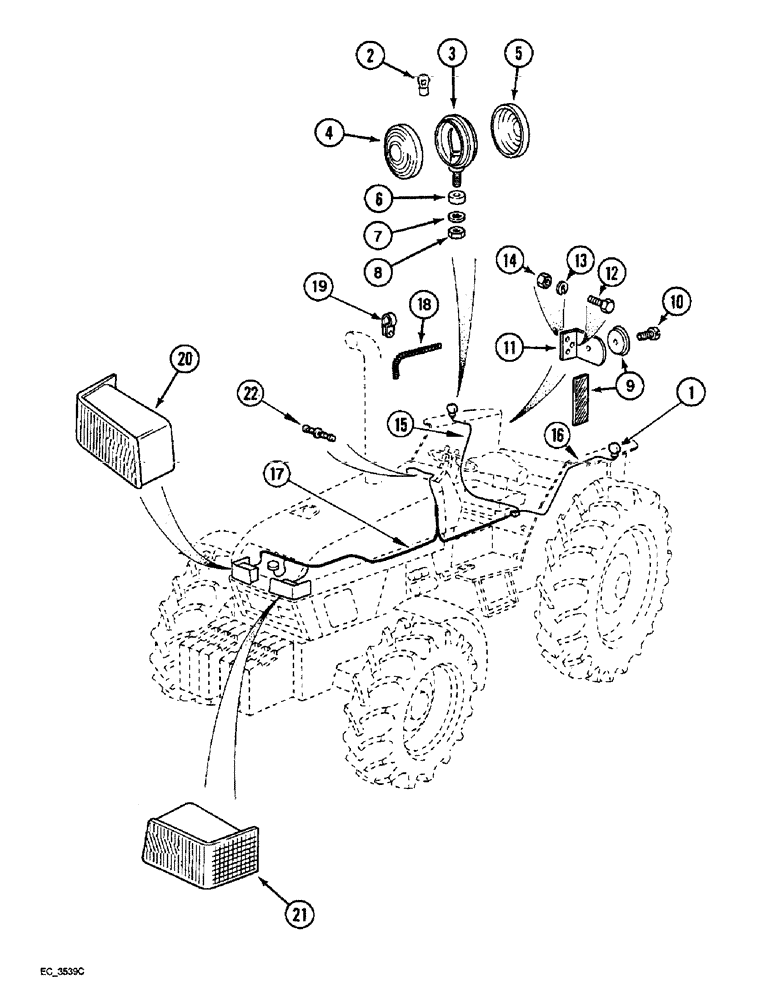

Запчасти Case IH 4240 (4-06) - LIGHTS AND HARNESS, CROWN TOP FENDERS (04) - ELECTRICAL SYSTEMS

1

67538C92

HEADLIGHT

LIGHT ASSEMBLY - flasher, 1/2 inch stud

2шт.

A41264

BULB,#1156, 12V

Lamp, Single contact, Single filament, Not illustrated #1156, 12V

1шт.

394262R1

WASHER

GASKET - light, 1/2 inch (Not illustrated)

1шт.

493-21052

LOCK WASHER,Int Tooth, 1/2"

WASHER - internal tooth lock, 1/2 inch

1шт.

425-158

JAM NUT,Jam, 1/2"-20, G5

(Not illustrated) Jam, 1/2"-20, G5

1шт.

NSS

NOT SOLD SEPARAT

LIGHT ASSEMBLY - flasher 7/16 inch stud (Order 67538C92), Includes: Ref. 2 - 8

2шт.

2

A41264

BULB,#1156, 12V

Lamp, Single contact, Single filament #1156, 12V

1шт.

3

NSS

NOT SOLD SEPARAT

HOUSING - flasher light

1шт.

4

3112682R1

LENS

- rear, amber

1шт.

5

3112683R1

LENS

- front, amber

1шт.

6

238-6239

O-RING,0.139" Thk x 3.609" ID, -239, Cl 6, 90 Duro

2шт.

7

493-21046

LOCK WASHER,Int Tooth, 7/16"

WASHER - internal tooth lock, 7/16 inch

1шт.

8

425-157

JAM NUT,Jam, 7/16"-20, G5

1шт.

9

3118665R2

REFLECTOR

- red (Round)

2шт.

9

1284374C1

REFLECTOR,Reflector Red

- red (Rectangle)

2шт.

10

260-5458

SELF-TAP SCREW,Cross Pan Hd, #10 x 1/2"

SCREW - self-tapping, pan Phillips, No. 10-16 x 1/2 inch

2шт.

11

3125247R3

BRACKET

- reflector mounting

2шт.

12

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

13

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

14

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

15

3123678R2

HARNESS

- fender, right

1шт.

16

1537603C1

HARNESS

- fender, left (Crown top fenders)

1шт.

17

144206A2

HARNESS

ASSEMBLY - main cable

1шт.

18

NSS

NOT SOLD SEPARAT

CONDUIT - insulated, 318 mm (Cut from 1536137C1)

1шт.

1536137C1

LOOM,11.5 mm ID, 15.5 mm OD, 635 mm Length

CONDUIT - insulated convolute (Bulk length), 635 mm

1шт.

19

316433C1

CLAMP

CLIP - cable, 0.50 diameter, (Without ROPS)

2шт.

19

362120R1

CLAMP,9.53mm ID, 10.32mm Bolt Hole, P Type

CLAMP - P-Type, cable (With ROPS)

6шт.

20

1964881C2

HEADLIGHT

LIGHT - head, without bulb, right (See Figure 4-16)

1шт.

21

1964882C2

HEADLIGHT

LIGHT - head, without bulb, left (See Figure 4-16)

1шт.

22

1537541C1

DIODE

- turn signal, rectifier

1шт.
