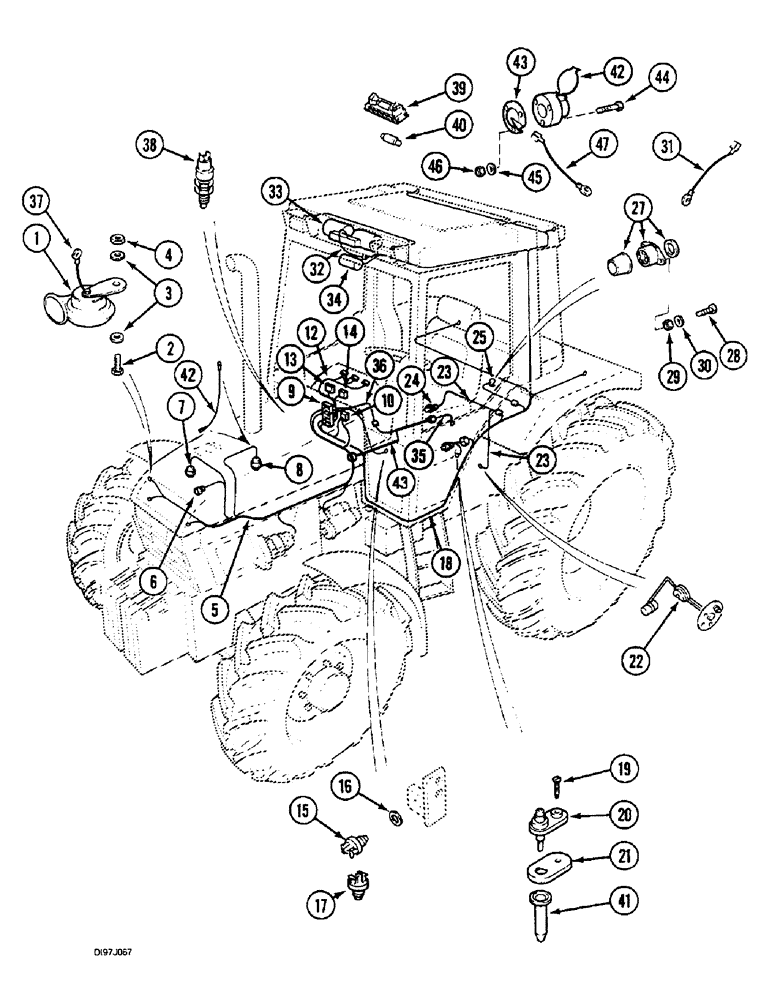

Запчасти Case IH 4240 (4-04) - CHASSIS HARNESS AND SWITCHES, TRACTOR WITH CAB (04) - ELECTRICAL SYSTEMS

1

237582A1

HORN

- black

1шт.

2

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

- hex, 1/4 NC x 3/4 inch

2шт.

3

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

2шт.

4

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

2шт.

5

1537879C2

HARNESS

ASSEMBLY - main cable, Serial Range: -JJE0913677

1шт.

5

189877A1

HARNESS

ASSEMBLY - main cable, Serial Range: JJE0913678-JJE0918095

1шт.

5

228172A1

HARNESS

- engine, Start Serial: JJE0918096

1шт.

6

3224405R91

RESTRICTION SWITCH

SWITCH - air cleaner restriction indicator (See Figure 2-24)

1шт.

7

A187687

TEMPERATURE SENDER

TRANSMITTER - water temperature

1шт.

8

91450C1

SWITCH, PRESSURE

SWITCH ASSEMBLY - engine oil pressure

1шт.

9

3399527R2

CONNECTOR, ELEC

CONNECTOR - bulkhead (See Figure 4-34)

1шт.

10

403069R1

CIRCUIT-BREAKER,30A

BREAKER - circuit, 30 ampere (See Figure 4-34)

1шт.

12

141468A1

HARNESS

ASSEMBLY - instrument panel, Serial Range: -JJE0918095

1шт.

12

230254A1

HARNESS

ASSEMBLY - instrument panel, Start Serial: JJE0918096

1шт.

13

NSS

NOT SOLD SEPARAT

BLOCK - fuse (See Figure 4-34)

1шт.

14

NSS

NOT SOLD SEPARAT

BLOCK - mounting, relay (See Figure 4-34)

1шт.

15

3114409R92

NEUTRAL START SWITCH

SWITCH - plunger, neutral starting

1шт.

16

Q3476

WASHER

- flat, 19/32 x 15/16 x 1/64 inch

1шт.

17

231262A1

SWITCH

- plunger, 18 mm (2 speed power shift / stop light)

1шт.

18

1987425C6

HARNESS

ASSEMBLY - main cab, Serial Range: -JJE0918095

1шт.

18

228401A1

HARNESS

ASSEMBLY - main cab, Start Serial: JJE0918096

1шт.

19

765-14322

SELF-TAP SCREW,Oval Hd, M4.2 x 22

SCREW - tapping, oval cross recess, 4.2 x 22 mm

1шт.

20

1534229C1

PUSH BUTTON SWITCH

SWITCH - plunger, handbrake warning

1шт.

21

1534230C1

LARGE PLATE

PLATE - park brake, switch

1шт.

22

134122A1

SENDER UNIT

TRANSMITTER - sender, fuel level (See Figure 3-20)

1шт.

23

131306A1

HARNESS

- diff lock/fuel tank sender

1шт.

24

3147137R1

SWITCH

SWITCH - differential lock

1шт.

25

91919C4

HARNESS

- 7 pin socket

1шт.

27

121645C1

MULTIPOLE CONNECTOR,7 Pin

SOCKET - covered, , with boot 7 Pin

1шт.

28

614-6025

BOLT,Hex, M6 x 1 x 25mm, Cl 8.8, Full Thd

2шт.

29

829-1306

NUT,M6, Cl 10

- hex, 6 mm - 1.0, class 10

2шт.

30

495-31022

WASHER,#10

2шт.

31

1537714C1

CABLE

- ground 7 pin socket

1шт.

32

140591A1

HARNESS

- air conditioning (4210/4230)

1шт.

33

1977564C2

BLOWER

- cab, air conditioning (4210/4230) (See Figure 9-70)

1шт.

33

355190A1R

REMAN-BLOWER,12V

Reman for New PN 1977564C2

1шт.

33

355190A1C

CORE-BLOWER,12V

Return Number

1шт.

34

3401302R93

WIPER MOTOR

MOTOR - windshield wiper (See Figure 9-74)

1шт.

35

REF

INSTRUCTION

CABLE - MFD solenoid (See Figure 4-40)

1шт.

36

92118C1

CABLE

- MFD solenoid, to bulkhead (See Figure 4-38)

1шт.

37

3117533R1

CABLE

-, Serial Range: horn,-ground

1шт.

38

115206A1

LIMIT SWITCH

SWITCH - brake light

1шт.

39

1983391C1

LAMP,12V, 10W

ASSEMBLY - dome, Includes: Ref. 40

1шт.

40

710196R1

BULB,C5W, 12V, 5W

LAMP - C11, 12 volt/5 watt, festoon

1шт.

41

1534251C1

BELLOWS

BELLOW - park brake switch

1шт.

42

223990A1

ELECTRICAL WIRE

WIRE - oil switch extension (If equipped)

1шт.

43

228173A1

HARNESS

- transmission, Start Serial: JJE0918096

1шт.
