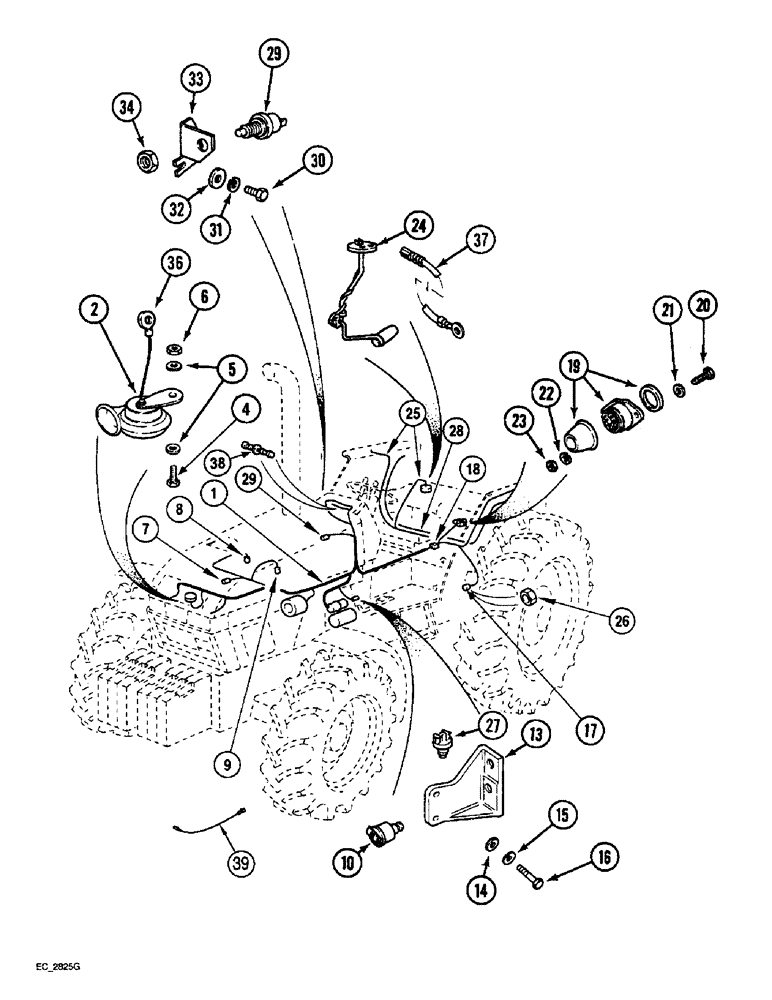

Запчасти Case IH 4240 (4-02) - CHASSIS HARNESS AND SWITCHES, TRACTOR WITHOUT CAB (04) - ELECTRICAL SYSTEMS

1

144206A2

HARNESS

ASSEMBLY - main cable

1шт.

2

237582A1

HORN

- black

1шт.

4

413-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 5

1шт.

5

495-11028

WASHER,1/4", SAE

(flat, 9/32 x 5/8 x 1/16") 1/4", SAE

2шт.

6

231-1444

NUT,1/4"-20, GB

NUT, LOCK, 1/4"-20, GB

1шт.

7

3224405R91

RESTRICTION SWITCH

SWITCH - air cleaner restriction indicator (See Figure 2-24)

1шт.

8

3127956R1

TEMPERATURE SENDER

TRANSMITTER - water temperature

1шт.

9

91450C1

SWITCH, PRESSURE

SWITCH ASSEMBLY - engine oil pressure (On oil filter base)

1шт.

10

3114409R92

NEUTRAL START SWITCH

SWITCH - plunger

1шт.

13

1536664C1

SUPPORT

BRACKET - neutral starting switch

1шт.

14

95-11041

WASHER,3/8"

flat (13/32 x 13/16 x 1/16") 3/8"

2шт.

15

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

16

13-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5, Full Thd

2шт.

17

231262A1

SWITCH

- plunger, 18 mm, park brake warning

1шт.

18

REF

INSTRUCTION

CABLE - MFD solenoid (See Figure 4-40)

1шт.

19

121645C1

MULTIPOLE CONNECTOR,7 Pin

SOCKET - covered, , with boot 7 Pin

1шт.

20

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

21

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16")

2шт.

22

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

23

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

24

143557A1

SENDER UNIT

TRANSMITTER - fuel gauge, Warner

1шт.

25

3123678R2

HARNESS

- fender, right (Crown top fenders)

1шт.

25

1537603C1

HARNESS

- fender, left (Crown top fenders)

1шт.

25

1536337C1

HARNESS

- fender, right (Flat top fenders)

1шт.

25

1537602C1

HARNESS

- fender, left (Flat top fenders)

1шт.

26

1332725C1

NUT

M18

1шт.

27

231261A1

NEUTRAL START SWITCH

SWITCH - plunger, 3/4 In NC (2 speed power shift)

1шт.

28

1537163C1

HARNESS

- stop and tail light feed

1шт.

29

231262A1

SWITCH

- plunger, 18 mm, brake light

1шт.

30

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

Brake switch bracket Hex, 3/8"-16 x 7/8", G5, Full Thd

2шт.

31

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

2шт.

32

95-11041

WASHER,3/8"

flat (13/32 x 13/16 x 1/16") 3/8"

2шт.

33

1332723C2

SUPPORT

BRACKET - brake light switch

1шт.

34

1332725C1

NUT

M18

1шт.

36

3117533R1

CABLE

- horn, earth

1шт.

37

143556A1

CABLE

-, Serial Range: gauge-fender

1шт.

38

1537541C1

DIODE

- turn signal, rectifier (If equipped)

1шт.

39

223990A1

ELECTRICAL WIRE

WIRE - oil switch extension (If equipped)

1шт.
