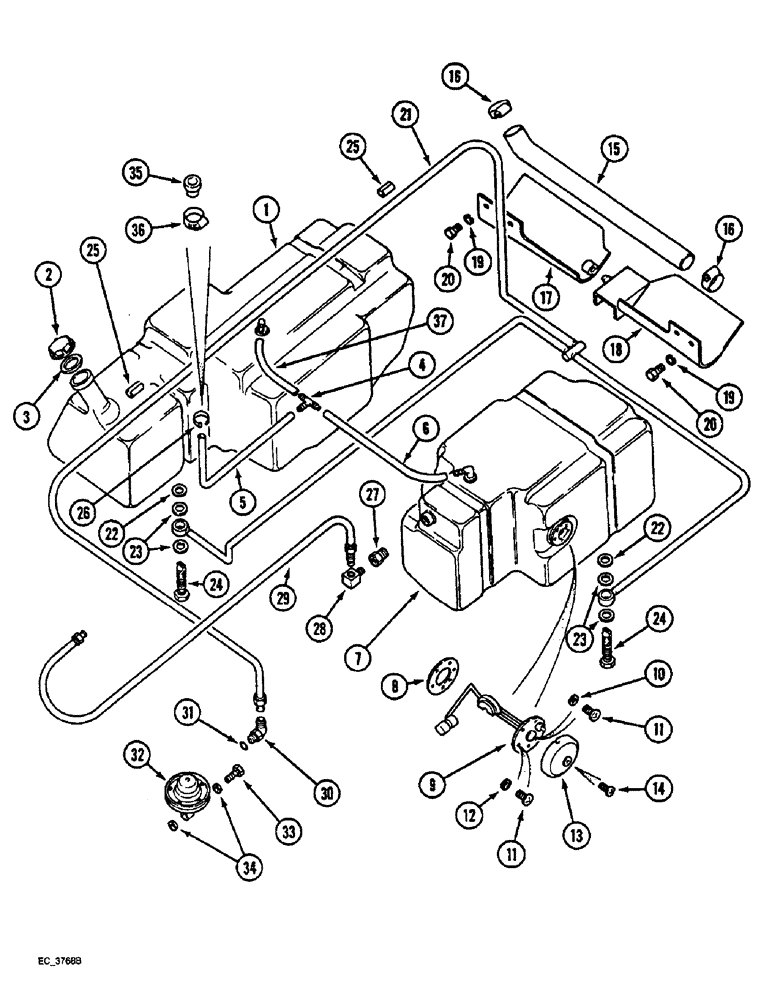

Запчасти Case IH 4240 (3-20) - FUEL TANK AND FUEL LINES, TRACTORS WITH CAB (03) - FUEL SYSTEM

1

1500252C94

TANK

ASSEMBLY - fuel, right, Includes: Ref. 2 and 3

1шт.

2

1500254C1

CAP

ASSEMBLY - fuel filler

1шт.

2

255345A1

PLUG

CAP - fuel filler, oversize, Includes: Ref. 3

1шт.

3

140756A1

GASKET

- fuel, cap

1шт.

4

1500292C1

UNION

TEE - hose, barbed, Serial Range: -JJE0914621

1шт.

5

1500288C1

HOSE

- breather, Serial Range: -JJE0914621

1шт.

5

225016A1

HOSE

- breather, 750 mm, Start Serial: JJE0914622

2шт.

6

1500290C1

HOSE

- breather, left tank, Serial Range: -JJE0914621

1шт.

7

1500251C2

TANK

ASSEMBLY - fuel, left

1шт.

8

528359R3

GASKET

- sending unit

1шт.

9

134122A1

SENDER UNIT

TRANSMITTER - sender, fuel level

1шт.

10

796002R1

COPPER WASHER

WASHER - copper, sender unit ground

1шт.

11

490-1106

SCREW,Cross Pan Hd, #10-32 x 3/8"

- machine, pan head Phillips, No. 10 NF x 3/8 inch

5шт.

12

495-31022

WASHER,#10

Sending unit cover #10

5шт.

13

134124A1

CAP

COVER - sending unit

1шт.

14

260-54312

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/4"

SCREW, SELF TAPPING, Cross Pan Hd, #6 x 3/4"

1шт.

15

1500325C1

FUEL HOSE,30.00 mm ID x 410.00 mm, SAE 30R1

Fuel Tank Balance 30.00 mm ID x 410.00 mm, SAE 30R1

1шт.

16

214-1424

HOSE CLAMP,#24, 1.06" - 2", Type F Worm

CLAMP, HOSE, #24, 1.06/2.00 Type F Worm

2шт.

17

82721C1

GUARD

SHIELD - fuel balance pipe, right

1шт.

18

82723C1

GUARD

SHIELD - fuel balance pipe, left

1шт.

19

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

4шт.

20

614-8012

BOLT,Hex, M8 x 1.25 x 12mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 12 mm

4шт.

21

99795C2

PIPE

- fuel feed to fuel filter

1шт.

22

933610R1

SEALING RING,M14 x 18 x 1.8

2шт.

23

1282576C1

RING

- sealing, 14 x 22 mm

4шт.

24

1500329C1

BOLT,74mm

- banjo

2шт.

25

673171C1

RUBBER BUSHING

SLEEVE - rubber

2шт.

26

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

1шт.

27

1500333C1

ADAPTER,3/8"-18 NPT Fem x M14 x 1.5 Male

- fuel return pipe

1шт.

28

528929R1

CHECK VALVE

VALVE - check

1шт.

29

99871C3

PIPE

ASSEMBLY - fuel return

1шт.

30

218-5104

ELBOW,90 Degree Elbow, 1/2" - 20 Male JIC x 1/2" - 20 Male ORB

- 90 degree, 1/2-20 inch flare x Adj O-Ring boss

1шт.

32

1202938C92

FEED PUMP

PUMP ASSEMBLY - hand primer

1шт.

33

1203398C1

BANJO BOLT

BOLT, BANJO

1шт.

34

1203399C1

SEALING WASHER

- sealing

2шт.

37

1500291C1

HOSE

- breather, right tank, Serial Range: -JJE0914621

1шт.

37

280145A1

LARGE HOSE

TUBE - fuel tank, ventilation, right tank, Start Serial: JJE0914622

1шт.

31

237-6005

O-RING,0.072" Thk x 0.414" ID, -905, Cl 6, 90 Duro

5-1, 90 Duro, .414" ID x .072" Thk

1шт.
