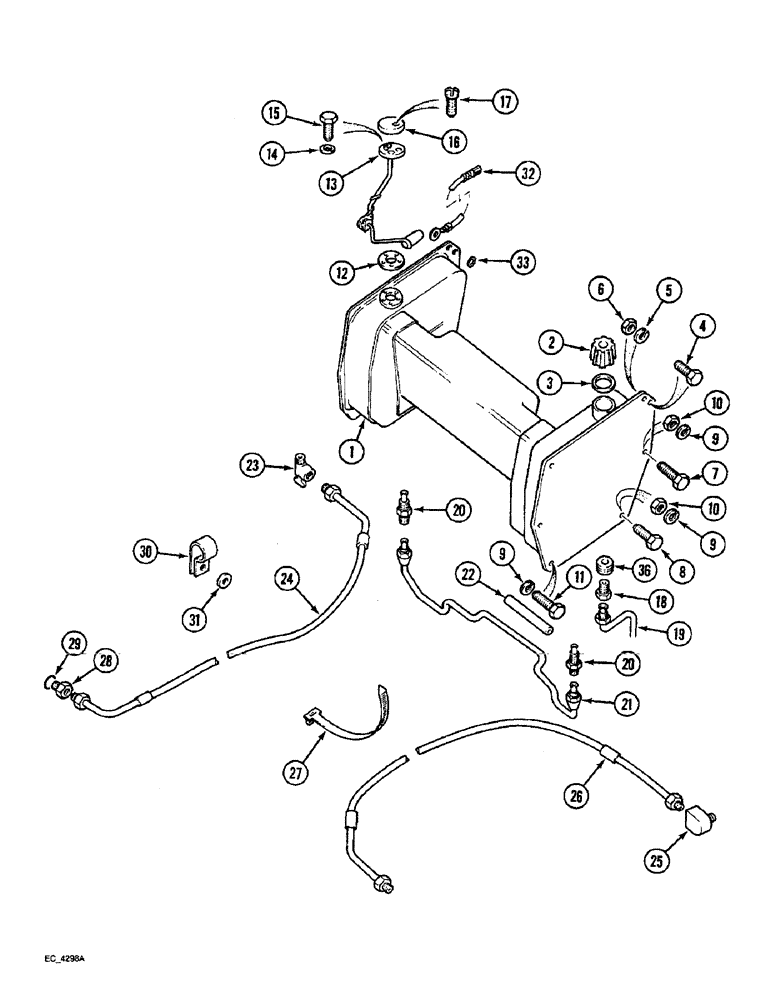

Запчасти Case IH 4240 (3-18) - FUEL TANK AND FUEL LINES, TRACTOR WITHOUT CAB (03) - FUEL SYSTEM

536035R94

FUEL TANK

TANK ASSEMBLY - fuel, with filler cap, Includes: Ref. 1 - 3

1шт.

1

531125R4

FUEL TANK

TANK - fuel, without filler cap

1шт.

2

538063R1

PLUG

CAP ASSEMBLY - fuel tank filler

1шт.

3

23977DD

GASKET,47.5mm ID x 65.89mm OD x 2.39mm Thk

- fuel cap

1шт.

4

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

4шт.

5

492-11038

LOCK WASHER,3/8"

4шт.

6

425-106

NUT,3/8"-16, Cl 5

4шт.

7

413-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch

2шт.

8

413-510

BOLT,Hex, 5/16" - 18 x 5/8", Gr 5

- hex, 5/16 NC x 5/8 inch

6шт.

9

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

10шт.

10

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

10шт.

11

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

12

528359R3

GASKET

- sending unit

1шт.

13

143557A1

SENDER UNIT

TRANSMITTER - fuel gauge, Warner

1шт.

14

533199R1

SEALING WASHER

- sending unit cover

1шт.

15

440-1108

SCREW,Cross Pan Hd, #10-24 x 1/2"

- machine, pan Phillips, No. 10 NC x 1/2 inch

1шт.

15

463-1108

SCREW,Hex Hd, #10-24 x 1/2"

- machine, hex head, No. 10 NC x 1/2 inch

1шт.

16

134124A1

CAP

COVER - sending unit

1шт.

17

260-54312

SELF-TAP SCREW,Cross Pan Hd, #6 x 3/4"

SCREW, SELF TAPPING, Cross Pan Hd, #6 x 3/4"

1шт.

18

222-1014

HYD CONNECTOR,1/2"-20 Inv Fl x 1/8" NPT

UNION - connector

1шт.

19

539938R1

VENTILATION PIPE

TUBE - assembly, ventilation (If equipped)

1шт.

20

1502069C1

PIPE

ASSEMBLY - clearance

2шт.

21

1502067C2

PIPE,0.312" OD, 811.5, 96.5 mm Length

TUBE ASSEMBLY - crossover

1шт.

22

NSS

NOT SOLD SEPARAT

HOSE - rubber, 10 inch (Order 87086C1 and, Serial Range: cut-length)

1шт.

87086C1

RADIATOR HOSE,7.90 mm ID

HOSE, 7.90 mm ID

1шт.

23

528926R1

VALVE,1/2" - 20 x 3/8" - 18 NPTF

ASSEMBLY - shut-off

1шт.

24

1536103C1

PIPE,8 mm OD, 2200, 42 mm Length

ASSEMBLY - fuel return, plastic

1шт.

25

81826683

ELBOW,5/16" Inverted Flare

Elbow, 90 DEG, Rear Fuel Return Tube

1шт.

26

1536098C1

FUEL HOSE,8 mm OD, 2340, 40 mm Length

ASSEMBLY - front, fuel return, plastic

1шт.

27

22-824

CABLE TIE,3/16" x 7 1/4"

STRAP - tie, 7 inch

4шт.

28

3056600R1

ADAPTER

ADAPTOR - filter

1шт.

29

933610R1

SEALING RING,M14 x 18 x 1.8

1шт.

30

316433C1

CLAMP

CLIP - cable, 0.50 diameter, pipe, (If equipped)

1шт.

31

495-11034

WASHER,5/16", SAE

5/16" SAE (flat, 11/32 x 11/16 x 1/16"), Clip, (If equipped)

1шт.

32

143556A1

CABLE

-, Serial Range: gauge-fender

1шт.

33

893-11008

LOCK WASHER,Ext Tooth, M8

WASHER, LOCK, Ext Tooth, M8

1шт.

36

538393R1

FILLER CAP

PLUG - hex socket, 1/8 inch NPTF, blanking, (If equipped)

1шт.
