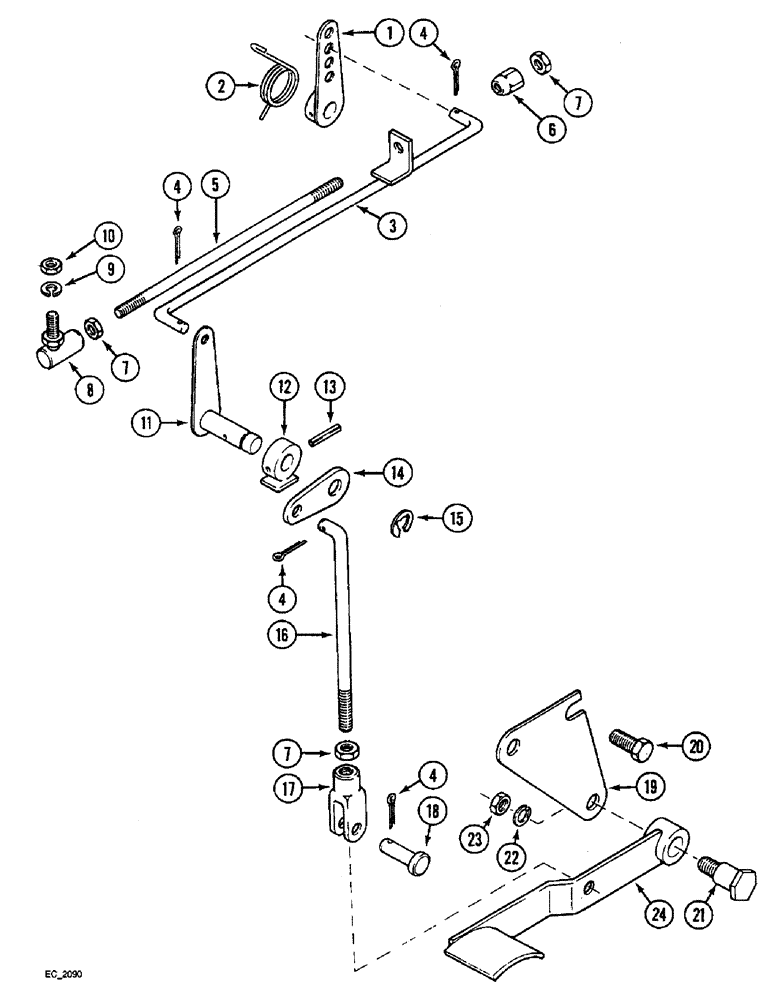

Запчасти Case IH 4240 (3-14) - FOOT ACCELERATOR, TRACTOR WITHOUT CAB (03) - FUEL SYSTEM

1

539572R3

LEVER ASSY.

LEVER ASSEMBLY - idler arm

1шт.

2

539012R2

SPRING

- torsion

1шт.

3

528767R1

ROD ASSY.

ROD - pull, Bellcrank

1шт.

4

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

4шт.

5

528775R3

ROD

- pick-up, foot accelerator

1шт.

6

528776R1

NUT

- swivel, foot accelerator pick-up rod

1шт.

7

425-154

JAM NUT,Jam, 1/4"-28, G5

- hex, jam, 1/4 inch NF

3шт.

8

276835R91

BALL JOINT,1/4" - 28 x 1"

JOINT - ball C type, 1/4 inch

1шт.

9

492-11025

LOCK WASHER,1/4"

WASHER, LOCK, 1/4"

1шт.

10

425-114

NUT,1/4"-28, G5

1шт.

11

528760R3

ARM

ASSEMBLY - Bellcrank

1шт.

12

532967R3

ROTATOR

ARM ASSEMBLY - actuating

1шт.

13

38-31016

PIN,5/32" x 1", Coiled

1шт.

14

528764R3

LEVER

- Bellcrank

1шт.

15

100-3337

SNAP RING,E-Type, 0.3" OD

Ring, Retaining, #37, .300" Dia, E-Type

1шт.

16

528759R6

ROD

- pull, foot accelerator

1шт.

17

213-114

ADJUSTABLE CLEVIS,1/4" - 28

CLEVIS - adjustable, 1/4 inch NF

1шт.

18

427-4077

CLEVIS PIN,1/4" x .770"

PIN, CLEVIS, , Hardened 1/4" x .770"

1шт.

19

528754R2

SUPPORT

BRACKET - support, foot accelerator pedal

1шт.

20

413-612

BOLT,Hex, 3/8" - 16 x 3/4", Gr 5

2шт.

21

532965R3

BOLT,3/8" - 16 x 1.7"

- foot pedal pivot

1шт.

22

492-11038

LOCK WASHER,3/8"

1шт.

23

425-106

NUT,3/8"-16, Cl 5

1шт.

24

69409C91

PACKAGE

KIT - service, foot pedal accelerator

1шт.
