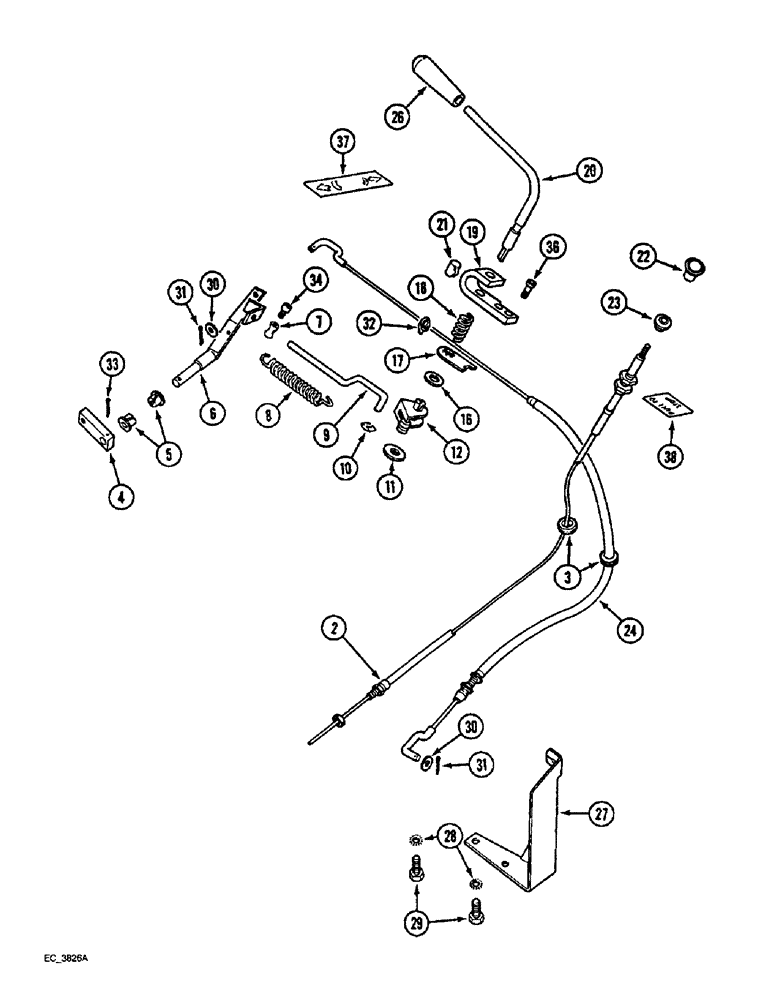

Запчасти Case IH 4240 (3-12) - GOVERNOR AND FUEL SHUT OFF CONTROL, TRACTOR WITH CAB (03) - FUEL SYSTEM

2

1965053C2

CABLE,1360mm L

- fuel shut-off control

1шт.

3

117959

GROMMET,5/16" ID x .719" x .062"

- rubber, 5/16 x 23/32 x 5/16 inch

2шт.

4

1532770C1

ARM

ASSEMBLY - governor control

1шт.

5

3234944R1

BUSHING

- cylinder, governor control lever

2шт.

6

3234940R4

LEVER ASSY.

LEVER - governor control

1шт.

7

3234925R3

BUSHING

COLLAR - stop

1шт.

8

3234916R1

SPRING

- tension

1шт.

9

137366A1

ROD

- governor control

1шт.

10

1532538C1

CLIP,ELECTRICAL

RING - retaining, 5.26 mm, external

1шт.

11

1531496C1

FRICTION WASHER

WASHER - friction, lower

1шт.

12

3229938R1

LEVER ASSY.

LEVER ASSEMBLY - governor control

1шт.

16

1531497C1

WASHER

- friction, upper

1шт.

17

3234919R1

PLATE

- governor control

1шт.

18

3229932R1

SPRING

- compression

1шт.

19

3234926R2

SUPPORT ASSY.

SUPPORT - governor control handle

1шт.

20

3234942R1

ROD,10mm OD

ROD - handle

1шт.

21

3234968R1

SPRING CLIP

CLIP - control handle

1шт.

22

3221357R1

BUTTON

KNOB - fuel shut-off control

1шт.

23

3223919R1

CAP

GROMMET - instrument panel

1шт.

24

3401585R3

CABLE ASSY.,1440mm L

CABLE - hand throttle

1шт.

26

3221355R1

KNOB

HANDLE - control

1шт.

27

1332947C1

SUPPORT

BRACKET - governor control

1шт.

28

893-11010

LOCK WASHER,Ext Tooth, M10

WASHER, LOCK, Ext Tooth, M10

2шт.

29

814-10014

BOLT,Hex, M10 x 1.5 x 14mm, Cl 8.8, Full Thd

- hex, 10 x 14 mm

2шт.

30

895-11006

WASHER,6.6mm ID x 12mm OD x 1.6mm Thk

2шт.

31

732-3216

COTTER PIN,M3.2 x 16

PIN - cotter, 3.2 x 16 mm

2шт.

32

3221347R2

CIRCLIP

RING - retaining

1шт.

33

932196R1

LOCK PIN,M5 x 20, Slotted

PIN - spring slotted, 5 x 20 mm

1шт.

34

865-508

HEX SOC SCREW,M5 x 8mm, Cl 8.8

- cap hex socket, 5 x 8 mm

1шт.

36

934600R1

HEX SOC SCREW,M8 x 25mm, Cl 8.8

2шт.

37

533592R1

PRODUCT GRAPHIC

DECAL - governor control

1шт.

38

1333014C1

DECAL

- fuel control

1шт.
