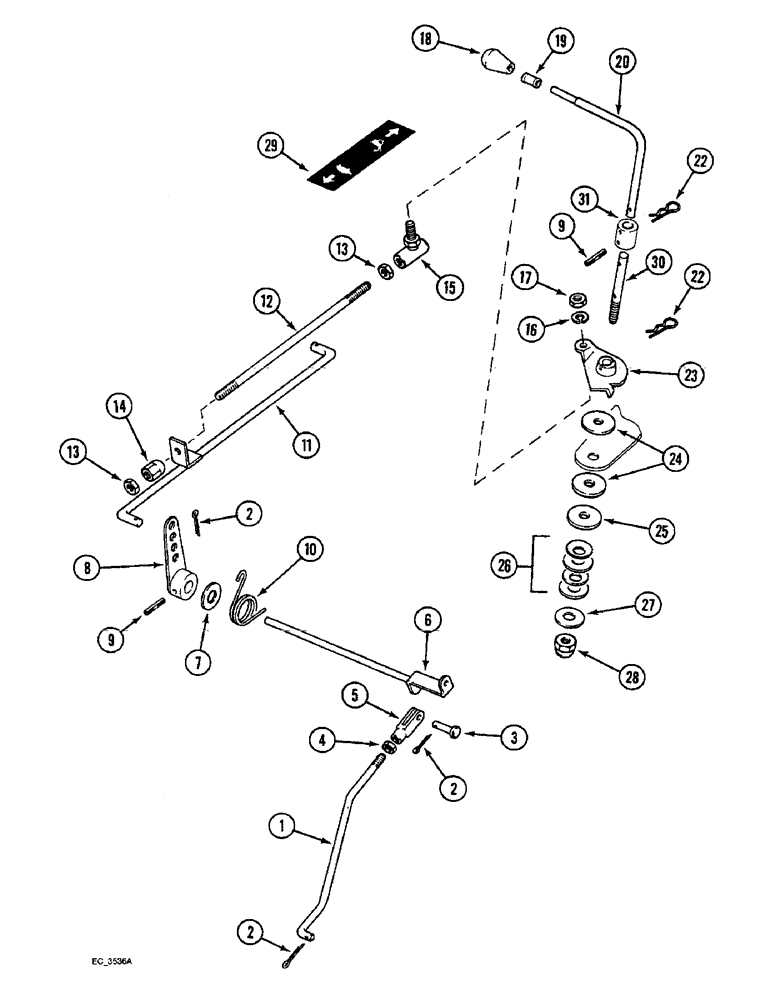

Запчасти Case IH 4240 (3-10) - GOVERNOR CONTROL, TRACTOR WITHOUT CAB (03) - FUEL SYSTEM

1

1332945C1

ROD

- front, governor control

1шт.

2

432-48

COTTER PIN,1/16" x 1/2"

PIN, SPLIT (COTTER), 1/16" x 1/2"

3шт.

3

427-4077

CLEVIS PIN,1/4" x .770"

PIN, CLEVIS, , Hardened 1/4" x .770"

1шт.

4

425-154

JAM NUT,Jam, 1/4"-28, G5

- hex, jam, 1/4 inch NF

1шт.

5

213-124

ADJUSTABLE CLEVIS,1/4"-28

CLEVIS - adjustable, 1/4 inch NF

1шт.

6

528325R2

ARM

ASSEMBLY - idler, governor control

1шт.

7

495-51041

WASHER,3/8"

- flat, 13/32 x 47/64 x 1/16 inch

1шт.

7

495-81129

WASHER,13/32" x 3/4" x .120"

- flat, 13/32 x 3/4 x 7/64 inch

1шт.

8

539572R3

LEVER ASSY.

LEVER ASSEMBLY - idler arm

1шт.

9

38-31014

PIN,5/32" x 7/8", Coiled

2шт.

10

539012R2

SPRING

- torsion

1шт.

11

528767R1

ROD ASSY.

ROD - pull, Bellcrank

1шт.

12

528775R3

ROD

- pick-up, foot accelerator

1шт.

13

425-154

JAM NUT,Jam, 1/4"-28, G5

- hex, jam, 1/4 inch NF

2шт.

14

528776R1

NUT

- swivel, foot accelerator pick-up rod

1шт.

15

276835R91

BALL JOINT,1/4" - 28 x 1"

JOINT - ball C type, 1/4 inch

1шт.

16

92-11025

LOCK WASHER,6.4mm ID x 12.37mm OD x 1.57mm Thk

WASHER, LOCK, 1/4"

1шт.

17

425-114

NUT,1/4"-28, G5

1шт.

1536683C1

HANDLE GRIP

KNOB ASSEMBLY - control handle, Includes: Ref. 18 and 19

1шт.

18

NSS

NOT SOLD SEPARAT

KNOB - control handle

1шт.

19

1536684C1

SPACER

RING - star, tolerence

1шт.

20

143942A2

LEVER

ROD - governor control handle, upper

1шт.

22

198121A1

SPRING CLIP

PIN - quick attachable

2шт.

23

528291R3

ARM ASSY.

ARM ASSEMBLY - governor control rod

1шт.

24

3123275R1

FRICTION WASHER

DISC - friction, governor control

2шт.

25

1332789C1

PLATE

- friction, backing

1шт.

26

1500778C1

DISC

- spring, 24.4 x 12.9 x 0.90 mm

4шт.

27

495-81022

WASHER,17/32" x 1 1/8" x .060"

- flat, 17/32 x 1-1/8 x 1/16 inch

1шт.

28

232-2408

LOCK NUT,1/2"-20, GC

NUT, LOCK, 1/2"-20, GC

1шт.

29

533592R1

PRODUCT GRAPHIC

DECAL - governor control

1шт.

30

143939A2

LEVER

ROD - lower throttle control

1шт.

31

143941A2

COUPLING

COUPLER - rods

1шт.
