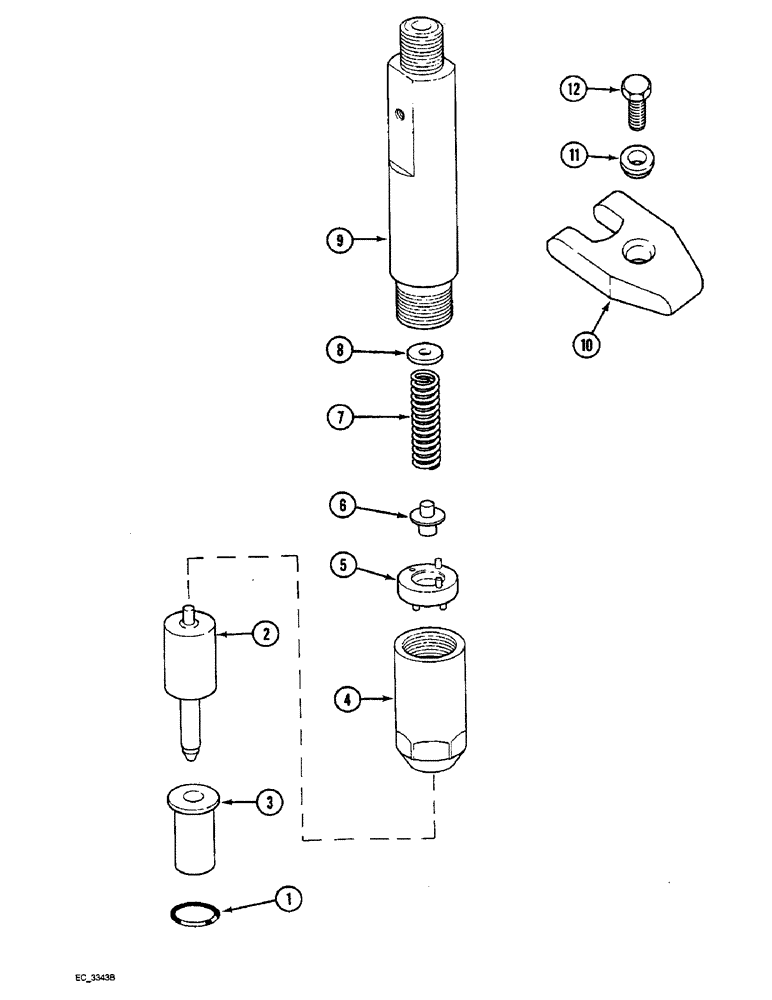

Запчасти Case IH 4240 (3-06) - FUEL INJECTION NOZZLE (03) - FUEL SYSTEM

1

717203R1

O-RING,4mm Thk x 17mm ID, 72 Duro

- injection nozzle

4шт.

Included in the cylinder head gasket kit on Figure 2-76

1шт.

2

3218251R2

NOZZLE CAP

NOZZLE- injection, Includes: Ref. 3

4шт.

2

735255C91

REMAN-FUEL INJECTOR

NOZZLE - injection, remanufactured

4шт.

2

1934199C1

CORE-FUEL INJECTOR

RETURN NUMBER - (Use this number to return core for credit)

4шт.

3

3132028R1

SLEEVE,6.2mm ID x 16.5mm OD x 24.5mm L

- insulating, insulating (4240)

4шт.

3218247R92

HOLDER

- injection nozzle, Includes: Ref. 4 - 9

4шт.

4

3218388R1

NUT

- nozzle cap

1шт.

5

3218387R1

SPACER

- spring, nozzle holder

1шт.

6

3218386R2

SPACER

PIN - pressure

1шт.

7

3218385R2

SPRING

- pressure, compression

1шт.

8

3218657R1

SHIM

- 0.500 mm

1шт.

8

3218659R1

SHIM

- 0.550 mm

1шт.

8

3218661R1

SHIM

- 0.600 mm

1шт.

8

3218662R1

SHIM

- 0.700 mm

1шт.

8

3218663R1

SHIM

- 0.800 mm

1шт.

8

3218664R1

SHIM

- 0.900 mm

1шт.

9

NSS

NOT SOLD SEPARAT

BODY - nozzle holder

1шт.

10

3218128R1

RETAINER

- injector nozzle

4шт.

11

3218129R1

WASHER

- retainer bolt

4шт.

12

326-516

BOLT,Hex, 5/16" - 18 x 1", Gr 8

4шт.
