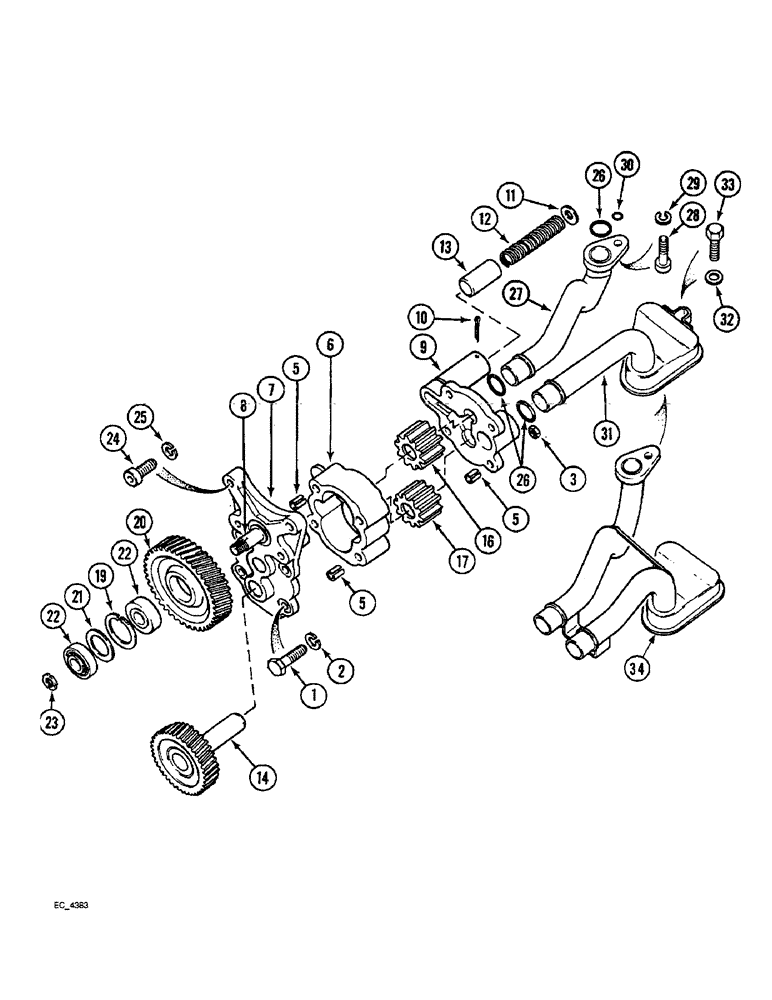

Запчасти Case IH 4240 (2-72) - OIL PUMP (02) - ENGINE

3136430R95

PUMP, ENGINE OIL

PUMP ASSEMBLY - oil, Includes: Ref. 1 - 23

1шт.

1

413-536

BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5

- hex, 5/16 NC x 2-1/4 inch

4шт.

2

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

3

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

3136441R95

HOUSING ASSY.

CARRIER - assembly, Includes: Ref. 5 - 13

1шт.

5

932597R1

LOCK PIN,M10 x 14, Slotted

Roll M10 x 14, Slotted

3шт.

6

NSS

NOT SOLD SEPARAT

CASE - oil pump gear

1шт.

7

NSS

NOT SOLD SEPARAT

CARRIER - oil pump gear

1шт.

8

3055297R5

AXLE

- idler gear

1шт.

9

NSS

NOT SOLD SEPARAT

COVER ASSEMBLY - oil pump, Includes: Ref. 10 - 13

1шт.

10

432-824

COTTER PIN,1/8" x 1 1/2"

PIN, SPLIT (COTTER), 1/8" x 1-1/2"

1шт.

11

3139620R1

SPRING WASHER

- spring

1шт.

12

3136264R1

SPRING

- pressure relief valve

1шт.

13

3136081R1

VALVE

- piston relief

1шт.

14

3136442R91

PINION

GEAR - oil pump drive

1шт.

3132503R91

GEAR-SET

GEAR - set, 30.0/29.97 (4210/4230)

1шт.

3136450R91

GEAR-SET

GEAR SET - oil pump, 38.52/38.49 (4240), Includes: Ref. 16 and 17

1шт.

16

NSS

NOT SOLD SEPARAT

GEAR - oil pump idler (Order gear set)

1шт.

17

NSS

NOT SOLD SEPARAT

GEAR - oil pump (Order gear set)

1шт.

NSS

NOT SOLD SEPARAT

GEAR ASSEMBLY - oil pump idler (Order component parts), Includes: Ref. 19 - 22

1шт.

19

800-2135

SNAP RING,M35, Int

RING - retaining internal, 35 mm

1шт.

20

3055291R1

PINION

GEAR - idler

1шт.

21

3055292R1

WASHER

WASHER - .55 mm

1шт.

22

NSS

NOT SOLD SEPARAT

BEARING - taper roller (Order 476045R91 and 476046R1)

2шт.

23

3228141R1

LOCK NUT

- lock

1шт.

24

61-33116

HEX SOC SCREW,5/16"-18 x 1"

SCREW, Hex Soc Hd, 5/16"-18 x 1"

4шт.

25

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

4шт.

26

3228577R1

O-RING,3.1mm Thk x 24.5mm ID, Cl 7

- oil pump sealing

1шт.

Included In The Crankcase Gasket Kit On Figure 2-78.

1шт.

27

1806957C1

TUBE

PIPE - oil, pressure (4230/4240)

1шт.

28

61-34460

HEX SOC SCREW,7/16"-14 x 3 3/4"

BOLT - hex, 7/16 x 3-3/4 inch (4210)

1шт.

28

3144722R1

HEX SOC SCREW

- cap, hex socket, 7/16 NC x 5 inch

1шт.

29

3218543R1

LOCK WASHER

- lock, 7/16 inch

1шт.

30

717222R1

O-RING

- sealing, 11.3 x 16.1 mm

1шт.

Included In The Crankcase Gasket Kit On Figure 2-78.

1шт.

31

1806889C1

PIPE

- oil, suction (4230/4240)

1шт.

32

396-21034

WASHER,8.74mm ID x 17.48mm OD x 2.26mm Thk

- flat, 11/32 x 11/16 x 3/32 inch, hardened (4230/4240)

1шт.

33

313-512

BOLT,Hex, 5/16" - 18 x 3/4", Gr 5

- hex, 5/16 NC x 3/4 inch (4230/4240)

1шт.

34

1806778C1

PIPE ASSY.

PIPE - oil, oil, suction (4210)

1шт.
