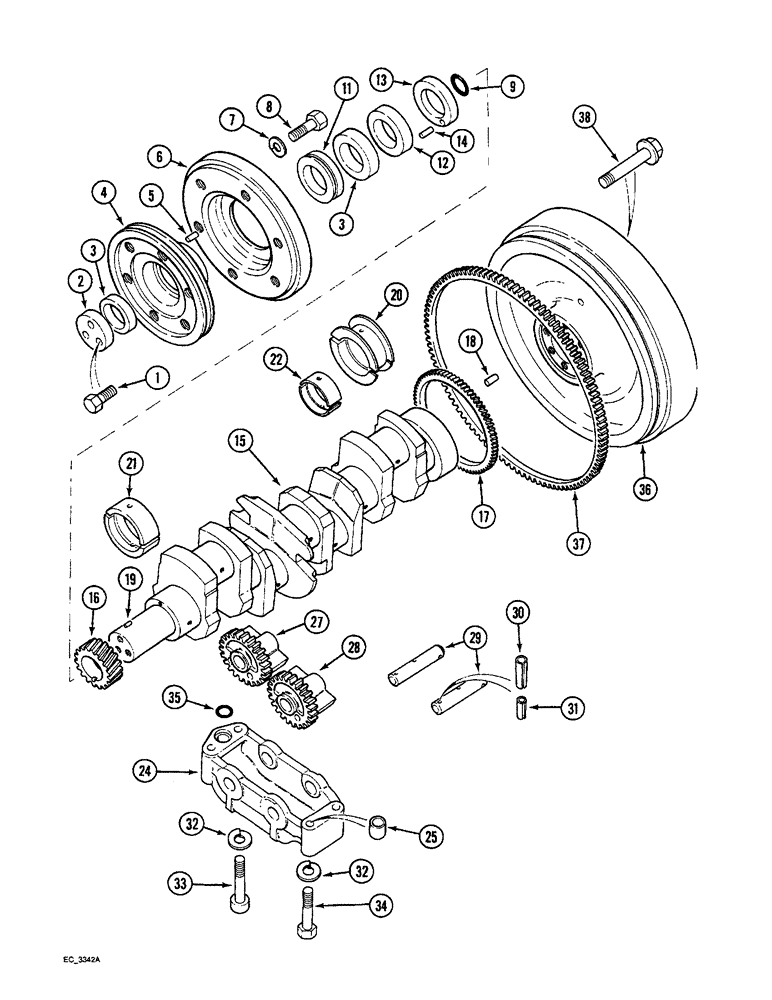

Запчасти Case IH 4240 (2-66) - CRANKSHAFT, CRANKSHAFT BALANCER, FLYWHEEL (02) - ENGINE

1

870325R1

BOLT,Hex, 7/16" - 14 x 1 3/8", Gr 8

- hex, 7/16 NC x 1-3/8 inch

3шт.

2

3055154R1

WASHER

- pressure

1шт.

3

3138874R1

BEARING WASHER

RING - clamping, thrust (4210/4230)

2шт.

3

3055153R1

SPACER,56.64mm ID x 61.72mm OD x 10.16mm L

- pressure, thrust (4240)

2шт.

4

3138838R3

PULLEY

- crankshaft (4210), Includes: Ref. 5

1шт.

4

3136324R11

PULLEY

ASSEMBLY - crankshaft (4230), Includes: Ref. 5

1шт.

4

1967083C1

PULLEY

ASSEMBLY - crankshaft (4240), Includes: Ref. 5

1шт.

5

932338R1

DOWEL,M4 x 14

PIN - dowel

1шт.

6

1329061C1

DAMPER

- vibration (4230/4240)

1шт.

7

934036R1

WAVE WASHER,M10.5 ID x 21 OD x .1 Thk

NUT - lock, 10mm (4230/4240)

6шт.

8

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

(4230/4240), Includes Ref. 9 Hex, 3/8"-16 x 5/8", G5, Full Thd

6шт.

9

713778R1

O-RING,3mm Thk x 55mm ID

- 55 x 61 mm

1шт.

Included In The Crankcase Gasket Kit On Figure 2-78.

1шт.

11

3055152R91

RING

ELEMENT - spring tightener (Optional to 3218394R1) (4240)

2шт.

12

3055153R1

SPACER,56.64mm ID x 61.72mm OD x 10.16mm L

- pressure (Used with 3055152R91)

2шт.

3228133R93

SEAL KIT

KIT - service, Includes: Ref. 13 and 14

1шт.

13

NSS

NOT SOLD SEPARAT

RING - distance

1шт.

14

NSS

NOT SOLD SEPARAT

PIN - dowel

1шт.

3144626R92

CRANKSHAFT BEARING

ASSEMBLY - engine, standard (4210), Includes: Ref. 15 - 22

1шт.

3228376R91

BEARING ASSY

ASSEMBLY - standard (4230/4240), Includes: Ref. 15 - 22

1шт.

3228377R91

BEARING ASSY

ASSEMBLY - undersize, 0.25 mm (4230/4240), Includes: Ref. 15 - 22

1шт.

3228378R91

BEARING ASSY

ASSEMBLY - undersize, 0.50 mm (4230/4240), Includes: Ref. 15 - 22

1шт.

15

NSS

NOT SOLD SEPARAT

CRANKSHAFT, Includes: Ref. 16 - 19

1шт.

16

3055028R1

PINION

GEAR - crankshaft pinion, 33 teeth

1шт.

17

3136237R1

PINION

GEAR - balancer drive, 80 teeth (4210)

1шт.

17

3144700R1

GEAR

- balancer drive (4230/4240)

1шт.

18

NLS

NO LONGER SERVICED

PIN - dowel, 3/8 x 7/8 inch

1шт.

19

838-5410

LOCK PIN,M4 x 10, Slotted

PIN - slotted spring, 4 x 10 mm

1шт.

20

3055129R21

CRANKSHAFT BEARING

BEARING - main, standard size

1шт.

20

3056820R11

BEARING ASSY

BEARING - main, 0.25 mm undersize (4230/4240)

1шт.

20

3056875R11

BEARING ASSY

BEARING - main, 0.50 mm undersize (4230/4240)

1шт.

21

3055130R21

CRANKSHAFT BEARING

BEARING - main, standard size

4шт.

21

3056832R21

BEARING ASSY

BEARING - main, 0.25 mm undersize (4230/4240)

4шт.

21

3056877R21

BEARING ASSY

BEARING - main, 0.50 mm undersize (4230/4240)

4шт.

22

3055351R91

BEARING ASSY

BEARING - connecting rod, standard size

4шт.

22

3136203R11

BEARING ASSY

BEARING - connecting rod, undersize, 0.25 mm (4230/4240)

4шт.

22

3136329R11

BEARING ASSY

BEARING - connecting rod, undersize, 0.50 mm (4230/4240)

4шт.

3132895R93

BALANCER

ASSEMBLY - crankshaft (4210), Includes: Ref. 24 - 31

3шт.

3144701R93

BALANCER

ASSEMBLY - crankshaft (4230/4240), Includes: Ref. 24 - 31

1шт.

24

NSS

NOT SOLD SEPARAT

HOUSING - balancer, Includes: Ref. 25, crankshaft

2шт.

25

3055174R1

BUSHING

- dowel, crankshaft balancer

2шт.

3228373R91

BALANCING WEIGHT

WEIGHT ASSEMBLY - balancer, matched set (4210), Includes: Ref. 27 and 28 , crankshaft

1шт.

3228375R92

BALANCER

WEIGHT ASSEMBLY - balancer, matched set (4230/4240), Includes: Ref. 27 and 28, crankshaft balancer

1шт.

27

NSS

NOT SOLD SEPARAT

WEIGHT - idler, crankshaft balancer

1шт.

28

NSS

NOT SOLD SEPARAT

WEIGHT - drive, crankshaft balancer

1шт.

29

3132878R11

PIN,23mm OD x 93mm L

SHAFT - balancer weight, crankshaft balancer

1шт.

30

38-31012

PIN,3.96mm OD x 19.05mm L, Coiled

Crankshaft balancer 5/32" x 3/4", Coiled

6шт.

31

932299R1

LOCK PIN,M2.5 x 20, Slotted

Spring, Crankshaft balancer M2.5 x 20, Slotted

6шт.

32

3218543R1

LOCK WASHER

- lock, 7/16 inch, crankshaft balancer

1шт.

33

61-34460

HEX SOC SCREW,7/16"-14 x 3 3/4"

BOLT - hex, 7/16 x 3-3/4 inch (4210), crankshaft balancer

2шт.

33

3144722R1

HEX SOC SCREW

- cap, hex socket, 7/16 NC x 5 inch, crankshaft balancer

2шт.

34

113-336

BOLT,Hex, 7/16" - 14 x 2-1/4", Gr 5

- hex, 7/16 NC x 2-1/4 inch (4210), crankshaft balancer

1шт.

34

113-351

BOLT,Hex, 7/16" - 14 x 2-3/4", Gr 5

(4210), Crankshaft balancer Hex, 7/16"-14 x 2 3/4", G5

1шт.

34

413-732

BOLT,Hex, 7/16" - 14 x 2", Gr 5

- hex, 7/16 NC x 2 inch (4210), crankshaft balancer

1шт.

34

413-752

BOLT,Hex, 7/16" - 14 x 3-1/4", Gr 5

- hex, 7/16 NC x 3-1/4 inch (4230/4240), crankshaft balancer

1шт.

34

413-756

BOLT,Hex, 7/16" - 14 x 3-1/2", Gr 5

- hex, 7/16 NC x 3-1/2 inch (4230/4240), crankshaft balancer

1шт.

34

24856R1

BOLT,Hex, 7/16" - 14 x 4", Gr 8

- hex, 7/16 NC x 4 inch (4230/4240), crankshaft balancer

1шт.

35

238-6118

O-RING,0.103" Thk x 0.862" ID, -118, Cl 6, 90 Duro

Crankshaft balancer -118, 90 Duro, .862" ID x .103" Thk

1шт.

Included In The Crankcase Gasket Kit On Figure 2-78.

1шт.

36

1808412C92

FLYWHEEL WITH GEAR

FLYWHEEL - complete with ring gear (4210), Includes: Ref. 37

1шт.

36

1808413C92

FLYWHEEL WITH GEAR

FLYWHEEL - complete with ring gear (4230/4240), Includes: Ref. 37

1шт.

37

60883H

RING GEAR

GEAR - ring (4210), flywheel

1шт.

37

3218637R1

CROWN WHEEL

GEAR - ring (4230/4240), flywheel

1шт.

38

3144213R1

BOLT,Hex, 1/2" - 20 x 53mm

- Flywheel mounting

1шт.
