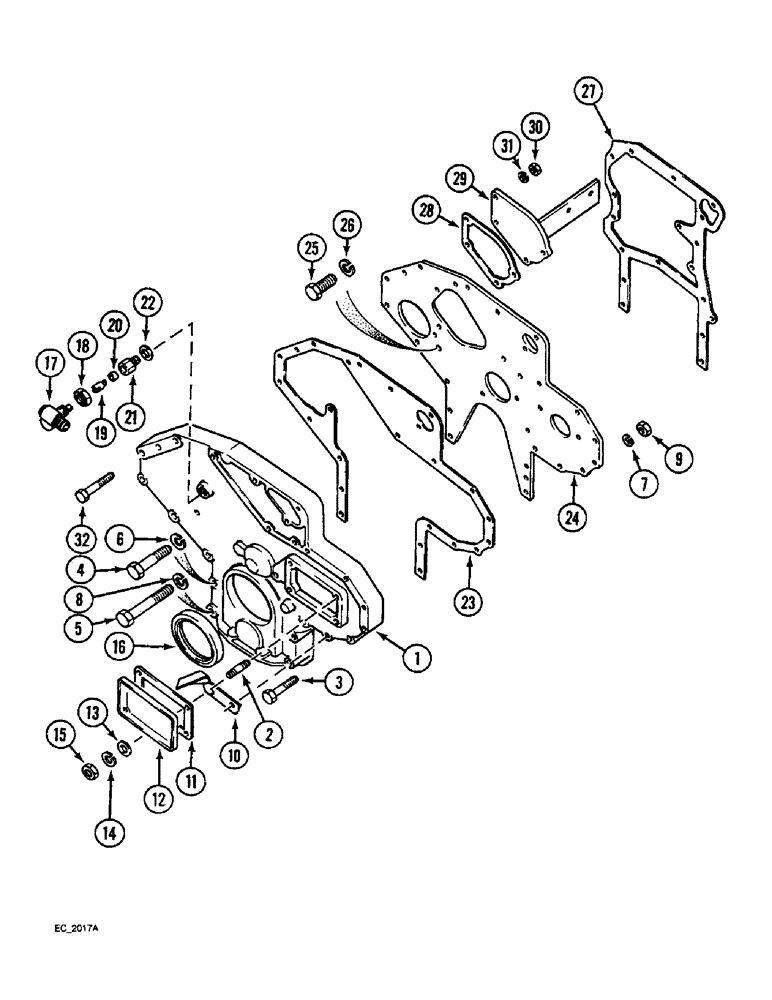

Запчасти Case IH 4240 (2-54) - CYLINDER BLOCK FRONT COVER (02) - ENGINE
№
Артикул
Название
Примечание
Количество
1
3136057R14
COVER ASSY
COVER ASSEMBLY - cylinder block, Includes: Ref. 2
1шт.
2
3055242R1
STUD
- front cover
4шт.
3
413-532
BOLT,Hex, 5/16" - 18 x 2", Gr 5
9шт.
4
413-536
BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5
- hex, 5/16 NC x 2-1/4 inch
2шт.
5
413-540
BOLT,Hex, 5/16" - 18 x 2-1/2", Gr 5
- hex, 5/16 NC x 2-1/2 inch
2шт.
7
3218395R1
BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk
Lock (5/16") M8.2 ID x 16 OD x .9 Thk
6шт.
8
92-11031
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
2шт.
9
329-105
NUT,5/16"-18, G8
6шт.
10
3136040R21
ADJUSTER
INDICATOR - timing (4210)
1шт.
10
3136325R2
INDICATOR
- timing (4230/4340)
1шт.
11
3138640R2
GASKET,2.5mm Thk
- injection pump cover
1шт.
12
3055140R1
COVER
- injection pump
1шт.
13
95-81067
WASHER,0.34" ID x 0.56" OD x 0.06" Thk
- flat, 11/32 x 9/16 x 1/16 inch
4шт.
15
329-105
NUT,5/16"-18, G8
4шт.
16
3228133R93
SEAL KIT
KIT - serive, crankshaft oil seal
1шт.
17
3055982R93
DRIVE, ANGLE
ELBOW - drive angle
1шт.
18
3132116R1
NUT
- hex, 18 mm
1шт.
19
3056986R1
SUPPORT
COUPLING - drive
1шт.
20
3052295R91
SEAL,6mm ID x 16mm OD x 7mm Thk
SEAL - radial seal
1шт.
21
3055983R1
REDUCER FITTING
SPACER - drive angle
1шт.
22
3051337R1
SEALING RING,M18 x 24mm OD x 1.5mm Thk
Packing M18 x 24 x 1.5
1шт.
23
3055994R3
GASKET
- crankcase, front cover
1шт.
24
3055996R11
PLATE ASSY.
PLATE ASSEMBLY - front cover
1шт.
25
413-510
BOLT,Hex, 5/16" - 18 x 5/8", Gr 5
- hex, 5/16 NC x 5/8 inch
7шт.
27
3055239R4
GASKET
- front plate
1шт.
28
3132541R2
GASKET
- closing cover
1шт.
29
3136049R1
COVER ASSY
COVER - with fuel filter bracket
1шт.
30
329-105
NUT,5/16"-18, G8
4шт.
31
92-11031
LOCK WASHER,5/16"
WASHER, LOCK, 5/16"
3шт.
31
3218395R1
BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk
Lock (5/16") M8.2 ID x 16 OD x .9 Thk
1шт.
32
413-536
BOLT,Hex, 5/16" - 18 x 2-1/4", Gr 5
- hex, 5/16 NC x 2-1/4 inch
4шт.
Выбрано товаров: 34
