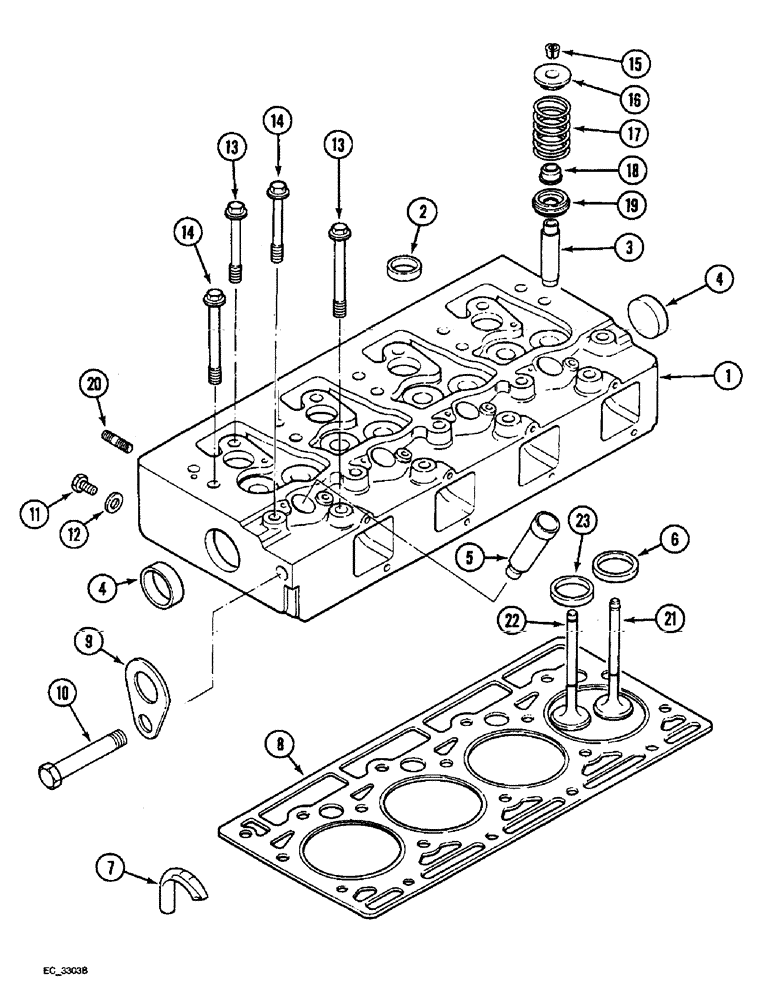

Запчасти Case IH 4240 (2-52) - CYLINDER HEAD (02) - ENGINE

1

3055367R97

HEAD (CYLINDER)

HEAD - cylinder (4210/4230)

1шт.

1

3228724R91

HEAD (CYLINDER)

HEAD - cylinder (4240), Includes: Ref. 2 - 7

1шт.

2

30591R1

PLUG,M25, Tapered

- tapered cup, 25 mm OD

4шт.

3

129322A1

GUIDE

- valve stem

8шт.

4

934003R1

PLUG,M52, Conical

- expansion

2шт.

5

3055344R1

SLEEVE

INSERT - nozzle holder

4шт.

6

3132577R1

SEAT, VALVE

INSERT - seat, intake valve, 44.09 mm OD

4шт.

6

3144754R1

SEAT, VALVE

INSERT - seat, intake valve, 44.24 mm OD

4шт.

6

3144755R1

RING

INSERT - seat, intake valve, 44.49 mm OD

4шт.

7

3055224R11

CINTRE

PIPE ASSEMBLY - cooling

4шт.

8

3228362R2

CYLINDER HEAD GASKET

GASKET - cylinder head

1шт.

9

3055370R1

STIRRUP

SHACKLE - engine mounting

1шт.

10

13-1218

BOLT,Hex, 3/4" - 10 x 1-1/8", Gr 5

1шт.

11

934259R1

PLUG,Hex, M10 x 1

1шт.

12

718743R1

SEALING RING,M10 x 16 x 1

Ring M10 x 16 x 1

1шт.

13

3138747R1

BOLT,Cyl Hd, 9/16" - 12 x 123mm

- hex, 9/16 NC x 5 inch, grade 8

8шт.

14

3138748R1

BOLT,Flng, 9/16" - 12 x 5-3/4"

BOLT - hex, 9/16 NC x 5-3/4 inch, grade 8

10шт.

15

3055057R91

ROCKER ARM COTTER

LOCK - valve spring

16шт.

16

3055058R2

SPRING CUP

CAP - valve spring retainer

8шт.

17

3055060R1

SPRING

- valve

8шт.

18

3228677R91

SEAL

KIT - service, valve stem seal

1шт.

19

3055059R91

CAP

ROTATOR - valve

8шт.

20

3228189R1

STUD

- exhaust manifold, 3/8 x 1-1/2 inch (4210/4230)

8шт.

20

3218188R1

PIPE

STUD - exhaust manifold (4240)

8шт.

21

3055055R2

OVERSIZE INLET VALVE

VALVE - intake

4шт.

22

3055056R2

STD EXHAUST VALVE

VALVE - exhaust

4шт.

23

3132361R1

INSERT

- seat. 0.016 inch oversize, exhaust valve

4шт.

23

3132362R1

VALVE SEAT

INSERT - seat, 0.006 inch oversize (0.15 mm) exhaust valve

4шт.
