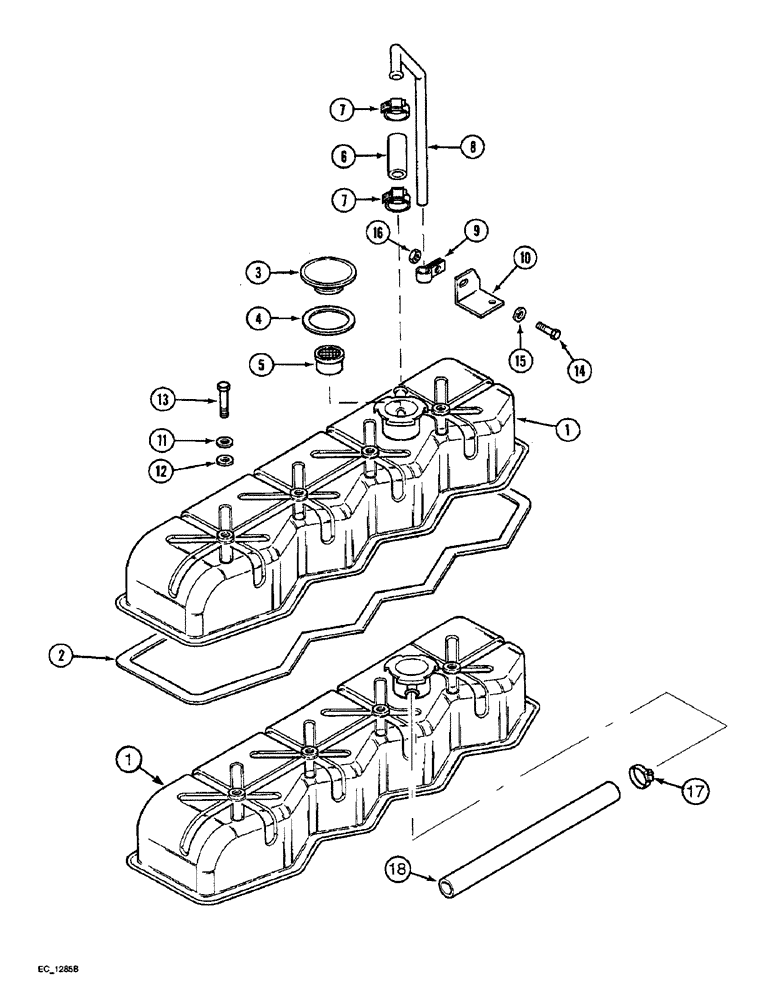

Запчасти Case IH 4240 (2-48) - VALVE HOUSING COVER (02) - ENGINE

1

1806831C1

VALVE COVER

COVER - valve housing

1шт.

1

192940A1

VALVE COVER

COVER - valve housing (Downswept)

1шт.

2

3138642R2

GASKET

- valve cover

1шт.

3

3136337R91

COVER

CAP - oil fill, Includes: Ref. 4

1шт.

4

3136338R1

GASKET,45mm ID x 68mm OD x 2.3mm Thk

- breather cap

1шт.

5

3136336R1

FILTER

INSERT - strainer

1шт.

6

1806928C1

HOSE

- connecting

1шт.

7

3143364R1

CLAMP,19mm - 23mm

- hose

2шт.

8

1806992C1

TUBE,18 mm OD

- breather

1шт.

9

3144023R1

CLAMP

- breather tube

1шт.

10

1806993C1

SUPPORT

BRACKET - breather tube clamp

1шт.

11

3138637R1

CUP WASHER

WASHER - valve housing cover

4шт.

12

3138638R1

RING,7.5mm ID x 15mm OD x 4mm Thk

- valve housing cover bolt

4шт.

13

413-572

BOLT,Hex, 5/16" - 18 x 4-1/2", Gr 5

- hex, 5/16 NC x 4-1/2 inch

4шт.

14

313-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch grade 8

1шт.

15

396-21034

WASHER,8.74mm ID x 17.48mm OD x 2.26mm Thk

- flat, 11/32 x 11/16 x 3/32 inch, hardened

2шт.

16

325-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

1шт.

17

214-1412

HOSE CLAMP,#12, 0.69" - 1.25", Type F Worm

CLAMP, HOSE, #12, 0.69/1.25 Type F Worm

1шт.

18

192793A1

HOSE

TUBE - breather (Downswept)

1шт.
