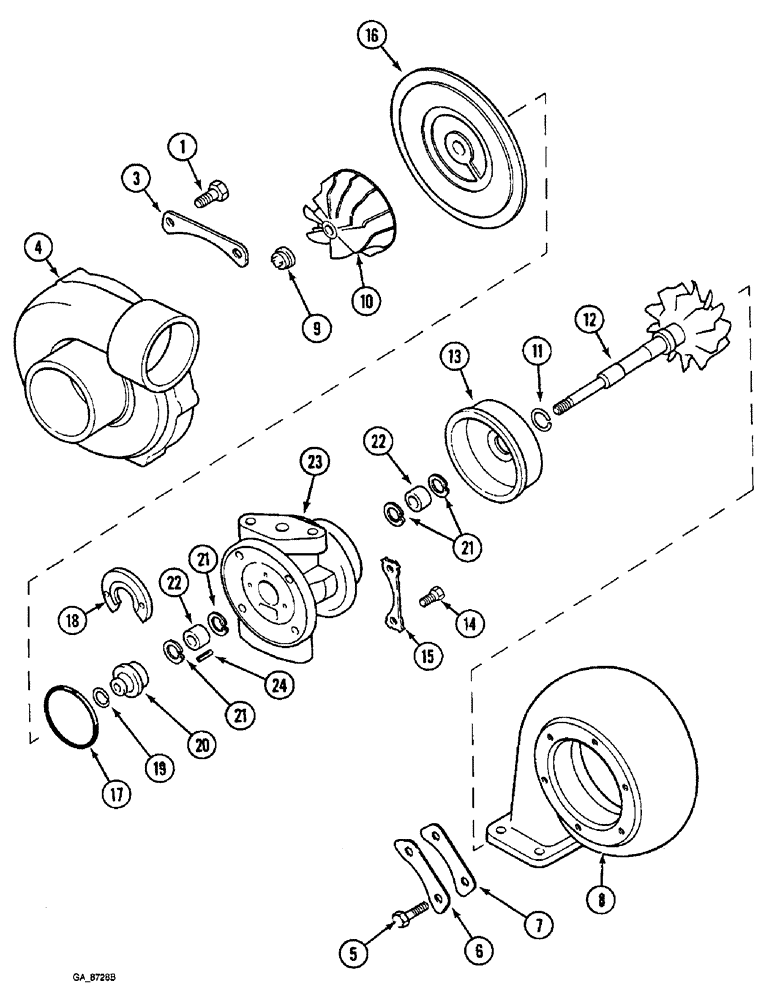

Запчасти Case IH 4240 (2-46) - TURBOCHARGER, MODEL 4240 ONLY (02) - ENGINE

1

1967070C1

TURBOCHARGER

BOLT - clamp, housing lock plate, Includes: Ref. 3 - 24

1шт.

3

1809618C1

BOLT

CLAMP - locking plate

6шт.

4

3218826R1

CLAMP

HOUSING - compressor

3шт.

5

3218954R1

HOUSING

BOLT - housing lock plate

1шт.

6

684246C1

BOLT

PLATE - housing lock

6шт.

7

684245C1

CLAMP

- housing plate

3шт.

8

3078857R1

HOUSING

- turbine

3шт.

3218956R1

HOUSING

ASSEMBLY - center, complete with rotating assembly, includes: Ref. 9 - 24

1шт.

9

615741C2

NUT

- impeller lock

1шт.

10

3218957R1

TORQ CONV IMPELLER

IMPELLER - turbine

1шт.

11

A44829

RING

- piston

1шт.

12

3078863R1

TURBINE

SHAFT ASSEMBLY - turbine wheel

1шт.

13

A45091

GUARD

SHROUD - center housing side wheel

1шт.

14

326-412

BOLT,Hex, 1/4" - 20 x 3/4", Gr 8

Lock plate Hex, 1/4"-20 x 3/4", G8, Full Thd

4шт.

15

1809617C1

BOLT,Hex, 1/4" x 5/8", Gr 8

BOLT - lock plate

2шт.

16

3218833R91

PLATE

- rear

1шт.

17

A44833

RING

- seal

1шт.

18

A44832

THRUST BEARING,0.172"

BEARING - thrust plate

1шт.

19

A44828

RING

- piston

1шт.

20

615745C2

COLLAR

- thrust

1шт.

21

A44827

RING

- snap

4шт.

22

A44826

BEARING

- turbo centre

2шт.

23

3218834R91

HOUSING

ASSEMBLY - center, Includes: Ref. 24

1шт.

24

NSS

NOT SOLD SEPARAT

PIN - roll

2шт.
