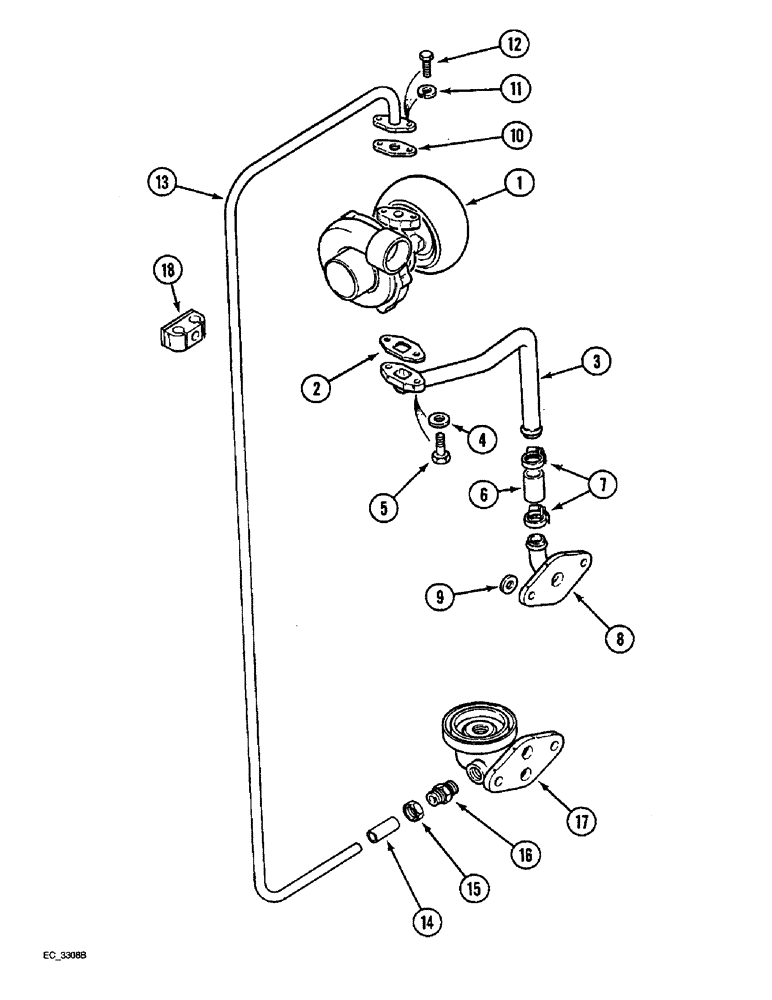

Запчасти Case IH 4240 (2-44) - TURBOCHARGER TUBES AND HOSES, MODEL 4240 ONLY (02) - ENGINE

1

1967070C1

TURBOCHARGER

ASSEMBLY - engine (See Figure 2-46)

1шт.

2

3144359R2

GASKET,1.5mm Thk

- turbocharger oil drain

1шт.

3

1329031C1

PIPE

TUBE - oil drain

1шт.

4

896-12008

WASHER,8.8mm ID x 17.5mm OD x 2mm Thk

- flat, 9 x 17 x 2 mm, hardened

2шт.

6

1967042C1

PIPE

HOSE - oil

1шт.

7

124581A1

CLAMP

- hose

2шт.

8

1329032C91

FLANGE

- turbocharger

1шт.

9

3138627R1

O-RING

RING - packing

2шт.

10

3132062R3

GASKET

- oil feed flange

1шт.

11

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

12

413-516

BOLT,Hex, 5/16" - 18 x 1", Gr 5

- hex, 5/16 NC x 1 inch

2шт.

13

123025A1

HYD TUBE

TUBE - oil feed, upper

1шт.

14

905646R1

RING

SLEEVE - coupling

1шт.

15

3058452R1

TUBE NUT,Coupling, M16 x 1.5

NUT - pipe

1шт.

16

1967082C1

UNION

- connector

1шт.

17

123024A1

PEDESTAL

BASE - oil filter

1шт.

18

S15543

CLAMP,7/16", Insul, 1/2" Bolt

- P-type, 7/16 inch

1шт.

5

627-8025

BOLT,Hex, M8 x 1.25 x 25mm, Cl 10.9, Full Thd

- hex, full threads, 8 - 1.25 x 25 mm, class 10.9

2шт.
