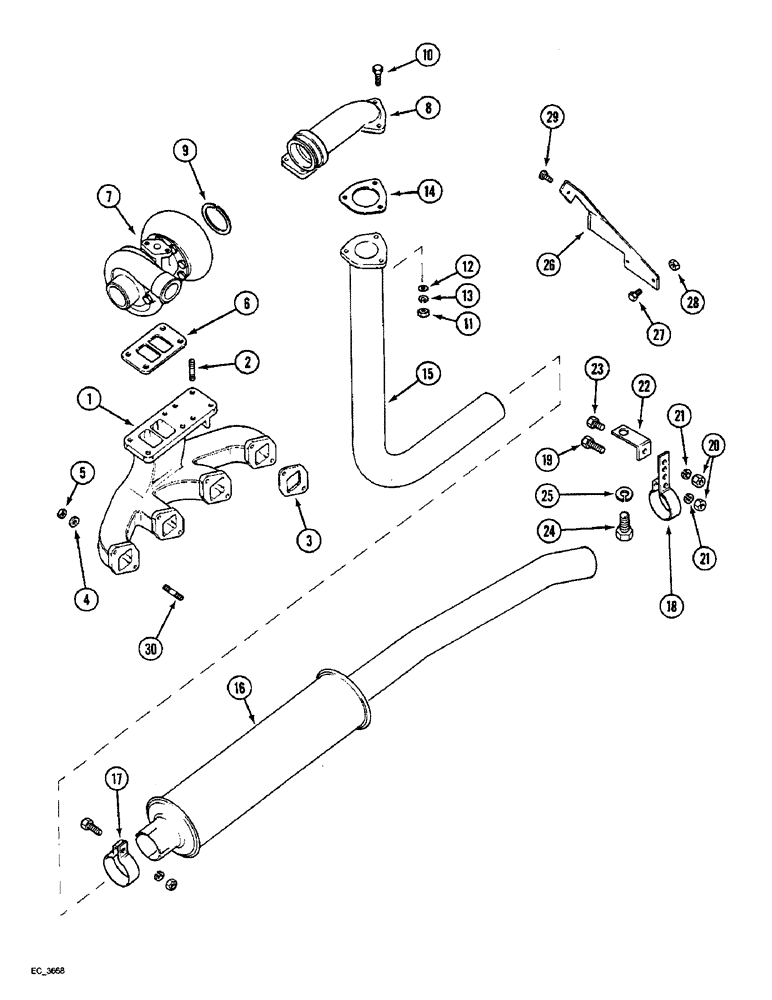

Запчасти Case IH 4240 (2-42) - UNDERSLUNG EXHAUST, MODEL 4240 ONLY (02) - ENGINE

1

3228747R91

MANIFOLD

ASSEMBLY - exhaust, Includes: Ref. 2

1шт.

2

3228189R1

STUD

- exhaust manifold, 3/8 x 1-1/2 inch

8шт.

3

3132434R1

MANIFOLD GASKET,0.5mm Thk

- exhaust manifold

4шт.

4

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

- flat, hardened, 13/32 x 13/16 x 3/32 inch

16шт.

5

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF

8шт.

6

3228634R2

MANIFOLD GASKET

- flange

1шт.

7

1967070C1

TURBOCHARGER

ASSEMBLY - engine (See Figure 2-46)

1шт.

8

1967080C1

ELBOW

- exhaust

1шт.

9

702299C1

ASSEMBLY

RING - sealing

1шт.

10

413-624

BOLT,Hex, 3/8" - 16 x 1-1/2", Gr 5

- hex, 3/8 NC x 1-1/2 inch

3шт.

11

425-106

NUT,3/8"-16, Cl 5

3шт.

12

495-81129

WASHER,13/32" x 3/4" x .120"

- flat, 13/32 x 3/4 x 7/64 inch

3шт.

13

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

3шт.

14

1536737C1

GASKET

- exhaust manifold pipe

1шт.

15

1536733C1

TUBE,745 mm Length

PIPE - exhaust manifold

1шт.

16

1537024C1

MUFFLER

PIPE ASSEMBLY - muffler and tail

1шт.

17

1537280C1

CLAMP

- pipe (With nut, bolt and washer)

1шт.

18

1536736C1

SUPPORT

- pipe

1шт.

19

413-620

BOLT,Hex, 3/8" - 16 x 1-1/4", Gr 5

- hex, 3/8 NC x 1-1/4 inch

1шт.

20

425-106

NUT,3/8"-16, Cl 5

2шт.

21

492-11038

LOCK WASHER,3/8"

2шт.

22

90156C1

GUARD

BRACKET - exhaust tail pipe

1шт.

23

413-614

BOLT,Hex, 3/8" - 16 x 7/8", Gr 5

1шт.

24

413-1014

BOLT,Hex, 5/8" - 11 x 7/8", Gr 5

1шт.

25

492-11062

BEARING WASHER,5/8"

WASHER, LOCK, 5/8"

1шт.

26

1537038C1

PROTECTION PLATE

BAFFLE - heat

1шт.

27

614-8016

BOLT,Hex, M8 x 1.25 x 16mm, Cl 8.8, Full Thd

- hex, full threads, 8 - 1.25 x 16 mm

2шт.

28

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

2шт.

29

463-42510

SCREW,Hex, 1/4" - 20 x 5/8"

- cap , 1/4 NC x 5/8 inch

1шт.

30

3218188R1

PIPE

STUD - exhaust manifold (4240) (See Figure 2-52)

8шт.
