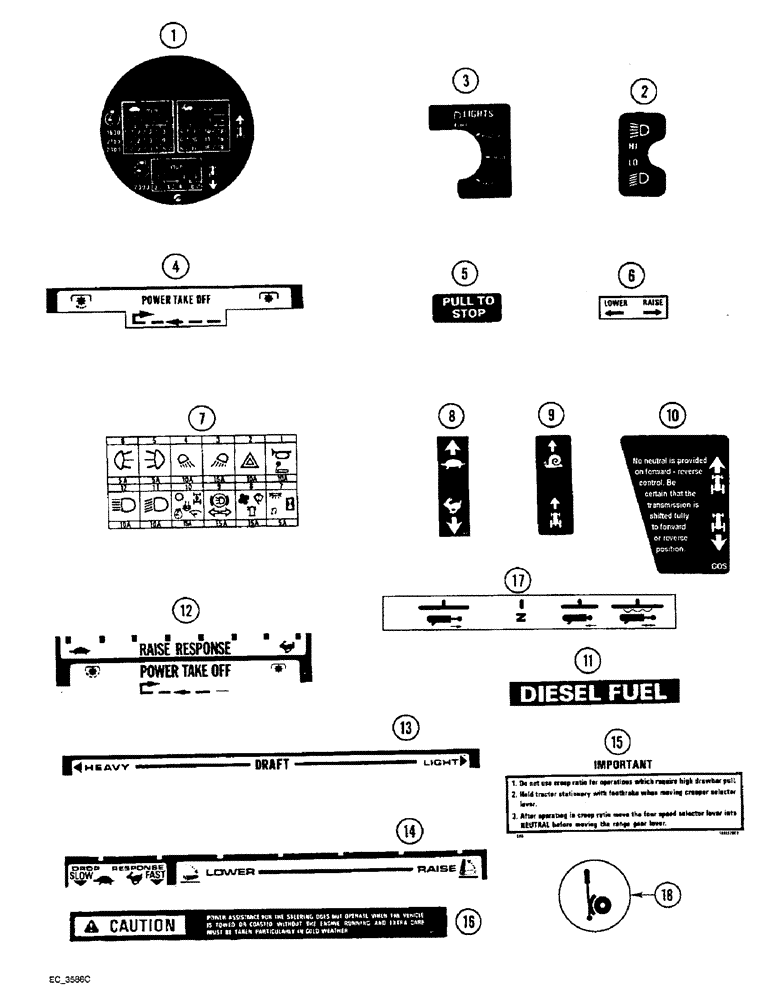

Запчасти Case IH 4240 (9-116) - DECALS (09) - CHASSIS/ATTACHMENTS

1

1287572C1

DECAL

- speed chart, mph (Used with 14.9, 16.9, 13.6 x 24, or 14.9 x 28 rear tires) (4210) (If fitted)

1шт.

1

1093093R1

DECAL

- speed chart, mph (Used with 16.9, 18.4 x 30 or 12.4 x 32, or 16.9, 18.4 x 34 or 12.4, 13.6 x 36 or 13.6, 15.5 x 38 rear tires) (4210) (If fitted)

1шт.

1

1343331C1

DECAL

- speed chart, mph (Used with 14.9 x 24, 16.9 x 24 rear tires) (4230/4240 only) (If equipped)

1шт.

1

1093095R1

DECAL

- speed chart, mph (Used with 16.9, 18.4 x 30 or 12.4 x 32, 16.9, 18.4 x 34 or 12.4, 13.6 x 36 or 13.6, 15.5 x 38 rear tires) (4230/4240) (If fitted)

1шт.

2

1273644C1

DECAL

DECAL - dimmer switch

1шт.

3

1265116C1

PRODUCT GRAPHIC

DECAL - light switch

1шт.

4

1536689C1

PRODUCT GRAPHIC

DECAL - IPTO guide (Order 1135102R1)

1шт.

5

1333014C1

DECAL

- fuel control

1шт.

6

537080R2

PRODUCT GRAPHIC

DECAL - auxiliary valve control

1шт.

7

129462A1

DECAL

- fuse box symbols (Without cab)

1шт.

7

128184A2

DECAL

- fuse box symbols (With cab)

1шт.

8

533592R1

PRODUCT GRAPHIC

DECAL - governor control

1шт.

9

1985097C2

DECAL

- creeper speed

1шт.

10

123616A1

DECAL

- forward and reverse

1шт.

11

321-2601

DECAL

- diesel fuel

1шт.

12

1135102R1

PRODUCT GRAPHIC

DECAL - IPTO, and raise response guide

1шт.

13

537664R1

PRODUCT GRAPHIC

DECAL - draft control guide

1шт.

14

537663R1

PRODUCT GRAPHIC

DECAL - drop response guide

1шт.

15

1985279C2

DECAL

- important - creep speed

1шт.

16

1135157R1

DECAL

- power, steering

1шт.

17

141000A1

DECAL

- lower/raise remote valve

1шт.

18

1537992C1

DECAL

- park brake lever (With cab)

1шт.
