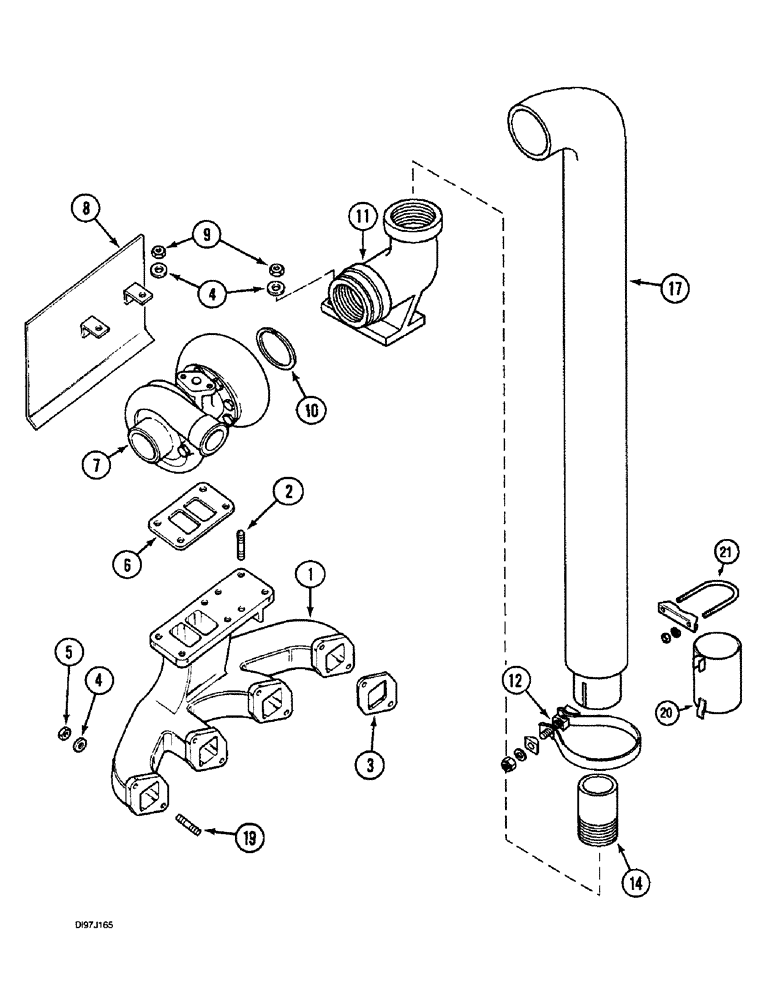

Запчасти Case IH 4240 (2-38) - VERTICAL EXHAUST, MODEL 4240 ONLY (02) - ENGINE

1

3228747R91

MANIFOLD

ASSEMBLY - exhaust, Includes: Ref. 2

1шт.

2

3228189R1

STUD

- exhaust manifold, 3/8 x 1-1/2 inch

8шт.

1967014C1

CYLINDER HEAD GASKET

- cylinder head, service, Includes: Ref. 3

1шт.

3

3132434R1

MANIFOLD GASKET,0.5mm Thk

- exhaust manifold

4шт.

4

396-21041

WASHER,10.31mm ID x 20.63mm OD x 2.26mm Thk

- flat, hardened, 13/32 x 13/16 x 3/32 inch

16шт.

5

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF

8шт.

6

3228634R2

MANIFOLD GASKET

- flange

1шт.

7

1967070C1

TURBOCHARGER

ASSEMBLY - engine (See Figure 2-46)

1шт.

8

1536550C2

BAFFLE

- heat

1шт.

9

232-4636

LOCK NUT,3/8"-24, GC

NUT, LOCK, 3/8"-24, GC

8шт.

10

702299C1

ASSEMBLY

RING - sealing

1шт.

11

136173A2

ELBOW

- turbo exhaust

1шт.

12

177813A1

CLAMP,65.9mm - 68.3mm

- tail, Serial Range: pipe-muffler

1шт.

14

139536A2

TUBE

PIPE - exhaust

1шт.

14

246683A1

TUBE,12-9/32" Length

PIPE - exhaust mounting, short (Version with lift-off muffler)

1шт.

14

246900A1

TUBE,12-9/32" Length

PIPE - exhaust mounting, long (Version with lift-off muffler)

1шт.

17

139140A1

MUFFLER

- vertical (Without cab)

1шт.

17

138162A1

MUFFLER

- vertical (With cab)

1шт.

17

251848A1

MUFFLER

- exhaust, short (Version with lift-off muffler)

1шт.

17

251845A1

MUFFLER

- exhaust, long (Version with lift-off muffler)

1шт.

19

3228189R1

STUD

- exhaust manifold, 3/8 x 1-1/2 inch

8шт.

20

252391A1

GUARD

SLEEVE - muffler (Version with lift-off muffler)

1шт.

21

1502294C1

CLAMP

- muffler (Version with lift-off muffler)

1шт.
