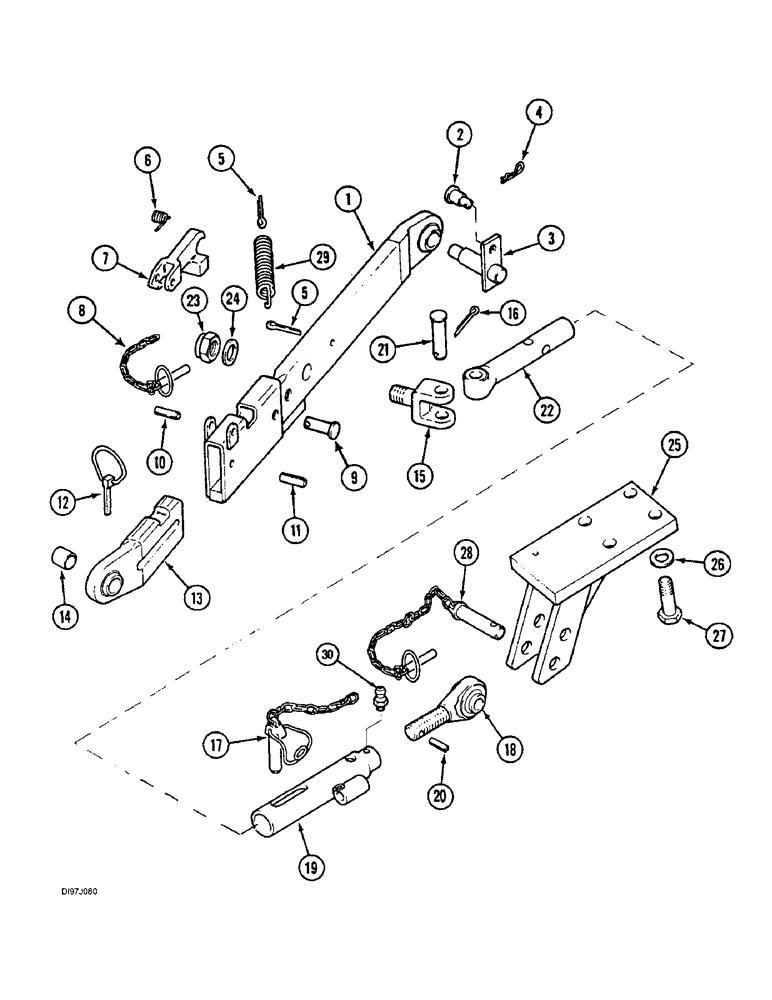

Запчасти Case IH 4240 (9-108) - THREE POINT HITCH, TELESCOPIC LOWER LINKS (09) - CHASSIS/ATTACHMENTS

1

124888A1

LOWER LINK

LINK ASSEMBLY - front section, left (CBM)

1шт.

1

124889A1

LOWER LINK

LINK ASSEMBLY - front section, right (CBM)

1шт.

2

3118063R2

PIN,28.57mm OD x 48.3mm L

- lock, link

2шт.

3

3118060R1

PIN

- lower link

2шт.

4

538406R1

COTTER PIN

PIN - quick attachable, lift link pivot

2шт.

5

432-2028

COTTER PIN,5/16" x 1 3/4"

Pin, Split (Cotter), 5/16" x 1 3/4"

4шт.

6

403024R1

SPRING

- latch return, coiled

2шт.

7

403023R1

LATCH

- lower link, rear section

2шт.

8

1982152C2

PIN ASSY.

PIN - left, link, chain

2шт.

1982154C2

CHAIN,Assembly, Lift Link

CHAIN - klik pin

1шт.

1982023C1

LINCH PIN,10.5mm OD

PIN - linch, with chain

1шт.

9

128716A1

PIVOT PIN,19.05mm OD x 89.9mm L

- levelling

2шт.

10

616252R1

LOCK PIN,3/8" x 2 1/8", Slotted

Pin, 3/8" x 2 1/8", Slotted

2шт.

11

38-33228

PIN,12.7mm OD x 44.45mm L, Coiled

2шт.

12

1328218C1

LINCH PIN,11mm OD

- quick attachable

2шт.

13

124892A1

END FITTING

LINK ASSEMBLY - rear, left (CBM)

1шт.

13

403020R2

END FITTING

LINK - rear, left, Serial Range: (Optional-124891A1)

1шт.

13

124892A1

END FITTING

LINK ASSEMBLY - rear, right (CBM)

1шт.

13

403020R2

END FITTING

LINK - rear, right, Serial Range: (Optional-124891A1)

1шт.

14

119575A1

SPACER

BUSHING - category II to I, 35 mm

2шт.

119307A2

STABILIZER

- telescoping (Order components), Includes: Ref. 15 - 22, Serial Range: -JJE0923757

2шт.

224249A2

UPPER LINK

STABILIZER - telescopic, Includes: Ref. 15 - 22, Start Serial: JJE0923758

2шт.

15

128825A2

CLEVIS

- stabilizer

1шт.

16

733-5040

COTTER PIN,M5 x 40

PIN, SPLIT (COTTER), M5 x 40

1шт.

17

128829A1

HITCH PIN

PIN ASSEMBLY - stabilizer

1шт.

18

128826A1

LIFT LINK END ASSY,M24 x 3

SOCKET ASSEMBLY - ball, Serial Range: -JJE0923757

1шт.

18

226077A1

LIFT LINK END ASSY,M24 x 3

SOCKET ASSEMBLY - stabilizer ball, Start Serial: JJE0923758

1шт.

19

128827A1

COLUMN JACKET,M24 x 3

TUBE ASSEMBLY - stabilizer, Serial Range: -JJE0923757

1шт.

19

226078A2

COLUMN JACKET,M24 x 3

TUBE ASSEMBLY - stabilizer, Start Serial: JJE0923758

1шт.

20

838-5526

LOCK PIN,M5 x 26, Slotted

Pin, Roll, M5 x 26, Slotted

1шт.

21

128824A1

PIN,24mm OD x 70mm L

- stabilizer (CBM)

1шт.

22

128828A1

TUBE

ROD - stabilizer, Serial Range: -JJE0923757

1шт.

22

226079A1

STEM

ROD - stabilizer, Start Serial: JJE0923758

1шт.

23

232-46114

LOCK NUT,7/8"-14, GC

NUT, LOCK, 7/8"-14, GC

1шт.

24

496-11094

WASHER,0.94" ID x 1.75" OD x 0.13" Thk

- flat, 15/16 x 1-3/4 x 1/8 inch, hardened

1шт.

25

119304A1

SUPPORT

BRACKET ASSEMBLY - stabilizer, left

1шт.

25

119306A1

SUPPORT

BRACKET ASSEMBLY - stabilizer, right

1шт.

26

396-21066

WASHER,16.66mm ID x 33.33mm OD x 4.27mm Thk

8шт.

27

326-1032

BOLT,Hex, 5/8" - 11 x 2", Gr 8

8шт.

28

122407A1

HITCH PIN

PIN ASSEMBLY - stabilizer

2шт.

29

1332053C2

SPRING

- restraining, tension (Replaces 1970961C1)

2шт.

30

219-87

LUBE NIPPLE,1/4" - 28 NPTF

NIPPLE, LUBE, 1/4"-28 x .56" lg, Self-Tap, Serial Range: -JJE0923757

1шт.
