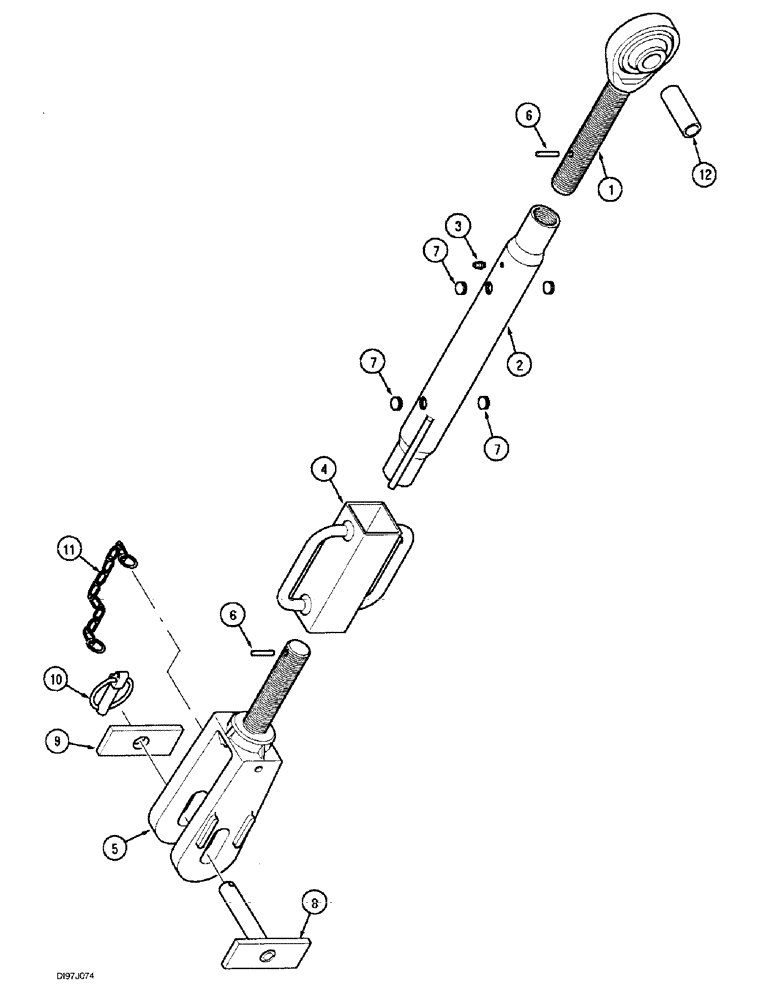

Запчасти Case IH 4240 (9-102) - THREE POINT HITCH, HEAVY DUTY LIFT LINKS, 27 MM (09) - CHASSIS/ATTACHMENTS

NSS

NOT SOLD SEPARAT

LINK ASSEMBLY - lower link, Includes: Ref. 1 - 12

2шт.

1

226113A1

LIFT LINK END ASSY,M27 x 2

ROD ASSEMBLY - lift link, upper

1шт.

2

226114A1

TUBE,M27 x 2

- lift link, turnbuckle

1шт.

3

219-14

LUBE NIPPLE,1/4" NPTF

FITTING - grease, straight, 1/4 drive type x 9/16 inch

1шт.

4

226115A1

HANDLE

- lift link, turnbuckle

1шт.

5

226116A1

FORK,M27 x 2

ASSEMBLY - lift link, lower 27 mm

1шт.

6

838-5528

LOCK PIN,M5 x 28, Slotted

PIN - spring, slotted, 5 x 28 mm

2шт.

7

1965426C1

PLUG

- cup

4шт.

8

226117A1

PIN

- lift link, lower

1шт.

9

226118A1

LARGE PLATE

PLATE - lift link pin, 1

1шт.

10

179891A1

PIN,7.5mm OD

PIN ASSEMBLY - retaining, Includes: Ref. 11 and 12

1шт.

11

1982154C2

CHAIN,Assembly, Lift Link

CHAIN - klik pin

1шт.

12

243053A1

BUSHING,15.95mm ID x 20mm OD x 50mm L

- lift link, upper

1шт.
