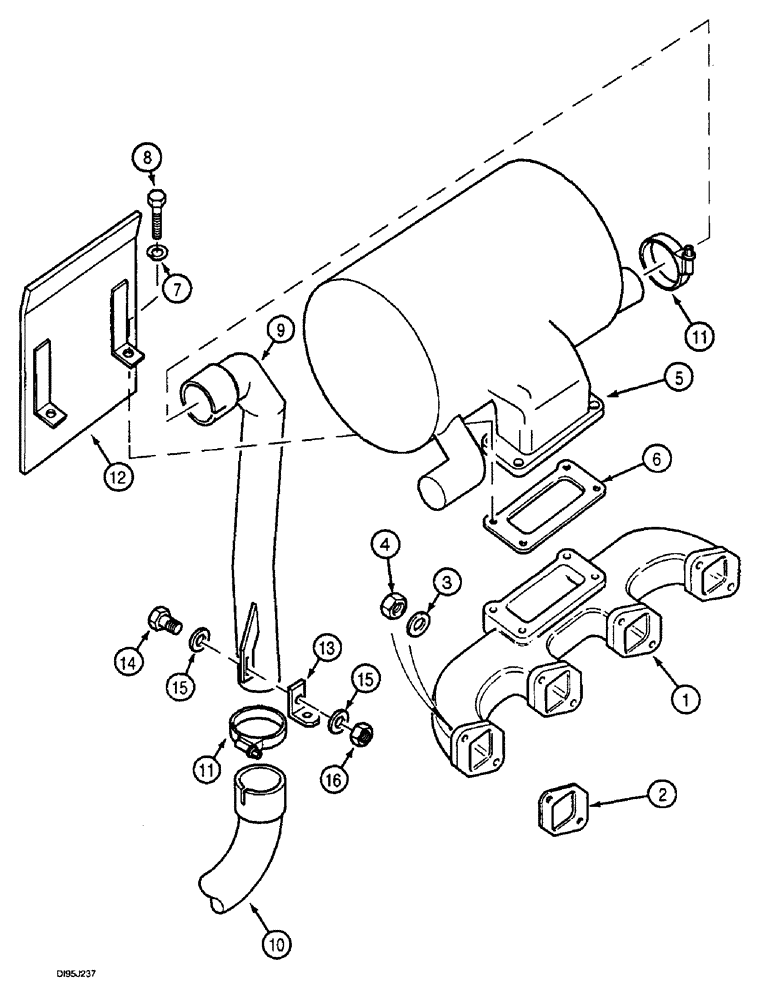

Запчасти Case IH 4240 (2-34) - DOWNSWEPT EXHAUST, MODEL 4230 (02) - ENGINE

1

3136066R12

MANIFOLD ASSY

MANIFOLD - exhaust

1шт.

2

3132434R1

MANIFOLD GASKET,0.5mm Thk

- exhaust manifold

1шт.

3

495-81129

WASHER,13/32" x 3/4" x .120"

- flat, 13/32 x 3/4 x 7/64 inch

1шт.

4

425-116

NUT,3/8" - 24, Gr 5

- hex, 3/8 inch NF

1шт.

5

190529A1

MUFFLER

- exhaust vertical downswept

1шт.

6

3136248R1

MANIFOLD GASKET,0.5mm Thk

- exhaust manifold

1шт.

7

92-11038

LOCK WASHER,3/8"

WASHER, LOCK, 3/8"

1шт.

8

413-616

BOLT,Hex, 3/8" - 16 x 1", Gr 5

- hex, 3/8 NC x 1 inch

1шт.

9

190530A1

TUBE

PIPE - exhaust vertical downswept

1шт.

10

191692A1

ELBOW

PIPE - tail vertical downswept

1шт.

11

214-2144

CLAMP,#44, 2.25"-2.56", T-Bolt

- T-bolt No. 44, 2.56 / 2.25 inch

1шт.

12

137666A1

PROTECTION PLATE

BAFFLE - heat, shield

1шт.

13

1806993C1

SUPPORT

BRACKET - breather tube clamp

1шт.

14

614-8020

BOLT,Hex, M8 x 1.25 x 20mm

- hex, full threads, 8 - 1.25 x 20 mm

1шт.

15

895-11008

WASHER,9mm ID x 16mm OD x 1.6mm Thk

- flat, 9 x 17 x 1.6 mm

1шт.

16

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10

1шт.
