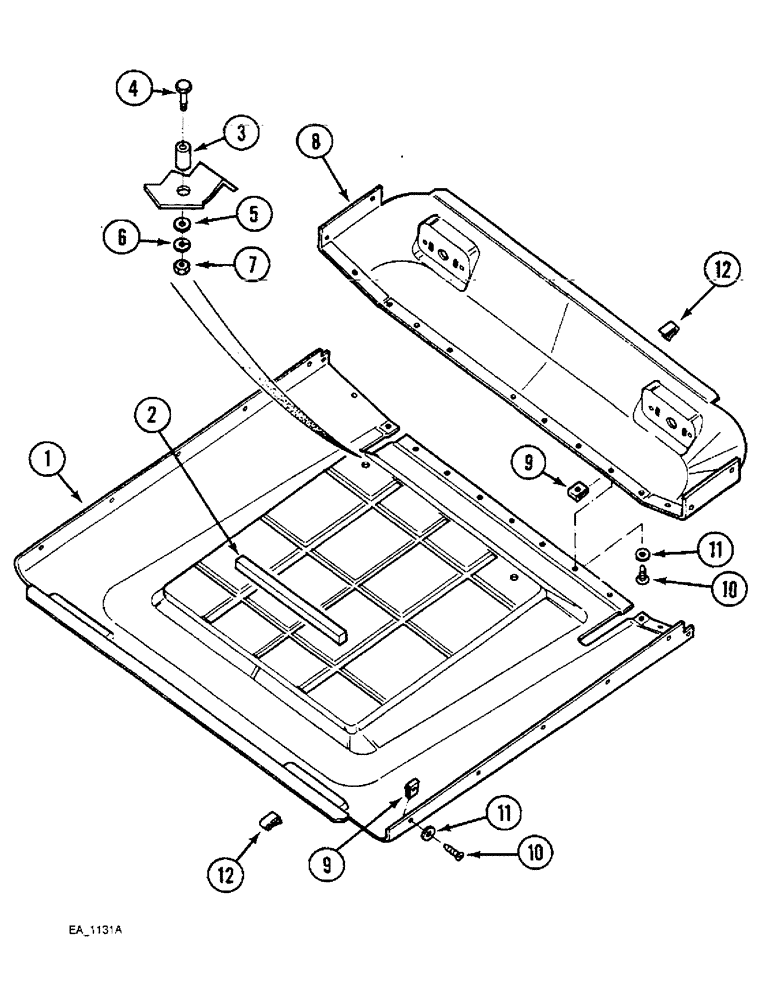

Запчасти Case IH 4240 (9-096) - ROLL OVER PROTECTION FRAME, TWO POST CANOPY HEADLINER TRIM (09) - CHASSIS/ATTACHMENTS

1

118381C1

PANEL

HEADLINER - front

1шт.

2

NSS

NOT SOLD SEPARAT

STRIP - damper, 15 inch (Order 2 x 73213C1, Serial Range: cut-length)

2шт.

73213C1

FILLING STRIP

STRIP - damper, 4 feet sold by the foot

1шт.

3

522204R1

SPACER,1/4" Pipe x 1 3/8"

- standard pipe, 1/4 x 1-3/8 inch

2шт.

4

828-6040

BOLT,Hex, M6 x 1 x 40mm, Cl 10.9

- hex, 6 x 40 mm

2шт.

5

495-21031

WASHER,1/4"

- flat, 5/16 x 3/4 x 1/16 inch

2шт.

6

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

2шт.

7

825-1406

NUT,M6, Cl 8

2шт.

8

118359C1

PANEL

- headliner

1шт.

9

684322R1

SPRING NUT

- spring, U-Type spring

25шт.

10

260-14512

SCREW,Cross Pan Hd, #10 x 3/4"

- self-tapping, pan Phillips, No. 10-16 x 3/4 inch

25шт.

11

495-31022

WASHER,#10

25шт.

12

118515C1

CLIP

- U-Type (Canopy with sheared edges)

18шт.
