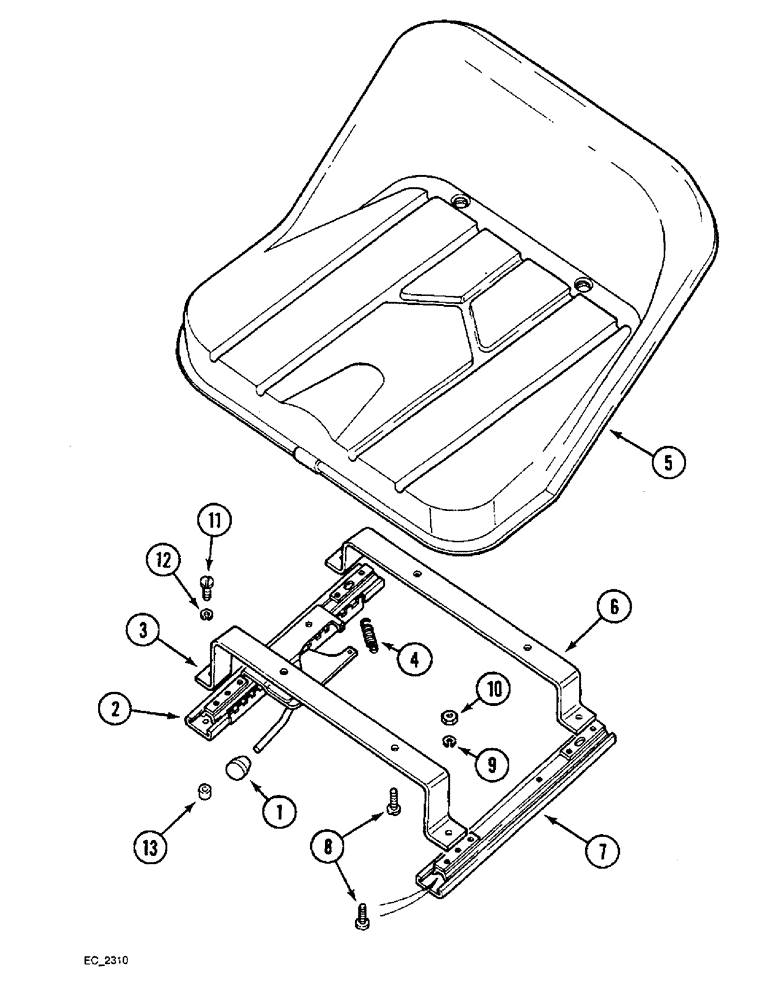

Запчасти Case IH 4240 (9-084) - STATIC SEAT, TRACTOR WITHOUT CAB (09) - CHASSIS/ATTACHMENTS

3121641R91

SEAT ASSY.

SEAT ASSEMBLY - static, Includes: Ref. 1 - 10

1шт.

1

3168593R1

BUTTON

KNOB - seat adjustment handle, 6 x 1 mm

1шт.

2

232828A1

PACKAGE

KIT - seat adjuster

1шт.

3

3121642R1

SUPPORT

BRACKET - front mounting

1шт.

4

538694R1

SPRING

- return

1шт.

5

538026R1

SEAT ASSY.

SEAT ASSEMBLY - pan

1шт.

6

3121643R1

SUPPORT

BRACKET - rear mounting

1шт.

7

232828A1

PACKAGE

KIT - seat adjuster

1шт.

8

440-13112

SCREW,Cross Pan Hd, 5/16"-18 x 3/4"

- machine, pan Phillips, 5/16 NC x 3/4 inch

12шт.

9

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

8шт.

10

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

4шт.

11

440-13120

SCREW,Cross Pan Hd, 5/16"-18 x 1 1/4"

- pan head Phillips, 5/16 NC x 1-1/4 inch

4шт.

12

892-11012

LOCK WASHER,M12

WASHER, LOCK, M12

4шт.
