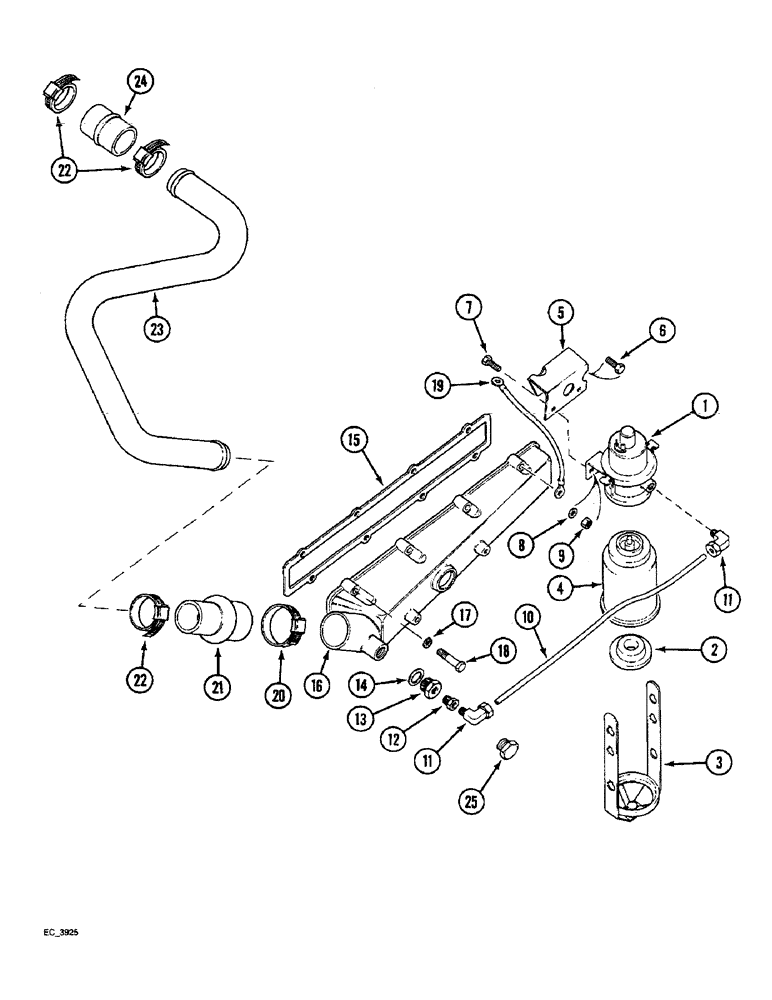

Запчасти Case IH 4240 (2-32) - ETHER STARTING AND INTAKE MANIFOLD (02) - ENGINE

1

185552A2

SOLENOID

ASSEMBLY - ether injection, Includes: Ref. 2 and 3

1шт.

2

395686R1

GASKET

- injector solenoid, 15/64 inch diameter

1шт.

3

D77648

BAIL

HANGER - ether can

1шт.

4

385064R1

START SPRAY FLUID

FLUID - ether starting (Order ZAD3 from SDC)

1шт.

5

84706C1

SUPPORT

BRACKET - injection mounting

1шт.

6

413-610

BOLT,Hex, 3/8" - 16 x 5/8", Gr 5

2шт.

7

413-514

BOLT,Hex, 5/16" - 18 x 7/8", Gr 5

2шт.

8

492-11031

LOCK WASHER,5/16"

WASHER, LOCK, 5/16"

2шт.

9

425-105

NUT,5/16"-18, G5

- hex, 5/16 inch NC

2шт.

10

NSS

NOT SOLD SEPARAT

PIPE - injection feed, 16-1/8 inch (Cut from 995059R1)

1шт.

995059R1

TUBE

PIPE - bulk length, 20 foot roll

1шт.

11

140304

ELBOW

- 90 degree, 1/8 inch OD tube

2шт.

12

269635R91

NOZZLE CAP

NOZZLE - starting fluid

1шт.

13

3116081R1

JET

ADAPTOR - ether nozzle

1шт.

14

933945R1

SEALING RING,M23 x 28 x 2.5

RING - packing, intake manifold

1шт.

15

3055398R2

MANIFOLD GASKET

- intake manifold

1шт.

16

3138825R1

MANIFOLD

- intake

1шт.

16

191962A1

MANIFOLD

- intake (4240 downswept)

1шт.

17

3218395R1

BELLEVILLE WASHER,8.199mm ID x 16mm OD x 0.9mm Thk

Lock (5/16"), Intake manifold M8.2 ID x 16 OD x .9 Thk

8шт.

18

413-524

BOLT,Hex, 5/16" - 18 x 1-1/2", Gr 5

- hex, 5/16 NC x 1-1/2 inch, intake manifold

8шт.

19

3401412R1

CABLE

- ground, intake manifold

1шт.

20

214-1544

HOSE CLAMP,#44, 2.31" - 3.25", Type F Worm, W/ Liner

CLAMP - hose, Type F No. 44 liner (4240), intake manifold

1шт.

21

3228560R1

LARGE HOSE

HOSE - intake manifold (4240)

1шт.

22

214-1532

HOSE CLAMP,#32, 1.56" - 2.5", Type F Worm, W/ Liner

(4240), Intake manifold #32, 1.56/2.50 Type F Worm, W/liner

3шт.

23

1806570C1

LINE

PIPE - manifold to turbocharger (4240), intake

1шт.

23

188672A1

TUBE,174, 136 mm Length

PIPE - manifold to turbocharger (4240 downswept), intake

1шт.

24

670040C2

HOSE,1.96" ID x 2.50", SAE J200

Turbocharger (4240), Intake Manifold 1.96" ID x 2.50", SAE J200

1шт.

25

3136229R1

PLUG,7/8" - 14

- closing, intake manifold

1шт.
