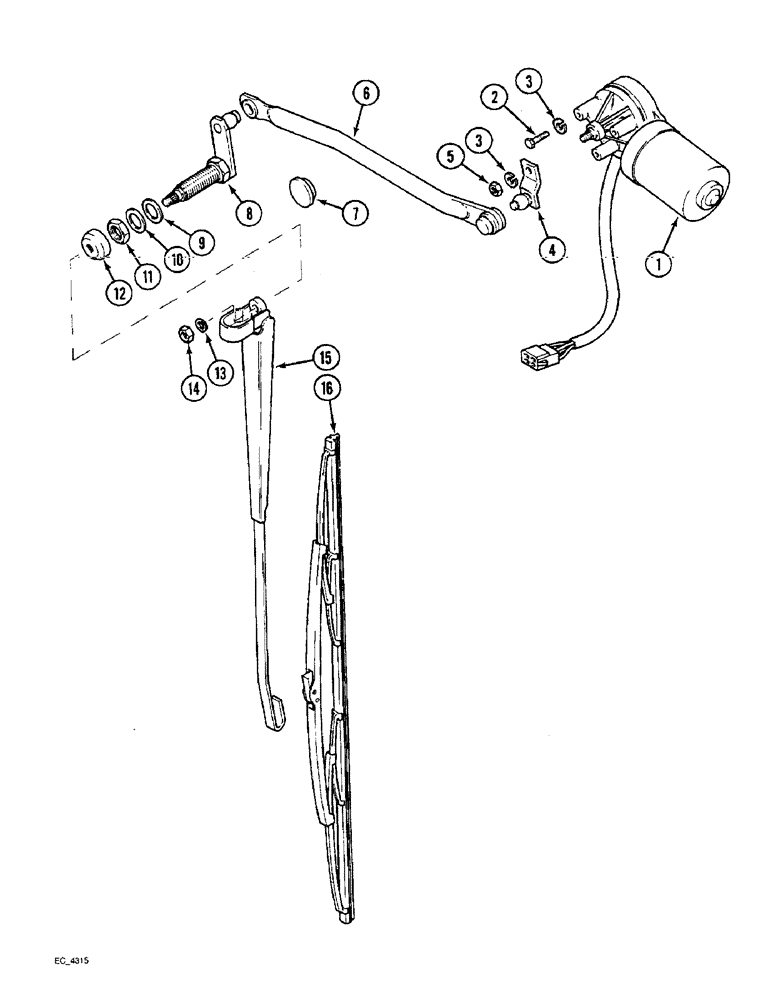

Запчасти Case IH 4240 (9-076) - CAB, WINDSHIELD WIPER UNIT, BOSCH (09) - CHASSIS/ATTACHMENTS

1

137203A1

WIPER MOTOR

MOTOR - windshield wiper

1шт.

2

614-6012

BOLT,Hex, M6 x 1 x 12mm, Cl 8.8, Full Thd

3шт.

3

892-11006

LOCK WASHER,M6

WASHER, LOCK, M6

4шт.

4

137204A1

LEVER

- wiper actuating

1шт.

5

825-1406

NUT,M6, Cl 8

1шт.

6

137205A1

WIPER ARM

ARM - wiper actuating

1шт.

7

3234750R1

PLUG

- blanking

1шт.

8

137206A1

PIVOT

- wiper actuating

1шт.

9

137212A1

WASHER

- leather, 16 mm

1шт.

10

137211A1

WASHER

- 16 mm

1шт.

11

137210A1

NUT

- hex, 16 mm

1шт.

12

137209A1

PROTECTOR

COVER - linkage

1шт.

13

892-11008

LOCK WASHER,8mm ID

WASHER, LOCK, M8

1шт.

14

829-1408

NUT,Hex, M8 x 1.25, Cl 10.9

- hex, 8 mm - 1.25, class 10

1шт.

15

137207A1

WIPER ARM

ARM - wiper

1шт.

16

3234746R91

WIPER BLADE

BLADE - wiper

1шт.

17

934283R1

WASHER,M17 ID x 30 OD x 3 Thk

1шт.
